NZXT H510 Compact ATX Mid-Tower

$69.99

(8 customer reviews)
Last updated on February 16, 2025 9:20 am
0
Add to compare

Highest Price
$69.99 Newegg.com
February 1, 2025
Lowest Price
$69.99 Newegg.com
February 1, 2025
Current Price
$69.99 Newegg.com
February 16, 2025
Since February 1, 2025
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Didn't find the right price? Set price alert below

Set Alert for Product: NZXT H510 - Compact ATX Mid-Tower PC Gaming Case - Front I/O USB Type-C Port - Tempered Glass Side Panel - Cable Management System - Water-Cooling Ready - Steel Construction - Black, CA-H510B-B1 - $69.99

Specification: NZXT H510 Compact ATX Mid-Tower

Product
Brand

Model

CA-H510B-B1

Main
Color

Charcoal

Specification
Best Seller Ranking

#97 in Computer Cases

Internal 2.5 Drive Bays

2+1

Features

With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PCThe clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.Two Aer F120mm fans are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.

Weight

14.55 lbs.

Dimensions H x W x D

18.11" x 8.27" x 16.85" w, feet17.13" x 8.27" x 16.85" w/o feet

Max PSU Length

150 mm

Max CPU Cooler Height

165 mm

Max GPU Length

381 mm

Radiator Options

Front: 2 x 140mm or 2 x 120mm with PullRear: 1 x 120mm

Fan Options

Front: 2 x 120mm or 2 x 140mm fanTop: 1 x 120mm (1 x 120mm Aer F120 Case Version included) or 1 x 140mm fanRear: 1 x 120mm fan (1 x 120mm Aer F120 Case Version included)Fan Specs: Aer F120 (Case Version)Speed: 1200 +/- 200 RPMAirflow: 50.42 CFMCFM Noise: 28 dBABearing: Rifle Bearing

Front Ports

1 x USB 3.0 Type-A, 1 x USB 3.1 Gen 2 Type-C, 1x Headset audio Jack

Expansion Slots

7

Internal 3.5 Drive Bays

2+1

Dust Filters

Bottom, Front

Side Panel Window

Yes

Motherboard Compatibility

ATX, Micro ATX, Mini ITX

Power Supply Mounted

Bottom

With Power Supply

No

Case Material

SGCC, Tempered Glass

Type

ATX Mid Tower

Series

H Series H510

Date First Available

March 18, 2022

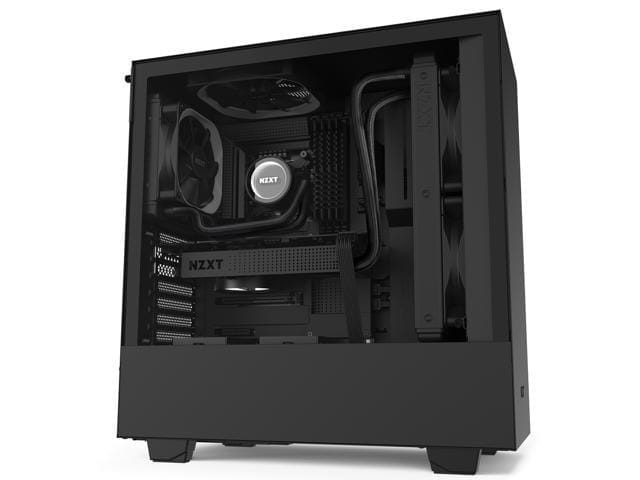

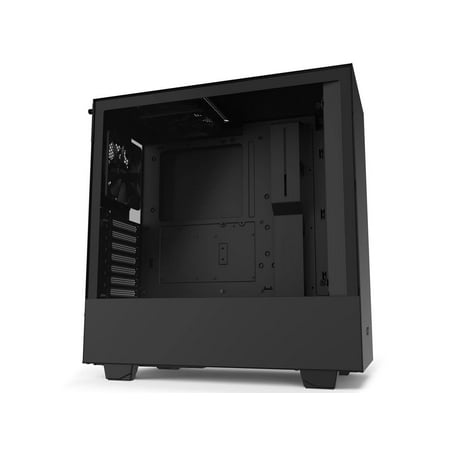

Photos: NZXT H510 Compact ATX Mid-Tower

8 reviews for NZXT H510 Compact ATX Mid-Tower

4.9 out of 5
7
1
0
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Mannaneel P.

    Pros: – One of the most elegant PC cases that are currently on the market. – Cable management is very easy and extremely adaptive; however, modified cables with individually sleeved cables is strongly advised. – If you can get the Smart Case feature to work properly, then you can consider this feature a “pro”. I had no issues, so YMMV. – It terms of airflow, this case is adequate. It provides enough intake and exhaust airflow so that at stock clocks (CPU & GPU), you definitely shouldn’t run…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Anonymous

    Pros: I had previously built a PC with the NZXT S340 for my brother, but decided to go with this newer model for myself, so a lot of these points are relative to the older model. Overall, the H500 is a straight-up upgrade as far as I’m concerned. – First of all, it looks GREAT. I don’t usually care about PC aesthetics, but the case is very modern, sleek, and minimal, which makes it a great fit for an office. – Having the power button and USB/audio inputs on top of the case is really…

    Helpful(0) Unhelpful(0)You have already voted this
  3. Ruochen L.

    Pros: – It looks beautiful, I am putting it on my office desk and getting a lot of compliments. – The non-i version at 80 dollars is very well priced. – The little stud included to support the GPU is nice, avoids GPU sag. – GPU temperature is fine, despite being so close to the PSU shroud. (see more in con) Cons: – Panels are a bit on the thin side. I came from fractal design cases with thicker panels and sound-dampening materials built-in. So this may be a subjective thing. – If you want to…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Anonymous

    Pros: -Built like a tank. Steel inside and out. Real glass side panel. -Very aesthetically pleasing. Beautifully minimal. -Great price to quality ratio. Other cases in this price range pale in comparison. -Can fit two 140mm fans in the front. -Dust filters on the front intake area, top exhaust, and bottom PSU vent. Great for pet owners. -The front fan mount bracket is removable, making fan or radiator installation a breeze. -Cable management is very easy due to the metal “stripe” inside and…

    Helpful(0) Unhelpful(0)You have already voted this
  5. Anonymous

    Pros: I love the glass panel, showcases my build nicely. The PSU shroud is a nice touch, cable management options are great, panels are easy to remove, and it has good dust filtration. My RTX 2070 just barely fit with cables pressed against the glass, but it’s a giant card and there was more than enough room for my all air cooled build. 2x USB 3.0 on the front is nice too! Cons: I can see all the dust in my computer now.

    Helpful(0) Unhelpful(0)You have already voted this
  6. Joel H.

    Pros: Spacious interior which will fit any cooling/ GPU(s)/ ect. you want into it. It also looks great, very sleek and modern. My largest issue with mid-tower cases are that they have a really hard time mounting AIO water coolers. Most mid-towers that you try to install a AIO in will either hit the RAM or the CPU power cable, or, for rear mounted radiators, will bump into the top case fans. This case is a larger mid tower and has none of these problems. This is also a literally solid case,…

    Helpful(0) Unhelpful(0)You have already voted this
  7. Chad D.

    Pros: -Extremely easy to build: This case has so many features that allow a simplistic build experience. -Modularity: Items like the SSD cages mount in 500+ different positions…no lie. The PSU cover has little holes in which the SSD sled pops into. This allows for extremely flexible mounting positions to suite different cable lengths or style preferences. -Cooling: While I like the included case fans (4 total) I invested in Noctua fans. I have 2 radiators for my custom cooling loop and…

    Helpful(0) Unhelpful(0)You have already voted this
  8. Anonymous

    Pros: –Very well built; strong, heavy-duty materials and quality manufacturing. –Beautiful design –Excellent cable management –Pre-installed mobo standoffs, including one “nub” standoff to hold the board in place while you screw it in. –Good sturdy HDD cage can hold 3 full-size HDDs. –2 mounts for 2.5″ SATA SSDs on the reverse side. –2 included 120mm fans work great (though they’re only 3 pin). –Dust filters on all intakes are a nice touch. –Awesome value at this price Cons: None…

    Helpful(0) Unhelpful(0)You have already voted this
