MSI MEG Z690I UNIFY DDR5

$372.70

(5 customer reviews)
Last updated on April 2, 2025 4:20 pm
0
Add to compare

Highest Price
$372.70 Amazon.com
January 17, 2025
Lowest Price
$372.70 Amazon.com
January 17, 2025
Current Price
$372.70 Amazon.com
April 2, 2025
Since January 17, 2025
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Didn't find the right price? Set price alert below

Set Alert for Product: MSI MEG Z690I Unify Gaming Motherboard (Mini ITX, 12th Gen Intel Core, LGA 1700 Socket, DDR5, PCIe 5, 2.5G LAN, M.2 Slots, Wi-Fi 6E) - $372.70

Specification: MSI MEG Z690I UNIFY DDR5

Product
Brand

Model

MEG Z690I UNIFY

Product Type

Intel

Specification
Best Seller Ranking

#67 in Intel Motherboards

SATA 6Gbs

4 x SATA 6Gb/s

Form Factor

Mini ITX

Back IO Ports

1 x Clear CMOS Button1 x DisplayPort1 x HDMI1 x LAN (RJ45)2 x Antenna Bracket2 x Mini DisplayPort Input (for Thunderbolt passthrough)2 x Thunderbolt 42 x USB 3.2 Gen 24 x USB 3.2 Gen 13 x Audio Jacks

Bluetooth

Bluetooth 5.2

Wireless LAN

Intel Wi-Fi 6E

Max LAN Speed

10/100/1000/2500Mbps

LAN Chipset

Intel I225-V

Audio Channels

7.1 Channels

Audio Chipset

Realtek ALC4080 Codec

Intel Optane Ready

Yes

M.2

3 x M.2 slots (Key M):M2_1 slot (from CPU):- Supports up to PCIe 4.0 x4- Supports 2280 storage devicesM2_2 slot (from Z690 chipset):- M2_2 supports up to PCIe 3.0 x4- Supports up to SATA 6Gb/s- Supports 2280 storage devicesM2_3 slot (from Z690 chipset):- M2_3 supports up to PCIe 4.0 x4- Supports 2280 storage devices- Intel Optane Memory

PCI Express 5.0 x16

1 x PCI Express 5.0 x16

Channel Supported

Dual Channel

Memory Standard

DDR5 6800+ (OC)

Number of Memory Slots

2x288pin (DDR5)

Onboard Video Chipset

Supported only by CPU with integrated graphic

Chipset

Intel Z690

Date First Available

January 14, 2022

Max Memory Supported

64GB

CPU Socket

LGA 1700* Dedicated LGA1700 mounting bracket is required.

CPU Support

Celeron Processors, Supports 12th Gen Intel Core ProcessorsSupports Intel Pentium Gold

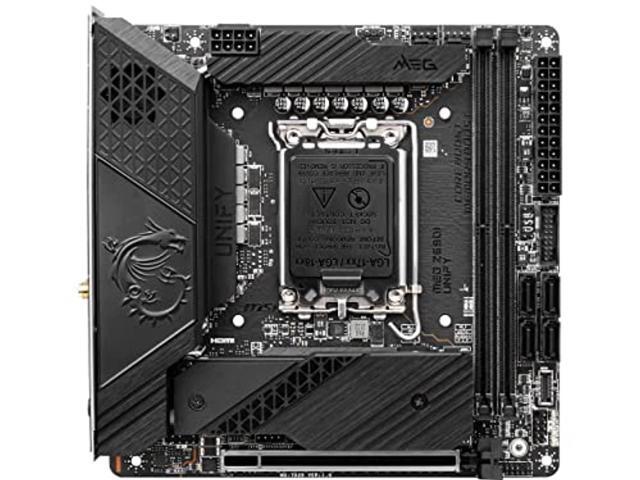

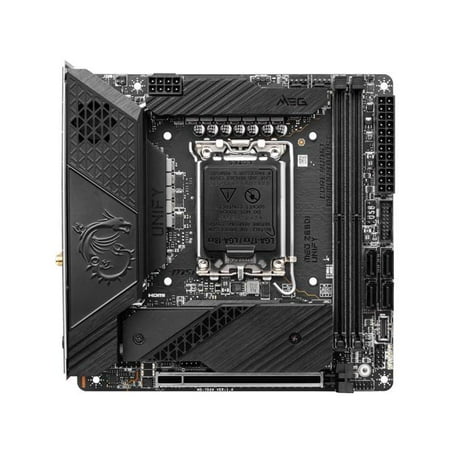

Photos: MSI MEG Z690I UNIFY DDR5

5 reviews for MSI MEG Z690I UNIFY DDR5

4.6 out of 5
4
0
1
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Anonymous

    Pros: -Great layout and cool running powerful VRM -Far better CPU heatsink compatibility than Asus/Gigabyte models due to lower profile M.2 heatsink stack. You can opt to remove the top M.2 heatsink all together and either go naked or apply a very low profile heatsink to further enhance clearance for some lower profile coolers like the Noctua L12. -3x M.2 slots -Ran DDR5 CL36 6000 XMP out the box with original 3 month old bios no problem and OC’d to CL32 6400 easily -3x fan headers…

    Helpful(0) Unhelpful(0)You have already voted this
  2. El Narnia

    Pros: best board for sff. The heatsink of the M.2 is low that allows you to put any without a cooler without problems! I was waiting for this board.. Completely excellent temperatures Cons: None! Overall Review: Best board right now!

    Helpful(0) Unhelpful(0)You have already voted this
  3. Michael D.

    Pros: -Good support of Noctua CPU coolers -3 M.2 SSD slots -PCIe Gen 5 support for future cards -High frequency support for DDR5 for future upgrade -Thunderbolt passthrough of GPU outputs Cons: None Overall Review: The MSI MEG Z690I Unify is a great choice for a motherboard if you are planning to build in a smaller case. It is able to fit a NH-D15 CPU cooler, which is more than can be said of most of the other mATX and ITX motherboards currently available. There is plenty of clearance…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Patrick H.

    Pros: This is by far the best Z690I motherboard available. I had built my PC with a different brand Z690I motherboard, which was the only one available at first release of the 12th gen chips. The other brand motherboard was not good at all – it took 25 seconds for startup, TB4 ports would not recognize my device, DDR5 was giving startup problems… This MSI Z690I is awesome. It starts up in 15 seconds from initial press of the power button to the Windows login screen. Fully supports my TB4…

    Helpful(0) Unhelpful(0)You have already voted this
  5. douglas c.

    Pros: 3 M.2 slots Decent DDR5 support Gen 2 front usb-c almost fast post times Cons: 1 rgb header expensive software Overall Review: I usually go with the Asrock stuff due to their fast post times, but availability was a problem. So I tried this board due to past MSI boards posting quickly for me. With all the tweaks I know best post time for this board was 8.6 secs. which was ok but of course as other users have noticed, Intel has done something to their boards which causes a delay in…

    Helpful(0) Unhelpful(0)You have already voted this
