MSI MAG X570S TOMAHAWK MAX

$199.99

(8 customer reviews)
Last updated on November 8, 2024 9:51 am
0
Add to compare

Highest Price
$199.99 Amazon.com
May 16, 2024
Lowest Price
$199.99 Amazon.com
May 16, 2024
Current Price
$199.99 Amazon.com
November 8, 2024
Since May 16, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: MSI MAG X570S Tomahawk WiFi Motherboard (AMD AM4, DDR4, PCIe 4.0, SATA 6Gb/s, M.2, USB 3.2 Gen 2, AC Wi-Fi 6, HDMI, ATX) - $199.99

Specification: MSI MAG X570S TOMAHAWK MAX

Product
Brand

Model

MAG X570S TOMAHAWK MAX WIFI

Product Type
Type

AMD

Specification
Best Seller Ranking

#29 in AMD Motherboards

Other Connectors

1 x 4-pin CPU fan connector1 x 4-pin water-pump connector4 x 4-pin system fan connectors1 x Front panel audio connector2 x System panel connectors1 x Chassis Intrusion connector1 x TPM module connector1 x Serial port connector1 x Chassis Intrusion connector

Audio Channels

7.1 Channels

LAN Chipset

Realtek 8125B

Max LAN Speed

10/100/1000/2500Mbps

Wireless LAN

Intel Wi-Fi 6E AX210802.11a/b/g/n/ac/ax

Bluetooth

Bluetooth 5.2

Back IO Ports

1 x HDMI1 x LAN (RJ45)1 x PS/2 Keyboard/Mouse Combo2 x USB 2.0/1.12 x USB 3.2 Gen 1 Type-A1 x USB 3.2 Gen 2 Type-C3 x USB 3.2 Gen 2 Type-AFlash BIOS ButtonWi-Fi Antenna1 x Optical S/PDIF Out5 x Audio Jacks

Onboard Video Chipset

Supported only by CPU with integrated graphic

Onboard USB

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)1 x USB 3.2 Gen 2 10Gbps Type-C port

Form Factor

ATX

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector

Windows 11

Supported

Features

Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processorsSupports DDR4 Memory, up to 5100(OC) MHzPremium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connectionLightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDsAUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experienceMulti-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire

Audio Chipset

Realtek ALC4080

SATA RAID

0/1/10

M.2

2 x M.2 slots (Key M):- Support up to PCIe 4.0 for AMD Ryzen 5000 Series and 3000 Series desktop processors- Support up to PCIe 3.0 for AMD Ryzen 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor- Supports up to SATA 6Gb/sM2_1 slot (from Processor) – Support 2280/22110 storage devicesM2_2 slot (from AMD X570 Chipset) – Supports 2242/2260/2280 storage devices

SATA 6Gbs

6 x SATA 6Gb/s

PCI Express x1

2 x PCIe 3.0 x1

PCI Express 4.0 x16

2 x PCI Express 4.0 x16** Actual support may vary by CPU.

Buffer Supported

Un-buffered

ECC Supported

Non-ECC

Channel Supported

Dual Channel

Memory Standard

2133, 2400, 2667, 2800, 2933, 3000, 3066, DDR4 3200

Number of Memory Slots

4x288pin (DDR4)

Chipset

AMD X570

CPU Socket Type

AM4

Date First Available

July 23, 2021

CPU Type Support

2000 Series and 2000 G-Series processors** Please go to msi.com to get the newest support status as new processors are released., 3000 G-Series, 3000 Series, 4000 G-Series, 5000 G-Series, Supports AMD Ryzen 5000 Series

Max Memory Supported

128GB

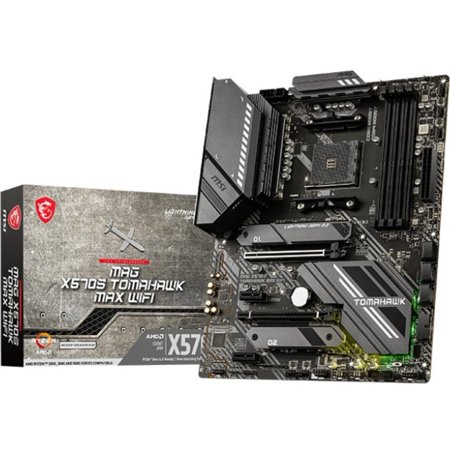

Photos: MSI MAG X570S TOMAHAWK MAX

8 reviews for MSI MAG X570S TOMAHAWK MAX

4.6 out of 5
6
1
1
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Mark M.

    Pros: Motherboard works fine with Ryzen 5 5600x. Delivered promptly. Installed with no problems! Overall Review: Definitely recommend to anyone looking for an X570 motherboard!

    Helpful(0) Unhelpful(0)You have already voted this
  2. adam j.

    Pros: The integrated graphics using AMD 5700g with this MB works amazing! Overall Review: I would definitely recommend this to all my friends, great price.

    Helpful(0) Unhelpful(0)You have already voted this
  3. Anonymous

    Overall Review: I just recently installed this into my new pc I was building, and as I opened the box I was very satisfied. It came in great condition, it looked really cool. I got some additional items in the box which is always a plus. The motherboard itself was very simple to install, and I was able to fit everything I needed on it. Highly recommend.

    Helpful(0) Unhelpful(0)You have already voted this
  4. Sarah

    Pros: Easy to work with as long as you know what you are doing. Held up to my screwdriver constantly falling apart onto it. USB 3.0 Front I/O port held up to multiple insertions and removals. Comes with SATA Cables because i need SATA Cables Cons: Had to change a setting in the BIOS/UEFI to actually get Windows onto the M.2 Drive. A little bit sparse when it comes to actual documentation, most of it is legal stuff and post-purchase marketing Overall Review: Good, but i noticed some odd details

    Helpful(0) Unhelpful(0)You have already voted this
  5. Kyle

    Pros: Love this motherboard. Paired it with a Ryzen 5 5600x. Compatible out of the Box, no bios update needed. Build went smooth with no hiccups. Runs very quiet and stays cool. Highly recommend this motherboard. Ive had it for about a month now. Cons: None so far Overall Review: 5/5 would recommend

    Helpful(0) Unhelpful(0)You have already voted this
  6. Anonymous

    Overall Review: Decent board, was poorly packed and arrived damaged.

    Helpful(0) Unhelpful(0)You have already voted this
  7. Larry B.

    Cons: their web site is bad can’t even register my board terrible format where did you buy your board well the drop down is empty the want a 3 number or letters, they told me it could be found by the 24 pin nothing it might be under the mother board I’m not taking out the board for that Overall Review: dont know yet hopefully the product will be better than my experience with the technicalities….

    Helpful(0) Unhelpful(0)You have already voted this
  8. James D

    Pros: Easy to swap over came with everything needed in box came with some stickers Cons: listing says “ships from Canada” but mine came out of the US, not the boards fault, for that I blame Newegg Overall Review: I had a MSI X570 pro carbon wifi and wanted to put in a better CPU and not worry about cooling so bought this so I could use a Ryzen 7. works fine, temps are nice and cool. The swap over was easy and started up great without having to do anything with the bios. Highly recommend.

    Helpful(0) Unhelpful(0)You have already voted this
