MSI MAG X570 TOMAHAWK

$249.00

(8 customer reviews)
Last updated on November 8, 2024 6:59 am
0
Add to compare

Highest Price
$249.00 Newegg.com
October 19, 2024
Lowest Price
$174.00 eBay
November 8, 2024
Current Price
$249.00 Newegg.com
November 8, 2024
Since October 19, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: MSI MAG X570 TOMAHAWK WIFI AM4 AMD X570 SATA 6Gb/s ATX AMD Motherboard - $249.00

Specification: MSI MAG X570 TOMAHAWK

Product
Brand

Model

MAG X570 TOMAHAWK WIFI

Product Type
Type

AMD

Specification
Best Seller Ranking

#13 in AMD Motherboards

Onboard Video Chipset

Supported only by CPU with integrated graphic

Audio Channels

7.1 Channels

LAN Chipset

Realtek 8125B

Max LAN Speed

10/100/1000/2500Mbps

Wireless LAN

Intel Wi-Fi 6 AX200802.11 a/b/g/n/ac/ax

Bluetooth

Bluetooth 5.1

Back IO Ports

1 x HDMI1 x LAN (RJ45)1 x PS/2 Keyboard/Mouse Combo1 x USB 3.2 Gen 2 Type-C3 x USB 3.2 Gen 2 Type-A2 x USB 3.2 Gen 1 Type-A2 x USB 2.0/1.11 x Optical S/PDIF Out5 x Audio JacksFlash BIOS buttonWireless, Bluetooth

Audio Chipset

Realtek ALC1200

Onboard USB

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)1 x USB 3.2 Gen 2 10Gbps Type-C Port

Form Factor

ATX

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector

Windows 11

Supported

Features

Supports AMD Ryzen 5000 Series, 2nd and 3rd Gen AMD Ryzen, Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socketSupports DDR4 Memory, up to 4600 MHzLightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen 2MYSTIC LIGHT: 16.8 million colors, 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED stripFrozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumersSet Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connectors, Game Boost, DDR4 BoostAUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experienceDragon Center: A brand new software which integrates all MSI tools like GAME MODE, LIVE UPDATE, AMBIENT LINK with user friendly user interface

Other Connectors

1 x 4-pin CPU fan connector1 x 4-pin water-pump connector4 x 4-pin system fan connectors1 x Front panel audio connector2 x System panel connectors1 x TPM module connector1 x Serial port connector1 x Clear CMOS jumper1 x Chassis Intrusion connector2 x 4-pin RGB LED connectors2 x 3-pin RAINBOW LED connectors4x EZ Debug LEDs1 x TBT connector *1 x RTD3 connector* Thunderbolt card needs to support RTD3.

SATA RAID

0/1/10

Channel Supported

Dual Channel

M.2

2 x M.2 slots (Key M): *M2_1 slot (from AMD Processor):Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen, Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)Supports 2242/2260/2280/22110 storage devicesM2_2 slot (from AMD X570 Chipset):Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen, Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)Supports SATA 6Gb/sSupports 2242/2260/2280 storage devices* The speeds may vary for different devices.

CPU Socket Type

AM4

Chipset

AMD X570

Number of Memory Slots

4x288pin (DDR4)

Memory Standard

1866 by JEDEC, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors, 2133, 2400, 2667, 2667 (2nd Gen AMD Ryzen Processors, 2667 (3rd Gen AMD Ryzen Processors, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4533, by A-XMP OC MODE) DDR4 3466+, by A-XMP OC MODE)DDR4 3200, DDR4 4600+

ECC Supported

Non-ECC

Buffer Supported

Un-buffered

PCI Express 4.0 x16

2 x PCI Express 4.0 x16** Actual support may vary by CPU.

PCI Express x16

1 x PCI Express x16

PCI Express x1

2 x PCIe 3.0 x1

SATA 6Gbs

6 x SATA 6Gb/s

Date First Available

March 21, 2022

CPU Type Support

2nd Gen Ryzen ProcessorsSupports AMD Ryzen 4000 G-Series, 2nd Gen Ryzen with Radeon Graphics, 3rd, Ryzen with Radeon Vega Graphics Processors* A bios update is required for AMD Ryzen 5000 series CPU., Supports AMD Ryzen 5000 Series

Max Memory Supported

128GB

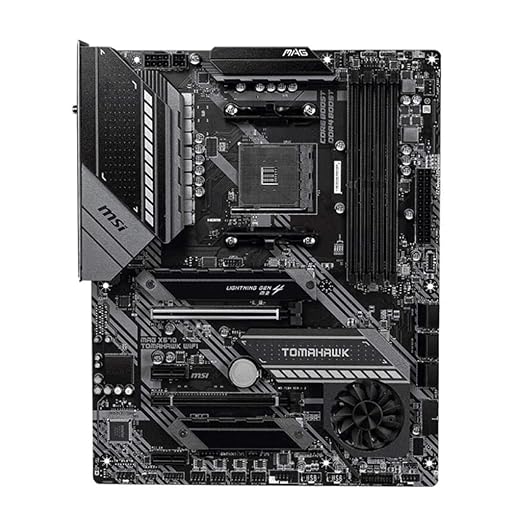

Photos: MSI MAG X570 TOMAHAWK

8 reviews for MSI MAG X570 TOMAHAWK

4.8 out of 5
6
2
0
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Anonymous

    Pros: – Awesome networking capabilities – Easy to use BIOS – Nice and cool – Top-notch VRMs – Decent rear IO – Pre-installed IO shield – Simple color scheme and aesthetic design Cons: – Included wifi antennas do not work well for the location of my PC, however this is more to do with my own placement of the computer than the fault of this board Overall Review: This board is easily my favorite of the numerous motherboards I’ve worked with. I finally purchased this on back order in the middle…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Philip C.

    Pros: – Amazing motherboard for the price point. – Very good layout. – Effective and easy to use bios. – Fantastic VRM. – Great thermal performance. – Easy CPU and memory overclocking. – IO panel has a great selection of connections. – A very good selection of internal connectors. – USB 3.2 Gen 2 performance on IO ports and internal connectors is fantastic. – Fan on chipset is very quiet. – Debug LEDs. – Flash BIOS button on IO panel with flash USB. – No issues with layout with very large…

    Helpful(0) Unhelpful(0)You have already voted this
  3. Gary R.

    Pros: Pure horsepower, functionality Cons: High Cost, low availability Overall Review: Thoroughly pleased. My first foray into a Gaming system made significantly easier with this board.

    Helpful(0) Unhelpful(0)You have already voted this
  4. David C.

    Pros: Seems to be a well manufactured motherboard with a very good feature set at a decent price. Several reviewers have indicated the thermals are really good. I haven’t really pushed the system (yet), so it’s too early for me to conclude either way. I’ve played MS Flight Simulator (2020) a bit, though, and so far so good. There are 2 NVMe M.2 slots. I’m booting Windows 10 Pro from an NVMe M.2 Gen 3 SSD and wow, what a difference compared with a SATA HD. The included printed booklet is…

    Helpful(0) Unhelpful(0)You have already voted this
  5. Anonymous

    Pros: -Premium components that rival even more expensive motherboards -Chipset fan rarely turns on -FP USBC connector -Easy to navigate BIOS -Perfect balance of subtlety and RGB, can go with any build. Cons: -Avability is something to be desired for, it goes frequently out of stock Overall Review: -Additionally, if you’re running a zen2 CPU, don’t update the BIOS for zen3 until you have the chip in hand, with my 3600 I exeprienced a lot of BSOD/freezes and thought of RMAing the board…

    Helpful(0) Unhelpful(0)You have already voted this
  6. Evanssm1

    Pros: This was my first build ever. As timid as I was to work on my build; I found the Tomahawk board super simple and straight forward to work with. The manual helps a lot, but could use a little tweaking for the “noobs”. It easily fit in my Fractal Meshify C case. I also used the AMD 7 3700X Chip with the stock fan that fit like a glove on the board without having to modify anything. It is sleek black and hefty when you pick it up so it doesn’t feel so fragile that you’re going to snap it…

    Helpful(0) Unhelpful(0)You have already voted this
  7. Ghost Dragon

    Pros: Easy bios X570 chipset Dual pcie 4.0 M2 slots Cons: None Overall Review: I had a Asus b550 that I upgraded from. Before that I had a MSI x470 that I enjoyed. It had a better bios and I noticed everything was just more responsive. Especially gaming there was less latency between mouse clicks and seeing things. I’m glad I switched back to MSI the performance of the x570 vs the Asus b550 is noticeable. I highly recommend the x570 especially if you have a newer Ryzen 5000 series cpu. It…

    Helpful(0) Unhelpful(0)You have already voted this
  8. Joey

    Pros: THE FLASH BIOS BUTTON SAVED ME!!! Great looking board Endless USB’s bluetooth worked great Mine came with bios 7C84v14 which has 5000 series compatibility out the box. Which was great. Installed windows in 3 mins I was amazed. Cons: So I’m not sure if its a design defect on my board but the supposed Bios flashing LED in the manual and one the tech told me to look for you cant see it from the outside. if you have to flash your bios via usb. You need to look inside over the heatsink by…

    Helpful(0) Unhelpful(0)You have already voted this
