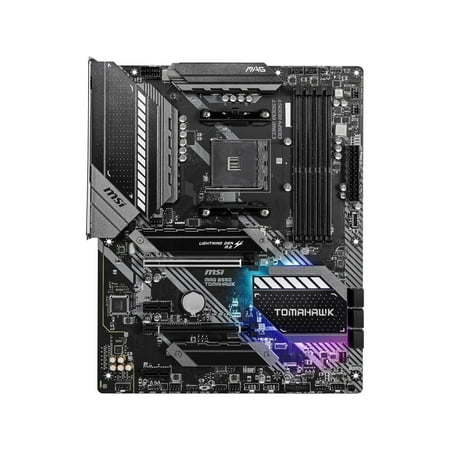

MSI MAG B550 TOMAHAWK Gaming

Original price was: $159.99.Current price is: $149.99.

(8 customer reviews)
Last updated on November 8, 2024 6:00 am
0
Add to compare

Highest Price
$129.67 Amazon.com
June 10, 2024
Lowest Price
$100.00 eBay
November 8, 2024
Current Price
$149.99 Amazon.com
November 8, 2024
Since June 10, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: MSI MAG B550 TOMAHAWK Gaming Motherboard (AMD AM4, DDR4, PCIe 4.0, SATA 6Gb/s, M.2, USB 3.2 Gen 2, HDMI/DP, ATX, AMD Ryzen 5000 Series processors) - $149.99

Specification: MSI MAG B550 TOMAHAWK Gaming

Product
Brand

Model

MAG B550 TOMAHAWK

Product Type
Type

AMD

Specification
Best Seller Ranking

#12 in AMD Motherboards

SATA RAID

0/1/10

Features

Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processorsSupports DDR4 Memory, up to 5100+(OC) MHzLightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experienceEnhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 BoostLatest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lagMystic Light: 16.8 million colors, 29 effects controlled in one click. Mystic Light Extension supports RGB and RAINBOW LED stripPre-installed I/O Shielding: Better EMI protection and more convenience for installationAudio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experienceMulti-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire

Windows 11

Supported

Power Pin

1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector

Dimensions W x L

12.0" x 9.6"

LED Lighting

RGB

Form Factor

ATX

Onboard Video Chipset

Supported only by CPU with integrated graphic

Onboard USB

1 x USB 3.2 Gen 1 5Gbps Type-C port1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

Back IO Ports

1 x Flash BIOS Button1 x PS/2 Keyboard/Mouse Combo1 x DisplayPort1 x HDMI2 x LAN (RJ45)2 x USB 2.0/1.12 x USB 3.2 Gen 1 Type-A1 x USB 3.2 Gen 2 Type-A1 x USB 3.2 Gen 2 Type-C1 x Optical S/PDIF Out5 x Audio Jacks

Max LAN Speed

10/100/1000/2500Mbps + 10/100/1000Mbps

Second LAN Chipset

Realtek RTL8111H

LAN Chipset

Realtek RTL8125B

Audio Channels

7.1 Channels

Audio Chipset

ALC1220P, Realtek ALC1200

Other Connectors

1 x 4-pin CPU fan connector1 x 4-pin water-pump fan connector6 x 4-pin system fan connectors1 x Front panel audio connector2 x System panel connectors1 x Chassis Intrusion connector2 x 4-pin RGB LED connectors2 x 3-pin RAINBOW LED connectors1 x TPM module connector1 x Clear CMOS jumper

M.2

2 x M.2 slots (Key M):M2_1 slot (from AMD Processor):Supports PCIe 4.0/3.0 x4 *Supports SATA 6Gb/sSupports 2242/2260/2280/22110 storage devicesM2_2 slot (from AMD B550 chipset):Supports PCIe 3.0 x4Supports 2242/2260/2280 storage devices* The supported specification depends on installed processor.

CPU Socket Type

AM4

Chipset

AMD B550

Number of Memory Slots

4x288pin (DDR4)

Memory Standard

1866 (by JEDEC)1DPC 1R max speed 51001DPC 2R max speed 38662DPC 1R max speed 40002DPC 2R max speed 3600, 2133, 2400, 2667, 2667 (by A-XMP OC MODE)DDR4 3200, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4533, 4600, 4733, 4800, 4866, 5000, DDR4 5100+

Channel Supported

Dual Channel

ECC Supported

Yes

Buffer Supported

Un-buffered

PCI Express 4.0 x16

1 x PCI Express 4.0 x16** Actual support may vary by CPU.

PCI Express 3.0 x16

1 x PCIe 3.0 x16 slot** Supports x4 speed.* When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.

PCI Express x1

2 x PCIe 3.0 x1

SATA 6Gbs

6 x SATA 6Gb/s

Date First Available

March 20, 2022

CPU Type Support

3000 Series* processors* Not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G., 4000 G, Supports AMD Ryzen 5000

Max Memory Supported

128GB

Photos: MSI MAG B550 TOMAHAWK Gaming

8 reviews for MSI MAG B550 TOMAHAWK Gaming

4.8 out of 5
6
2
0
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Anonymous

    Pros: -The new design looks great -Good VRM’s -M.2 Shields for both slots -Mystic lighting on chipset looks amazing -Pre-Installed shield Cons: None Overall Review: If you’re just building a PC right now i’d recommend going with this board since it has PCIE Gen 4 for future upgrades

    Helpful(0) Unhelpful(0)You have already voted this
  2. Anonymous

    Pros: Looks good and works amazing. Cons: When i boot my computer sometimes the VGA Led stays on or the Boot Led. Everything seems to be working fine but only time will tell. Overall Review: Good Motherboard

    Helpful(0) Unhelpful(0)You have already voted this
  3. Anonymous

    Pros: This is a great motherboard. It was easy to install specially for someone like me who is building their first gaming pc. I have it pair with a Ryzen 5 3600x and haven’t seen anything wrong with it. It’s a great board. Cons: The only con that I have about the board will be using the mystic light with my RGB fans and case. The synchronizing all the RGB is proving difficult but I will figure it out. Overall Review: Overall I love the motherboard and it was easy to install. It also has RGB…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Anonymous

    Pros: Has all the features I need and more Great Vrms Great Io Preinstalled io shield Cons: If you use their software, make sure to disable the gaming Lan Manager in the Dragon Center App. It caused me to get 2mbps upload when I normally get 12mpbs. So far no other problems Overall Review: Great Motherboard at a great price. Would recommend

    Helpful(0) Unhelpful(0)You have already voted this
  5. Anonymous

    Pros: Mobo has some weight to it. Feels quality. Easy to build and good temps. Cons: Only con is the audio drivers from MSI’s site made crackling sounds and sounded muffled. I uninstalled the sound drivers and when windows restarted it loaded generic HD audio drivers which sound much better. Overall Review: Overall awesome. Everything went real smooth from build to boot to drivers (except the audio).

    Helpful(0) Unhelpful(0)You have already voted this
  6. ThatGuyy95

    Pros: Great install, loved the booklet, confused but still built it! Cons: Besides the fact I need smaller fingers to maneuver between the cpu cooler and ram slots it’s perfect! Overall Review: I absolutely fell in love with this MBD. It was a simple instal I purchased noctua cpu cooler and the bracket mounting was super easy. Everything is spaced just right and no issues with adding additional ram or a Sabrent 1tb nvme pcie 4x with heatsink overall impressed.

    Helpful(0) Unhelpful(0)You have already voted this
  7. Anonymous

    Overall Review: make sure you register your motherboard before you install it. They want 100 different codes from the mb you wont be able to see after its in your case with everything on it. I probably wont be able to register mine.

    Helpful(0) Unhelpful(0)You have already voted this
  8. Austin R.

    Pros: 10 true phase VRM Awesome design Not too much obnoxious RGB or GAMER aesthetics Easy AF BIOS Dragon Center is awesome Cons: Very little comes in the box No Wi-Fi Overall Review: This is the second time Ive bought a board with no Wi-Fi after the fact, its my fault and the board is really worth it I luckily still had a wireless pcie adapter to use with this board so it was no biggie I love MSI!!!

    Helpful(0) Unhelpful(0)You have already voted this
