MSI B550M PRO-VDH

Original price was: $119.99.Current price is: $99.66.

(8 customer reviews)
Last updated on August 8, 2022 10:28 pm
0
Add to compare

Highest Price
$99.66 Walmart.com
January 23, 2025
Lowest Price
$99.66 Walmart.com
January 23, 2025
Current Price
$99.66 Walmart.com
August 9, 2022
Since January 23, 2025
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Specification: MSI B550M PRO-VDH

Product
Brand

Model

B550M PRO-VDH WIFI

Series

PRO

Specification
Best Seller Ranking

#33 in AMD Motherboards

Audio Chipset

Realtek ALC892/ALC897 Codec

Features

Support for 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS updateSupports DDR4 Memory, up to 4400(OC) MHzLightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield FrozrPremium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop worksPowerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 BoostAudio Boost: Reward your ears with studio grade sound qualityDragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface

Windows 11

Supported

Power Pin

1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector

Dimensions W x L

9.6" x 9.6"

LED Lighting

RGB

Form Factor

Micro ATX

Other Connectors

1 x 4-pin CPU fan connector1 x 4-pin water-pump fan connector3 x 4-pin system fan connectors1 x Front panel audio connector2 x System panel connectors1 x Serial port connector1 x Chassis Intrusion connector2 x 4-pin RGB LED connectors2 x 3-pin RAINBOW LED connectors1 x TPM module connector1 x Clear CMOS jumper

Onboard USB

1 x USB 3.2 Gen 1 5Gbps Type-C port1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

Back IO Ports

1 x DisplayPort, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45), 1 x PS/2 Keyboard/Mouse Combo, 2 x USB 2.0/1.1, 3 x Audio Jacks, 4 x USB 3.2 Gen 1 Type-A

Bluetooth

2.1+EDR, 3.0, 4.0, 4.2, BLE, Supports Dual Mode Bluetooth 2.1

Wireless LAN

5 GHz) up to 433 Mbps speed., dual band (2.4 GHz, Intel Dual Band Wireless-AC 3168Supports Wi-Fi 802.11 a/b/g/n/ac

Max LAN Speed

10/100/1000Mbps

LAN Chipset

Realtek 8111HN

Audio Channels

7.1 Channels

Onboard Video Chipset

Supported only by CPU with integrated graphic:1 x VGA port, supports resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz *1 x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz *1 x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz *,**Maximum shared memory of 16GB* Available for the processor with integrated graphics.** Graphics specifications may vary depending on the CPU installed.

SATA RAID

0/1/10

M.2

2 x M.2 slots (Key M)M2_1 slot (from AMD Processor)Supports PCIe 4.0/3.0 x4 *Supports SATA 6Gb/sSupports 2242/2260/2280 storage devicesM2_2 slot (from AMD B550 chipset)Supports PCIe 3.0 x4Supports 2242/2260/2280 storage devices* The supported specification depends on installed processor.

SATA 6Gbs

4 x SATA 6Gb/s

PCI Express x1

2 x PCIe 3.0 x1 slots

PCI Express 4.0 x16

1 x PCIe 4.0/3.0 x16 slot (PCI_E1) ** The supported specification depends on installed processor.

Channel Supported

Dual Channel

Memory Standard

1866 MHz by JEDEC1DPC 1R max speed 4400 MHZ1DPC 2R max speed 3733 MHZ2DPC 1R max speed 3866 MHZ2DPC 2R max speed 3466 MHZ, 2133, 2400, 2667, 2667 MHz by A-XMP OC MODESupports DDR4 3200, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, Supports DDR4 4400+

Number of Memory Slots

4x288pin (DDR4)

Chipset

AMD B550

Date First Available

March 17, 2022

Max Memory Supported

128GB

CPU Socket

AM4

CPU Support

and future AMD Ryzen processors with BIOS update, Supports AM4 socket 3rd Gen AMD Ryzen processors

Item Type

AMD

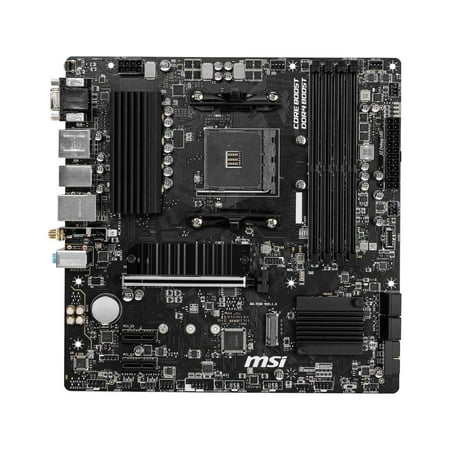

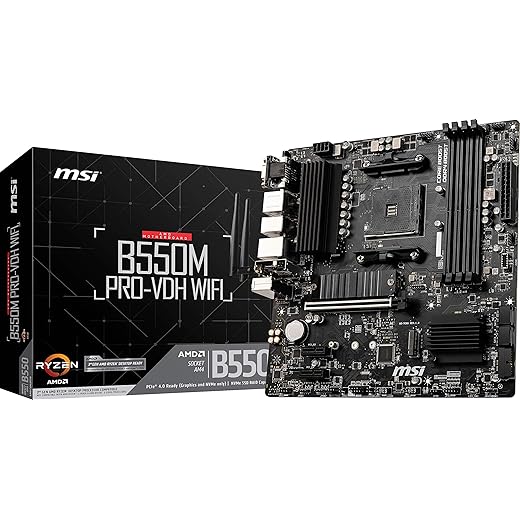

Photos: MSI B550M PRO-VDH

8 reviews for MSI B550M PRO-VDH

4.1 out of 5
4
3
0
0
1
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Ambrose

    Pros: Stability-focused no-frills board with the feature set I was looking for. Cons: Taking off one egg because the following situation is not clearly addressed by MSI: Once assembled board would not post. My first guess was it needed a bios update since Ryzen is known to be picky with regards to memory. But how can you flash the bios if i you can’t get into it? Thankfully this board features a bios flash button on the back panel. Follow the instructions from MSI to use this feature. In…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Chad D.

    Pros: PCIe 4.0 graphics and NVMe, really excellent performance when paired with parts that can take advantage of it. Clean board layout makes it easy to tidy up wiring inside the case, to improve airflow and expose the fancy Ryzen 7 cooler for viewing. Onboard wifi works great. 8 seconds from POST to login screen on my build. Cons: As usual, the edge connectors for SATA and USB3 point at the hard drive cage and are tough to get connectors on without stressing the board mounts. Needs a BIOS…

    Helpful(0) Unhelpful(0)You have already voted this
  3. Christopher C.

    Pros: Price is better than most Can upgrade to Zen 3 4 dimm slots 8 pin power (no sure if that’s standard now) Wifi and bluetooth built in (can’t speak for the wifi but my bluetooth headphones can reach half way across the house before cutting out) Cons: Wish it had more sata ports (4 total but I have 5 HDD’s/SSD’s) Not the prettiest board but what do you expect on a lower end board Overall Review: Bought this twice and used it with a Ryzen 7 3700x and Ryzen 5 3600 with no issue. Overclocked…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Anonymous

    Pros: – Good quality and has all the features I need for a low price. – Never had any of the problems other reviewers are reporting. Cons: – The antennae probably should have been placed above the USB ports. Overall Review: Before I installed Windows 10, I installed the latest BIOS for this board as a precaution. Judging by the other reviews and my experience so far, I have a suspicion that the BIOS pre-installed on these boards is somehow buggy. However, this isn’t a serious issue…

    Helpful(0) Unhelpful(0)You have already voted this
  5. Christopher B.

    Pros: – No problems at all with the build. Posted on first try – Solidly built – WIFI setup was effortless – updated BIOS easily, again, no problems – setting boot order to install Windows from USB was stupid easy as well Cons: – i/o shield is really tinny and the tabs to line everything up were easily bent. – only 3 system fan headers (not including pump and cpu fan headers)- something to keep in mind as you set up your build if you’re planning on lots of fans Overall Review: It’s a great…

    Helpful(0) Unhelpful(0)You have already voted this
  6. Justin G.

    Pros: – Easy to install – Easy bios update Cons: Minor-CMOS battery gets covered by the graphics card when slotted. Overall Review: Works perfectly if you have no need for multiple slots. I was also able to oc a rx480 quite allot on this board easily. Definitely one of the easiest set ups I’ve had to work with.

    Helpful(0) Unhelpful(0)You have already voted this
  7. Bill R.

    Pros: Easy to setup, instructions very clear BIOS management is a snap Cons: None that I can tell so far. Overall Review: This is a good quality motherboard, was able to hook up my Ryzen 5 5600X CPU easily, as well as all the other components. Would recommend this motherboard for anyone looking for a good mid ranged price with good features

    Helpful(0) Unhelpful(0)You have already voted this
  8. Mary B.

    Overall Review: Paired this with an ryzen 7 3700x. First, it wouldnt boot. So I flashed the bios with the nice flash feature where you don’t need a cpu or ram to update. With a newly flashed bios, it recognized the processor but would Immediately enter a restart loop before it loaded the os.  I tried several bios versions, including the latest stable version and the beta version. But nothing helped. This board had to be returned. This was disappointing. I’ve used MSI motherboards in all my…

    Helpful(0) Unhelpful(0)You have already voted this
