MSI A320M-A PRO

$74.99

(8 customer reviews)
Last updated on January 17, 2025 9:26 pm
0
Add to compare

Highest Price
$69.93 Walmart.com
September 29, 2024
Lowest Price
$63.58 Walmart.com
January 23, 2025
Current Price
$74.99 Amazon.com
January 18, 2025
Since September 29, 2024
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Didn't find the right price? Set price alert below

Set Alert for Product: MSI A320M-A Pro AMD A320 AM4 Micro ATX DDR4-SDRAM Motherboard - $74.99

Specification: MSI A320M-A PRO

Product
Brand

Model

A320M-A PRO

Specification
Best Seller Ranking

#48 in AMD Motherboards

Onboard Video Chipset

Supported only by CPU with integrated graphic:1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160@30HzOnly support when using AMD Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics, Athlon with Radeon Vega Graphics ProcessorsMaximum shared memory of 2048MB

Features

Supports 1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics, Athlon with Radeon Vega Graphics and A-series, Athlon X4 Desktop Processors for Socket AM4Supports DDR4 Memory, up to 3200 (OC) MHzAudio Boost: Reward your ears with studio grade sound qualityDDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stabilityCore Boost: With premium layout and fully digital power design to support more cores and provide better performance

Power Pin

1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector

Dimensions W x L

8.9" x 7.4"

Form Factor

Micro ATX

Other Connectors

1 x 4-pin CPU fan connector1 x 4-pin system fan connector1 x Front panel audio connector1 x Serial port connector2 x Front panel connectors1 x TPM module connector1 x Chassis Intrusion connector1 x Clear CMOS jumper

Onboard USB

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)

Back IO Ports

1 x DVI-D, 1 x HDMI, 1 x LAN (RJ45), 2 x PS/2, 2 x USB 2.0/1.1, 3 x Audio Jacks, 4 x USB 3.2 Gen 1

Max LAN Speed

10/100/1000Mbps

LAN Chipset

Realtek 8111H

Audio Channels

7.1 Channels

Audio Chipset

Realtek ALC892

SATA RAID

0/1/10

SATA 6Gbs

4 x SATA 6Gb/s

PCI Express x1

1 x PCIe 2.0 x1 slot

PCI Express 3.0 x16

1 x PCIe 3.0 x16 slot:1st, 2nd and 3rd Gen AMD Ryzen: Supports x16 speedRyzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics: Supports x8 speedAMD Athlon with Radeon Vega Graphics: Supports x4 speed

Channel Supported

Dual Channel

Memory Standard

1866 MHz, 2133, 2400, 2667(OC), 2933(OC), Support DDR4 3200(OC)

Number of Memory Slots

2x288pin (DDR4)

Chipset

AMD A320

Date First Available

April 01, 2020

Max Memory Supported

32GB

CPU Socket

AM4

CPU Support

2nd and 3rd Gen AMD Ryzen, Athlon with Radeon Vega Graphics and A-series, Athlon X4 Desktop Processors for Socket AM4, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics, Supports 1st

Item Type

AMD

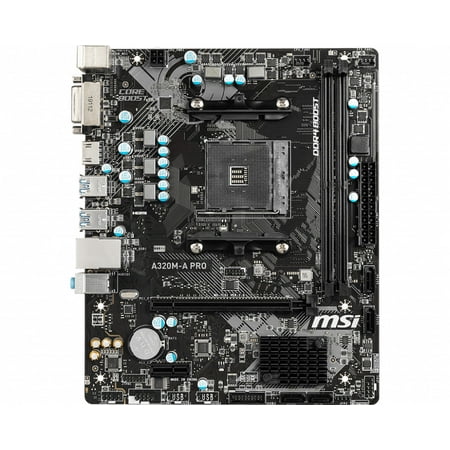

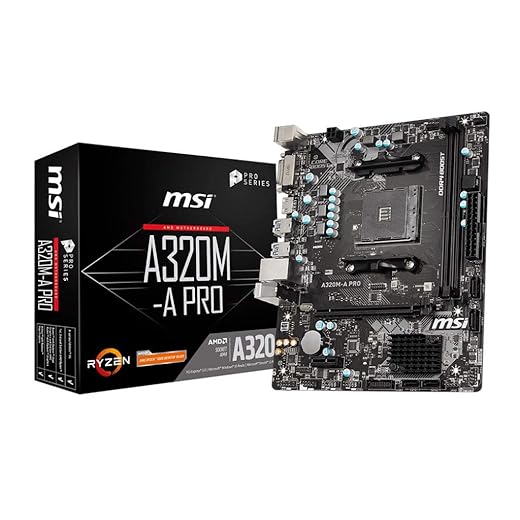

Photos: MSI A320M-A PRO

8 reviews for MSI A320M-A PRO

3.9 out of 5
4
1
2
0
1
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Anonymous

    Pros: Good performance and you can install plenty of ssd’s Great price Cons: Has only one PciE slot Overall Review: The performance for price ratio is amazing, but really gets negated because of the one PciE slot. This lead to my build not having and audio card and only a graphics card

    Helpful(0) Unhelpful(0)You have already voted this
  2. Anthony S.

    Pros: Quality MSI pro series motherboard Cons: Limited Overall Review: This a quality motherboard. The price point comes in because of the minimalist options, which is what I wanted. It doesn’t leave unused slots for anything. 32GB of ram is more than plenty for me, I’m not using multiple graphics cards, I’ll never need an internal sound card (an external audio interface serves me better).

    Helpful(0) Unhelpful(0)You have already voted this
  3. Cooper Y.

    Pros: Super easy to setup and this is all you need to have a good pc if you’re not planning to overclock or have multiple gpu’s. Overall Review: good

    Helpful(0) Unhelpful(0)You have already voted this
  4. Natasha A.

    Pros: Overclocking for cpu and ram. Fan speed adjustments. Lots of high end features for little money. Cons: One fan header. Overall Review: For the price, this a320 chipset has all the features a budget gamer could want. Cpu overclocking. Ram overclocking. Adjustable fan settings. And a lot more that i have not messed with yet. This motherboard is an excellent option to pair with a ryzen 3 3200g for budget gaming.

    Helpful(0) Unhelpful(0)You have already voted this
  5. Timothy B.

    Pros: Does what it’s supposed to do. It’s a 2020 model so it has all the updated bios for Gen1, 2, and 3 Ryzen processors. Cons: No led diagnostic lights, No M.2 slot, little more compact than the actual a320 Pro max. Overall Review: Not the board i really wanted but everything else at the time was SOLD out. Wish I had waited just a tad longer. This is basically the bottom of the barrel mother board for AM4. Don’t really have the amenities as most other AM4 boards such as, diagnostic LED…

    Helpful(0) Unhelpful(0)You have already voted this
  6. AT6680

    Pros: Enough specs for what it was needed Cons: Not working good… Several blue crash screens every single day. Overall Review: The motherboard never worked well. I have been having several blue crash screens every day. I have tried everything from reinstalling the OS to unplug the hard drives and the RAMs to check if they are the bad ones.

    Helpful(0) Unhelpful(0)You have already voted this
  7. JediRabbit5

    Pros: Got me going. Inexpensive. Cons: No m.2 and only one fan header Overall Review: Stater board. Worked well for us. With a used Ryzen 3 3200G used the on board graphics. Then with a 1050 Ti then with a 1660 Ti. Started with 16gb 2400 ram then got 16 gb 3200. Great beginnings, built with my 11 yo

    Helpful(0) Unhelpful(0)You have already voted this
  8. Colt S.

    Pros: Functioning product Arrived on time Overall Review: Will buy from seller again

    Helpful(0) Unhelpful(0)You have already voted this
