GIGABYTE Z590 VISION G

$317.90

(5 customer reviews)
Last updated on November 8, 2024 4:17 pm
0
Add to compare

Highest Price
$317.90 Amazon.com
May 19, 2024
Lowest Price
$141.80 Walmart.com
May 20, 2024
Current Price
$317.90 Amazon.com
November 8, 2024
Since May 14, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: GIGABYTE Z590 Vision G (LGA 1200/Intel Z590/ATX/3x M.2/PCIe 4.0/USB 3.2 Gen2X2 Type-C/2.5GbE LAN/Motherboard) - $317.90

Specification: GIGABYTE Z590 VISION G

Product
Brand

Model

Z590 VISION G

Product Type
Type

Intel

Specification
Best Seller Ranking

#35 in Intel Motherboards

SATA RAID

0/1/5/10

Features

Multi-Graphics Technology:Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesI/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install.Noise detectionBIOS:1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress InstallBundled Software:Norton Internet Security (OEM version)cFosSpeedOperating System:Support for Windows 10 64-bit

Windows 11

Supported

Power Pin

1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector

Dimensions W x L

12.0" x 9.6"

LED Lighting

RGB

Form Factor

ATX

Other Connectors

1 x CPU fan header1 x water cooling CPU fan header4 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI, GC-TPM2.0 SPI 2.0 module only)2 x Thunderbolt add-in card connectors1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus button1 x noise detection header

Onboard USB

1 x USB Type-C header, with USB 3.2 Gen 2×2 support1 x USB 3.2 Gen1 header2 x USB 2.0/1.1 headers

Back IO Ports

2 x USB 3.2 Gen2 Type-A ports1 x USB Type-C port, with USB 3.2 Gen 2×2 support1 x USB Type-C port, with USB 3.2 Gen 1 support4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x DisplayPort In port1 x HDMI port1 x RJ-45 port6 x audio jacks

Max LAN Speed

10/100/1000/2500Mbps

LAN Chipset

Intel 2.5GbE LAN chip

Audio Channels

7.1 Channels

Audio Chipset

Realtek ALC4080

Intel Optane Ready

Yes

M.2

CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU) (M2C_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)* Supported by 11th Generation processors only.

SATA 6Gbs

6 x SATA 6Gb/s

PCI Express 3.0 x16

2 x PCI Express 3.0 x16** Running at x4

PCI Express 4.0 x16

1 x PCI Express 4.0 x16* Actual support may vary by CPU.* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.* The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.

Channel Supported

Dual Channel

Memory Standard

2133 (10th Generation Intel Core i5/i3/Pentium/Celeron processors), 2133 (10th Generation Intel Core i9/i7 processors)DDR4 2666, 2133 (11th Generation Intel Core i9/i7/i5 processors)DDR4 2933, 2400, 2666, 2800, 2933, 3000, 3200, 3300(OC), 3333(OC), 3400(OC), 3466(OC), 3600(OC), 3666(OC), 3733(OC), 3800(OC), 3866(OC), 4000(OC), 4133(OC), 4300(OC) /4266(OC), 4400(OC), 4500(OC), 4600(OC), 4700(OC), DDR4 4800(OC)

Number of Memory Slots

4x288pin (DDR4)

Onboard Video Chipset

Supported only by CPU with integrated graphic

Chipset

Intel Z590

CPU Socket Type

LGA 1200

Date First Available

February 17, 2022

CPU Type Support

10th Gen Intel Core processorsSupports Intel Pentium, Celeron processors** Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family., Supports 11th

Max Memory Supported

128GB

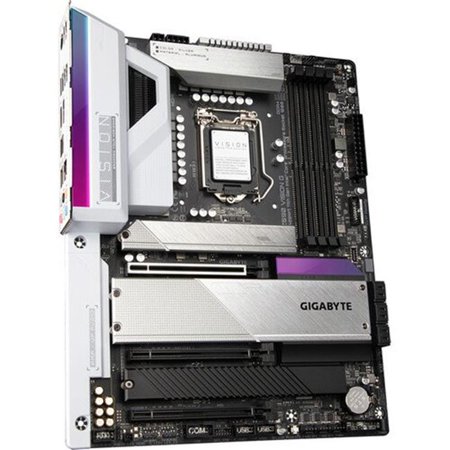

Photos: GIGABYTE Z590 VISION G

5 reviews for GIGABYTE Z590 VISION G

2.8 out of 5
1
0
1
3
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Anonymous

    Overall Review: Good board besides the bad ethernet port thats a known problem. The ethernet port was DOA, just completely shot which is a known issue with the i225v NIC, wish I had knew before this purchase. Had to buy a usb to ethernet adapter.

    Helpful(0) Unhelpful(0)You have already voted this
  2. Anonymous

    Overall Review: It’s a cool looking board, but the Ethernet port doesn’t work. Got in a package or I would have gotten a different mobo. Am using a USB to Ethernet adaptor.

    Helpful(0) Unhelpful(0)You have already voted this
  3. Aaron H.

    Pros: Board looks aesthetically pleasing, has several NVMe slots with ample heat sinks. My ethernet port DID work using the included drivers disc that shipped with the board, whereas others appeared to have issues with their ethernet port. Cons: Arrived defective. Would not post with memory in any slot other than slot four. Tested with known working memory and different timings. Would only post if one stick of RAM was inserted, specifically in slot 4. Occasionally wouldn’t POST if two…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Anonymous

    Pros: aesthetically pleasing good build quality (except issues below) Easy bios Cons: Bad Ethernet Port m.2 slot #1 is reserved for a technology that hasn’t been released yet. back plate was off center so I had to use an HDMI cable to pry it into proper orientation. No manual in box No screws included in box. Overall Review: I was enticed buy this MoBo because it was bundled with GPU in the Newegg Shuffle. It would have been a great motherboard, except the basic ethernet port doesnt work and…

    Helpful(0) Unhelpful(0)You have already voted this
  5. Anonymous

    Pros: It’s a motherboard. It works. Cons: A little spendy. Apparently, this board is a gamble to purchase judging by the reviews. Mine works fine though. If you get this in a bundle and your mobo is defective, you would have to return both items. You can’t just send back the motherboard. Overall Review: This was on a shuffle bundle. I didn’t really want this mobo, but I wanted a GPU so I entered for the bundle. Collateral damage to my wallet, for the privilege to purchase a GPU. Newegg, it’s…

    Helpful(0) Unhelpful(0)You have already voted this
