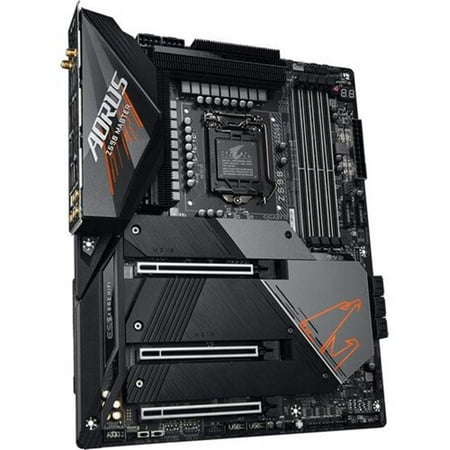

GIGABYTE Z590 AORUS MASTER

$429.99

(8 customer reviews)
Last updated on October 19, 2024 3:58 pm
0
Add to compare

Highest Price
$429.99 Amazon.com
May 21, 2024
Lowest Price
$149.00 Walmart.com
July 31, 2024
Current Price
$429.99 Amazon.com
October 19, 2024
Since May 21, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: GIGABYTE Z590 AORUS Master (LGA 1200/Intel Z590/ATX/Triple M.2/PCIe 4.0/USB 3.2 Gen2X2 Type-C/Intel WiFi 6E/AQUANTIA 10GbE LAN/Gaming Motherboard) - $429.99

Specification: GIGABYTE Z590 AORUS MASTER

Product
Brand

Model

Z590 AORUS MASTER

Product Type
Type

Intel

Specification
Best Seller Ranking

#13 in Intel Motherboards

Audio Chipset

Realtek ALC1220-VB* The front panel line out jack supports DSD audio.

Features

Multi-Graphics Technology:Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesI/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detectionBIOS:2 x 256 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress InstallBundled Software:Norton Internet Security (OEM version)cFosSpeedOperating System:Support for Windows 10 64-bit

Windows 11

Supported

Power Pin

1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors

Dimensions W x L

12.0" x 9.6"

LED Lighting

RGB

Form Factor

ATX

Other Connectors

1 x CPU fan header1 x water cooling CPU fan header4 x system fan headers4 x system fan/water cooling pump headers2 x addressable LED strip headers2 x RGB LED strip headers1 x front panel header1 x front panel audio header1 x noise detection header2 x Thunderbolt add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x power button1 x reset button2 x temperature sensor headers1 x Clear CMOS jumper2 x BIOS switchesVoltage Measurement Points

Onboard USB

1 x USB Type-C header, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers

Back IO Ports

1 x Q-Flash Plus button1 x Clear CMOS button2 x SMA antenna connectors (2T2R)1 x DisplayPort1 x USB Type-C port, with USB 3.2 Gen 2×2 support5 x USB 3.2 Gen 2 Type-A ports (red)4 x USB 3.2 Gen 1 ports1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacks

Bluetooth

Bluetooth 5.2

Wireless LAN

Intel Wi-Fi 6E AX210

Max LAN Speed

10Gbps

LAN Chipset

Aquantia 10GbE LAN chip

Audio Channels

7.1 Channels

SATA RAID

0/1/5/10

Intel Optane Ready

Yes

M.2

CPU:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*Chipset:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB)* Supported by 11th Generation processors only.

SATA 6Gbs

6 x SATA 6Gb/s

PCI Express 3.0 x16

1 x PCI Express 3.0 x16* Running at x4.

PCI Express 4.0 x16

2 x PCI Express 4.0 x16* Actual support may vary by CPU.

Channel Supported

Dual Channel

Memory Standard

2133 MHz memory modules (10th Gen Intel Core i5, 2133 MHz memory modules (10th Gen Intel Core i9, 2133 MHz memory modules (11th Gen Intel Core i9, 2400, 2666, 2933, 3000, Celeron processors), DDR4 3200, i3, i5 processors)DDR4 2933, i7, i7 processors)DDR4 2666, Pentium

Number of Memory Slots

4x288pin (DDR4)

Onboard Video Chipset

Supported only by CPU with integrated graphic

Chipset

Intel Z590

CPU Socket Type

LGA 1200

Date First Available

March 20, 2022

CPU Type Support

10th Gen Intel Core processorsSupports Intel Pentium, Celeron processors** Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family., Supports 11th

Max Memory Supported

128GB

Photos: GIGABYTE Z590 AORUS MASTER

8 reviews for GIGABYTE Z590 AORUS MASTER

4.4 out of 5
4
3
1
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. ChrisG

    Pros: – so many fan headers! I think there’s 8 if I remember right – has 2 RGB headers and 2 ARGB headers – backup BIOS – 11th gen Intel CPUs do in fact work (I’m running an 11900K) Cons: – some of the Gigabyte software is a little finicky but it all works for me the way I want it to 99.99999% of the time. Overall Review: I would definitely buy it again, however not everyone may need 3 PCI slots and/or 3 mSATA slots.

    Helpful(0) Unhelpful(0)You have already voted this
  2. Anonymous

    Pros: Easy to install – easy Bios setup work great with I9 11900K ( remember to update BIOS Ver) Install Drivers from website Cons: none Overall Review: Perfect

    Helpful(0) Unhelpful(0)You have already voted this
  3. Paul B.

    Pros: Can use 10th or 11th Gen processor. Cons: Must have 11th gen to use PCI-e 4 options and 3rd M.2 slot (processor causes not motherboard) Hard to get to GPU release tab with the supplied M.3 heat shield. Overall Review: Great board, flexible options, Easy install and setup.

    Helpful(0) Unhelpful(0)You have already voted this
  4. William B.

    Pros: – Pretty easy install – Clean look w/M.2 heat shields – Not as much RGB bling compared to my first Z370 – RGB Fusion recognizes and controls my CM rear RGB fan and G.Skill Royal Z DRAM sticks – System w/11700K idles at 29C w/ AIO and CPU mounted w/ Grizzly Kryonaut Cons: – Pricey – Not as much RGB lighting compared to my first Z370, where the PCIe and DRAM slots were illuminated (Both a con and a pro, depending on the look you want) – While the large one piece heat shield covering the…

    Helpful(0) Unhelpful(0)You have already voted this
  5. Christopher H.

    Pros: Clean look 3 m.2 slots Bigger gap between cpu and memory for larger AIO Cons: Lots of issues and limitations with 10th gen RGB software is horrible Overall Review: This came bundled with an aorus 3080 ti graphics card for the shuffle. I decided to keep it to replace my z490 asus mobo, which I was running with a i7-10700k. I wish I never opened it, as I had a few issues using a 10th gen cpu, I couldn’t use the top nvme slot as it wouldn’t run my 3 gen , even when setting it to 3 gen in…

    Helpful(0) Unhelpful(0)You have already voted this
  6. Anonymous

    Pros: – Easy to install – Sturdy with nice solid armor plates – Good clearance between CPU and Memory for AIOs – Backup BIOS Cons: First Board Issues Had to RMA first board after multiple crashes and random shut downs. Spent a day removing components one by one to identify issue with the board. These errors occurred immediately during Windows installation with stock settings. Replacement Board Issues The replacement board I received had multiple screws loose that fell out which are used for…

    Helpful(0) Unhelpful(0)You have already voted this
  7. Anonymous

    Pros: Nice build quality – but that’s expected at this price Double switchable bios BIOS updateable with USB before with switch on board First class WIFI Excellent VRM – excellent OCer Cons: Doesn’t come with driver disk and download doesn’t work if you are installing on WIFI unless you download and install WIFI driver first. Manual does not not warn you that you need to be on wired ethernet to download drivers during win10 install. Does not download GPU driver you have to do that separately…

    Helpful(0) Unhelpful(0)You have already voted this
  8. Lee B.

    Pros: Lots of features Cons: Be aware if you are going to use all 4 RAM slots. I have problems where the MB won’t boot with 4 sticks of RAM above BIOS F5. Both with QVL listed RAM and non QVL RAM. Memtest86 tests all the RAM as good. I RMA’d the MB which came back no trouble found. On one of the Gigabyte forums others report this problem also. Sometimes if yoy pull 2 sticks it will BOOT. Then if yoy shutdown and install the removed sitcks it will then BOOT and run ok. By BOOT, I mean the MB…

    Helpful(0) Unhelpful(0)You have already voted this
