GIGABYTE X570 AORUS ELITE

$265.99

(8 customer reviews)
Last updated on November 8, 2024 12:09 pm
0
Add to compare

Highest Price
$269.99 Walmart.com
July 30, 2024
Lowest Price
$99.00 eBay
November 8, 2024
Current Price
$265.99 Walmart.com
November 8, 2024
Since July 30, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: Gigabyte X570 AORUS ELITE Desktop Motherboard - $265.99

Specification: GIGABYTE X570 AORUS ELITE

Product
Brand

Model

X570 AORUS ELITE WIFI

Product Type
Type

AMD

Specification
Best Seller Ranking

#7 in AMD Motherboards

Other Connectors

1 x CPU fan header1 x water cooling CPU fan header2 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header1 x front panel header1 x front panel audio header1 x Trusted Platform Module (TPM) header (2×6-pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper1 x Q-Flash Plus button

Audio Channels

5.1 Channels

LAN Chipset

Intel GbE LAN chip

Max LAN Speed

10/100/1000Mbps

Wireless LAN

IEE 802.11a/b/g/n/ac

Bluetooth

Bluetooth 4.2

Back IO Ports

4 x USB 2.0/1.1 ports2 x SMA antenna connectors (1T1R)1 x HDMI port4 x USB 3.2 Gen 1 ports2 x USB 3.2 Gen 2 Type-A ports (red)1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacks

Onboard Video Chipset

Supported only by CPU with integrated graphic

Onboard USB

1 x USB Type-C port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers

Form Factor

ATX

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector

Windows 11

Supported

Features

Multi-Graphics Technology:Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesNote: For 3rd Generation AMD Ryzen processors/2nd Generation AMD Ryzen processors only.I/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install.BIOS:1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress InstallBundled Software:Norton Internet Security (OEM version)cFosSpeedOperating System:Support for Windows 10 64-bit

Audio Chipset

Realtek ALC1200

SATA RAID

0/1/10

M.2

Integrated in the CPU (M2A_SOCKET):AMD Ryzen 5000 Series, 3rd Gen Ryzen Processors:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)AMD Ryzen 5000 G-Series, Ryzen 4000 G-Series, 2nd Gen Ryzen, 2nd Gen Ryzen with Radeon Vega Graphics, Ryzen with Radeon Vega Graphics Processors:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)Integrated in the Chipset (M2B_SOCKET):1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)* For AMD Ryzen 3rd Gen processors only.

SATA 6Gbs

6 x SATA 6Gb/s

PCI Express x1

2 x PCI Express 4.0 x1** Actual support may vary by CPU.

PCI Express 4.0 x16

2 x PCI Express 4.0 x16 (PCIEX16*, PCIEX4**)* Actual support may vary by CPU.** PCIEX4 running at x4.

Buffer Supported

Un-buffered

ECC Supported

ECC memory (ECC mode) support varies by CPU

Channel Supported

Dual Channel

Memory Standard

1st AMD Ryzen with Radeon Vega Graphics processors), 2133 (AMD Ryzen 2nd Gen, 2133 (AMD Ryzen 3rd Gen with Radeon Graphics processors)DDR4 4400(OC), 2133 (AMD Ryzen 5000 series processors, 2400, 2667, 2933, 3200, 3300(OC), 3333(OC), 3400(OC), 3466(OC), 3600(OC), 3733(OC), 3800(OC), 3866(OC), 4000(OC), 4400(OC), 4600(OC), AMD 3rd Gen Ryzen processors)DDR4 3200(OC), DDR4 4733(OC)

Number of Memory Slots

4x288pin (DDR4)

Chipset

AMD X570

CPU Socket Type

AM4

Date First Available

August 08, 2019

CPU Type Support

2nd Gen Ryzen, 2nd Gen Ryzen with Radeon Vega Graphics, Ryzen 4000 G-Series ProcessorsSupports AMD 3rd Gen Ryzen, Ryzen 5000 G-Series, Ryzen with Radeon Vega Graphics Processors * Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list., Supports AMD Ryzen 5000 Series

Max Memory Supported

128GB

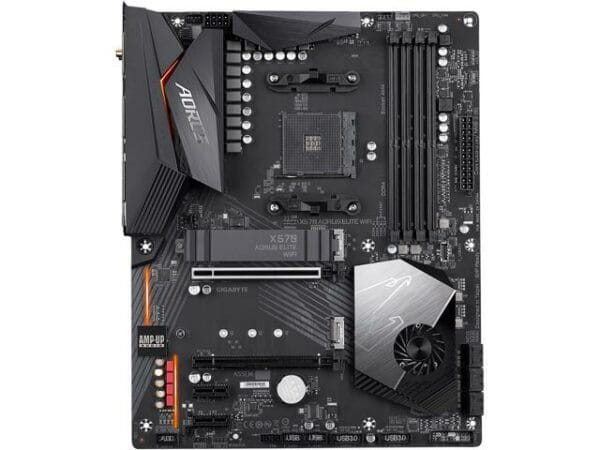

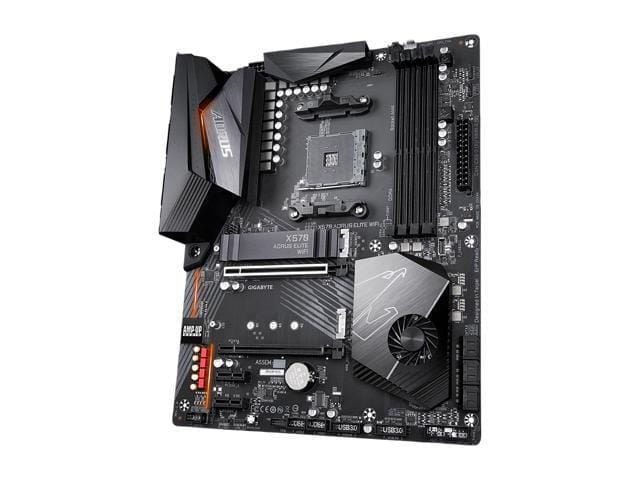

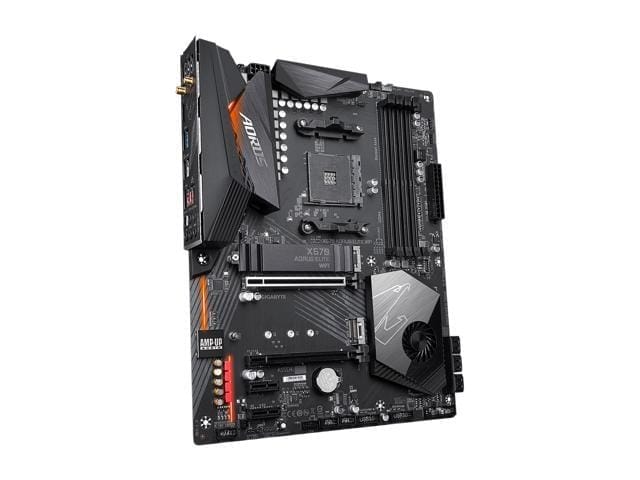

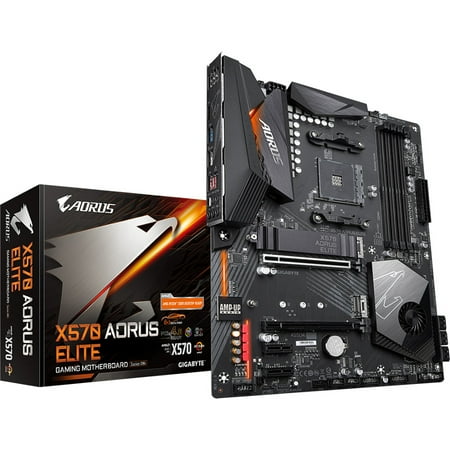

Photos: GIGABYTE X570 AORUS ELITE

8 reviews for GIGABYTE X570 AORUS ELITE

4.4 out of 5
6
1
0
0
1
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Ethan G.

    Pros: + Easy to use BIOS + Intel LAN + VRM heatsink seems well designed + Aesthetics are nice + Builtin I/O shield + dual NVMe M.2 slots + IOMMU support Cons: – only 2 non-cpu fan headers Overall Review: I’ve only had this board for about 2 weeks now, but it’s been smooth sailing since installation. It came ready out of the box with a Ryzen 3000 compatible BIOS. The BIOS itself is pretty easy to use and has tons of customization options. Gigabyte seems to be consistently updating the BIOS…

    Helpful(0) Unhelpful(0)You have already voted this
  2. jeremy l.

    Pros: It’s heavy, that was my first thought when I lifted it from the box. I’d recommend watching review videos on this board for technical info. Instead I’ll address some common complaints on the reviews here and how my experience compare. The chip set fan isn’t loud. I don’t notice it at all. The bios for me at least was stable out of the box and has given me no issues. I haven’t bothered to update it. If you plan to use a lot of case fans you will need a fan controller, the board has just…

    Helpful(0) Unhelpful(0)You have already voted this
  3. Adam R.

    Pros: This is my third personal Gigabyte mobo, and I built more than counted for others. Just built a X390 Arous Master for friend a month ago. Gigabyte always had quality. They are my go to first for new builds. Cons: BIOS (F12e) will lose the SSD setting in M.2 A, and just keeps looping back into BIOS and showing no drive installed, or sees one. Funny part is after a couple re-entering the WD Black SSD and save setting, it will see it and load windows and work fine. Thinking it was the M.2…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Fabian L.

    Overall Review: Was very worried about getting a bad board. Fortunately the board I received works flawlessly. Posted first attempt, flashed latest bios and has been functioning flawlessly since.

    Helpful(0) Unhelpful(0)You have already voted this
  5. Anonymous

    Pros: Budget friendly Great design with little RGB Large heat-sinks and mini fan keep the board cool Two slots for NVME, and four RAM PCIe 4 Cons: Tight fit for USB C port plug in Overall Review: This is a great budget X570 board for those looking to future proof their rig for AMD. Mine is set up with a Ryzen 7 3700x, 2 NVME SSDs, EVGA 2070 Super, Dark Rock Pro 4 CPU Cooler, Samsung SSD, and Seagate HDD. Runs great with no problems at all. I highly recommend this MB.

    Helpful(0) Unhelpful(0)You have already voted this
  6. Paul

    Pros: – Overall good product for the money – Basically good design – Good owner’s manual – Good performance overall Cons: – Limited number of fan/RGB headers – Memory slots might get blocked by a large CPU cooler, limiting you to only 2 available slots – Windows would not boot a couple times over the first 3 weeks, but typically not a problem -Might need to purchase extra mounting parts for 2nd M.2 drive, and/or LED fan cable splitters Overall Review: It has been over 10 years since I last…

    Helpful(0) Unhelpful(0)You have already voted this
  7. Anonymous

    Pros: Easy to install, fast WiFi idc what people say in the other reviews I have full bars Also like the led lights that it has Cons: None Overall Review: Definitely recommend it if you are looking for a solid motherboard

    Helpful(0) Unhelpful(0)You have already voted this
  8. Anonymous

    Pros: Easy set up with cables, everything is marked and labels in manual.BIOS menu is set up well Cons: Wifi had some speed issues, might have just been me.Had a slight issue with the chip I got working with the board, needed a BIOS update; so keep that in mind if you are getting a chip like mine, a Ryzen 5 5600x. Overall Review: I got this board because I needed something new that would improve performance of vr games, because my old processor was very out of spec for it, but still ran. So…

    Helpful(0) Unhelpful(0)You have already voted this
