GIGABYTE B550 GAMING X V2 AM4 Gaming

$109.99

(8 customer reviews)
Last updated on October 19, 2024 12:37 pm
0
Add to compare

Highest Price
$109.99 Newegg.com
November 7, 2024
Lowest Price
$84.99 eBay
November 8, 2024
Current Price
$109.99 Newegg.com
October 19, 2024
Since May 10, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: GIGABYTE B550 GAMING X V2 AM4 AMD B550 SATA 6Gb/s ATX AMD Motherboard - $109.99

Specification: GIGABYTE B550 GAMING X V2 AM4 Gaming

Product
Brand

Model

B550 GAMING X V2

Product Type
Type

AMD

Specification
Best Seller Ranking

#54 in AMD Motherboards

SATA RAID

0/1/10

Features

I/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install.BIOS:1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress InstallBundled Software:Norton Internet Security (OEM version)Realtek 8118 Gaming LAN Bandwidth Control UtilityOperating System:Support for Windows 10 64-bit

Windows 11

Supported

Power Pin

1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector

Dimensions W x L

12.0" x 9.6"

LED Lighting

RGB

Form Factor

ATX

Other Connectors

1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header1 x front panel header1 x front panel audio header1 x Trusted Platform Module (TPM) header (2×6-pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper

Onboard USB

1 x USB Type-C port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers

Back IO Ports

2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x DVI-D port1 x HDMI port3 x USB 3.2 Gen 1 ports1 x USB 3.2 Gen 2 Type-A port (red)1 x Q-Flash Plus button1 x RJ-45 port3 x audio jacks

Max LAN Speed

10/100/1000Mbps

LAN Chipset

Realtek GbE LAN chip

Audio Channels

7.1 Channels

Audio Chipset

Realtek Audio CODEC

Onboard Video Chipset

Supported only by CPU with integrated graphic

M.2

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDsAMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:Supporting SATA and PCIe 3.0 x4/x2 SSDs

SATA 6Gbs

4 x SATA 6Gb/s

PCI Express x1

3 x PCI Express 3.0 x1

PCI Express 3.0 x16

1 x PCI Express 3.0 x16** Supporting PCIe 3.0 x2 mode.

PCI Express 4.0 x16

1 x PCI Express 4.0 x16** Actual support may vary by CPU.* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Buffer Supported

Un-buffered

ECC Supported

ECC memory (ECC mode) support varies by CPU

Channel Supported

Dual Channel

Memory Standard

2133, 2400, 2667, 2933, 3200, 3400(OC), 3466(OC), 3600(OC), 3733(OC), 3866(OC), 4000(OC), 4133(OC), 4266(OC), 4400(OC), 4600(OC), DDR4 4733(OC)

Number of Memory Slots

4×288pin

Chipset

AMD B550

CPU Socket Type

AM4

Date First Available

October 28, 2020

CPU Type Support

3000 Series Processors, 4000 G, 5000 G, Support AMD Ryzen 5000

Max Memory Supported

128GB

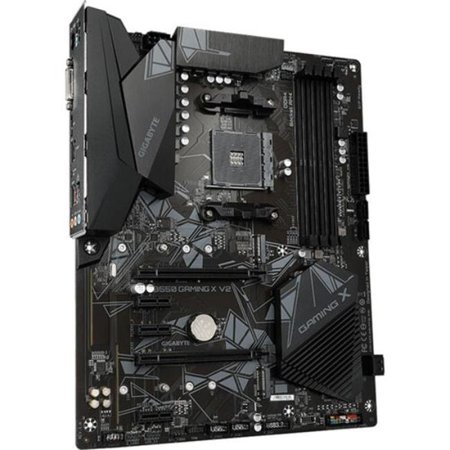

Photos: GIGABYTE B550 GAMING X V2 AM4 Gaming

8 reviews for GIGABYTE B550 GAMING X V2 AM4 Gaming

4.5 out of 5
7
0
0
0
1
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. verified purchaser

    Pros: Product was easy to install, no major modifications had to be made just minor ones…seems to perform well under heavy gaming. Of course I’ve only had it for a week but will recommend to my friends. Cons: Did not come with any mb screws so make sure you have some laying around. Overall Review: I would recommend this product to my friends and will buy one again if the need should arise.

    Helpful(0) Unhelpful(0)You have already voted this
  2. Redhornet

    Pros: This mb has all the right parts at very convenient locations things like the 2 sata ports above the top PCI Express slot were the video card goes and being a full ATX it is not crowded and feal Cons: Only wish it did support older cpus because i would have used my ryzen 7 2700x for now but is no supported so i went ahead and got a Ryzen 5 3600 .will sell the rest i guess Overall Review: Excellent product

    Helpful(0) Unhelpful(0)You have already voted this
  3. BigDisappoint

    Pros: None that I can tell, I cant get past bios loading screen. Cons: This motherboard will NOT recognize a keyboard, which is critical for being able to change bios settings to install an operating system from USB key. It doesnt recognize my Logitech wireless keyboard, tried the dongle in every USB slot on the board. I even drove around town and finally found an old keyboard with the old school ps2 plug styles at goodwill. Tried that. Nope, nuffin. So I’m stuck here, staring at the bios…

    Helpful(0) Unhelpful(0)You have already voted this
  4. JediRabbit5

    Pros: Using this with my old GPU to put together a first gaming PC for a friend. Large easy to build on. Integrated IO shield. GOOD Cons: None so far. Overall Review: Started right up with this “budget” build, is ready for upgrades. this board has a Ryzen 3 3200G, MSi GTX 1660 Ti, 600w 80+ silver, a 240g SP ssd and 2TB Seagate 7200HDD all from my old parts, as I just upgraded my PC when I won a Shuffle and got a 3060 Ti. All in a Rosewill Nautilus that has some custom work on.

    Helpful(0) Unhelpful(0)You have already voted this
  5. Curtis B.

    Pros: Great looking board! Cant wait to try it out. Cons: None Overall Review: Best board I have received yet

    Helpful(0) Unhelpful(0)You have already voted this
  6. Jason p.

    Overall Review: After the first one showed up with some problems (as in it wouldn’t boot up) I sent it back and was able to get a replacement within a week from newegg. The replacement works perfect – at least so far so good anyways!

    Helpful(0) Unhelpful(0)You have already voted this
  7. Anonymous

    Pros: Cheap already supports ryzen 5000 Cons: No big futures Overall Review: Great for price

    Helpful(0) Unhelpful(0)You have already voted this
  8. Brandon H.

    Pros: I like this board for what it has to offer for my particular preference plus the cost to buy. Nice match to my processer choice. Nice fit in my case. Cons: Still working out the bios, i wasnt able to figure how the q flash button operates to flash from usb. Possibly the on board hdmi port wont appeal to the microsoft graphics display driver? I wasnt able to get my display to show. Overall Review: Great product for what price it has to offer. Easy ordering from newegg and fast delivery….

    Helpful(0) Unhelpful(0)You have already voted this
