GIGABYTE B550 AORUS ELITE AX V2

Original price was: $139.99.Current price is: $129.99.

(8 customer reviews)
Last updated on October 19, 2024 8:51 pm
0
Add to compare

Highest Price
$139.99 Newegg.com
May 10, 2024
Lowest Price
$124.99 Amazon.com
May 12, 2024
Current Price
$129.99 Newegg.com
October 20, 2024
Since May 10, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: GIGABYTE B550 AORUS ELITE AX V2 AM4 AMD B550 ATX Motherboard with Dual M.2, SATA 6Gb/s, USB 3.2 Gen 2, 2.4/5 GHz Dual-Band, 2.5 GbE LAN, PCIe 4.0 - $129.99

Specification: GIGABYTE B550 AORUS ELITE AX V2

Product
Brand

Model

B550 AORUS ELITE AX V2

Product Type
Type

AMD

Specification
Best Seller Ranking

#74 in AMD Motherboards

Audio Chipset

Realtek ALC1200

Features

I/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install.BIOS:1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress InstallBundled Software:Norton Internet Security (OEM version)Realtek 8125 Gaming LAN Bandwidth Control UtilityOperating System:Support for Windows 10 64-bit

Windows 11

Supported

Power Pin

1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector

Dimensions W x L

12.0" x 9.6"

LED Lighting

RGB

Form Factor

ATX

Other Connectors

1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x CPU cooler LED strip/RGB LED strip header2 x addressable LED strip headers2 x RGB LED strip headers1 x front panel header1 x front panel audio header1 x Trusted Platform Module (TPM) header (2×6-pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper

Onboard USB

1 x USB Type-C port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers

Back IO Ports

1 x DisplayPort1 x HDMI port2 x SMA antenna connectors (2T2R)2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x Q-Flash Plus button1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacks

Bluetooth

Bluetooth 5

Wireless LAN

ac with wave 2 features, ax, b, g, Intel Wi-Fi 6 AX200WIFI a, n, supporting 2.4/5 GHz Dual-BandSupport for 11ax 160 MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment.

Max LAN Speed

10/100/1000/2500Mbps

LAN Chipset

Realtek 2.5GbE LAN chip

Audio Channels

2/4/5.1/7.1-channelSupport for S/PDIF Out

Onboard Video Chipset

Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Maximum shared memory of 16GB

SATA RAID

0/1/10

M.2

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:- 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs- New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:- Supporting SATA and PCIe 3.0 x4/x2 SSDs

SATA 6Gbs

4 x SATA 6Gb/s

PCI Express x1

1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:- Supporting PCIe 3.0 x1 mode

PCI Express 3.0 x16

1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:- Supporting PCIe 3.0 x2 mode1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:- Supporting PCIe 3.0 x1 mode

PCI Express 4.0 x16

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:- 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode- 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Channel Supported

Dual Channel

Memory Standard

2133 MHz memory modules3rd Gen AMD Ryzen with Radeon Graphics processors:Support for DDR4 4733(O.C.), 2400, 2667, 2933, 3200, 3333(O.C.), 3600(O.C.), 3rd Gen AMD Ryzen Processors:Support for DDR4 4400(O.C.), 4000(O.C.), 4400(O.C), 4600(O.C)

Number of Memory Slots

4x288pin (DDR4)

Chipset

AMD B550

CPU Socket Type

AM4

Date First Available

March 20, 2022

CPU Type Support

3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors* Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list., AMD Socket AM4, support for: AMD Ryzen 5000 Series

Max Memory Supported

128GB

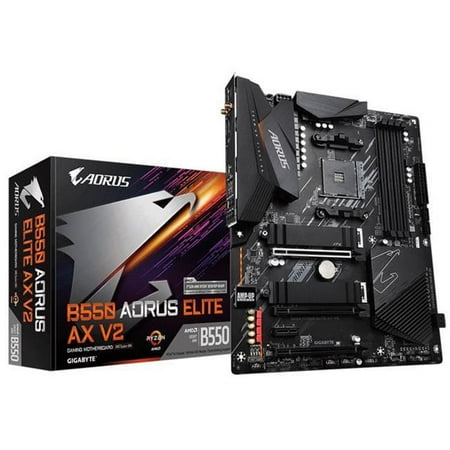

Photos: GIGABYTE B550 AORUS ELITE AX V2

8 reviews for GIGABYTE B550 AORUS ELITE AX V2

5.0 out of 5
8
0
0
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Joshua C.

    Pros: Has wifi, bios is easy to navigate through. Overall a great board to get Cons: System fan connectors in weird spots on board Overall Review: I would Highly recommend this board

    Helpful(0) Unhelpful(0)You have already voted this
  2. Anonymous

    Pros: -comes with bios revision f2, just go ahead and flash bios f10 or f11 right away or the 5600x will not install Windows If you get formatting errors on windows install: -turn on CSM for legacy hardware to install Windows on a basic partition HDD/SSD or turn it off for GPT partition drive installs. I went with GPT on NVME for faster boot times. The motherboard itself is a beauty. Well built. Got a clean look. Overclocks well. I got the memory to OC to 3600mhz with ease in 20 seconds….

    Helpful(0) Unhelpful(0)You have already voted this
  3. Anonymous

    Overall Review: Ran my 5600x out of the box thank heavens.

    Helpful(0) Unhelpful(0)You have already voted this
  4. Richard S.

    Pros: If you’re getting a Ryzen AM4 CPU, this is a great board. Be mindful that it only has 4 onboard SATA ports. Cons: No cons. It does what it’s supposed to, does it well, and you won’t be disappointed. Unless you don’t like AORUS. Overall Review: Overall, it’s a great board to build a system on.

    Helpful(0) Unhelpful(0)You have already voted this
  5. Alex

    Pros: Works like a charm. Has enough USB ports as well and was easy to update the bios without having a CPU. Cons: Havent had any yet. Overall Review: Works great, enough ports and M.2 slots with heat shields is a plus.

    Helpful(0) Unhelpful(0)You have already voted this
  6. Anonymous

    Pros: Reinforced PCIe slot is nice. Makes me feel a bit better about the weight of today’s GPUs (if you can find one). Built-in I/O shield is lovely. I really disliked installing those. Multiple headers for RGB LEDs, both 12V and 5V options. Cons: Only 3 fan headers from what I can tell. I guess we are in the age of fan controllers now though, really no big deal. Overall Review: I’m coming from a Z97 board with a 4790K so perhaps these features are commonplace now. Having a great experience…

    Helpful(0) Unhelpful(0)You have already voted this
  7. TREVOR K.

    Pros: 2 NVME slots is a plus Great wifi built in Easy to flash bios to use Ryzen 5000 series with Q flash plus. Cons: Minimal RGB. Maybe just a little too pricey. Get it on sale. Overall Review: I do wish for a product to be called AORUS that it had a bit more RGB on it, but I could see why some people might feel we have too much RGB as it is across everything

    Helpful(0) Unhelpful(0)You have already voted this
  8. Daniel C.

    Pros: I dont know why more people dont have positive ratings for this. Cons: Have to bios update for ryzens 5000 set. No, repeat, NO support for crossfire/sli. Overall Review: Great board. First in over a decade and has far surpassed anything i could have dreamed of.

    Helpful(0) Unhelpful(0)You have already voted this
