GIGABYTE B550 AORUS ELITE

$268.99

(8 customer reviews)
Last updated on May 25, 2022 8:16 am
0
Add to compare

Highest Price
$132.82 Amazon.com
May 13, 2024
Lowest Price
$99.00 eBay
November 8, 2024
Current Price
$268.99 Walmart.com
May 25, 2022
Since May 13, 2024

Specification: GIGABYTE B550 AORUS ELITE

Product
Brand

Model

B550 AORUS ELITE

Product Type
Type

AMD

Specification
Best Seller Ranking

#58 in AMD Motherboards

Onboard Video Chipset

Integrated in the New Generation AMD Ryzen with Radeon Graphics processors:1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Maximum shared memory of 16GB

Features

I/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install.BIOS:1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress InstallBundled Software:Norton Internet Security (OEM version)Realtek 8125 Gaming LAN Bandwidth Control UtilityOperating System:Support for Windows 10 64-bit

Windows 11

Supported

Power Pin

1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector

Dimensions W x L

12.0" x 9.6"

LED Lighting

RGB

Form Factor

ATX

Other Connectors

1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x CPU cooler LED strip/RGB LED strip header2 x addressable LED strip headers2 x RGB LED strip headers1 x front panel header1 x front panel audio header1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper

Onboard USB

1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers

Back IO Ports

1 x DisplayPort1 x HDMI port2 x USB 3.2 Gen 2 Type-A ports (red)4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x Q-Flash Plus button1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacks

Max LAN Speed

10/100/1000/2500Mbps

LAN Chipset

Realtek 2.5GbE LAN chip

Audio Channels

2/4/5.1/7.1-channelSupport for S/PDIF Out

Audio Chipset

Realtek ALC1200

SATA RAID

0/1/10

M.2

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:- 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs- New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:- Supporting SATA and PCIe 3.0 x4/x2 SSDs

SATA 6Gbs

4 x SATA 6Gb/s

PCI Express x1

1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:- Supporting PCIe 3.0 x1 mode

PCI Express 3.0 x16

1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:- Supporting PCIe 3.0 x2 mode1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:- Supporting PCIe 3.0 x1 mode

PCI Express 4.0 x16

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:- 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode- New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Channel Supported

Dual Channel

Memory Standard

2133 MHz memory modules, 2133 MHz memory modulesNew Generation AMD Ryzen with Radeon Graphics processors:Support for DDR4 4733(O.C.), 2400, 2667, 2933, 3200, 3333(O.C.), 3600(O.C.), 3rd Gen AMD Ryzen Processors:Support for DDR4 4000(O.C.), 4000(O.C.), 4400(O.C), 4600(O.C)

Number of Memory Slots

4x288pin (DDR4)

Chipset

AMD B550

CPU Socket Type

AM4

Date First Available

March 20, 2022

CPU Type Support

3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors* Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list., AMD Socket AM4, support for: AMD Ryzen 5000 Series

Max Memory Supported

128GB

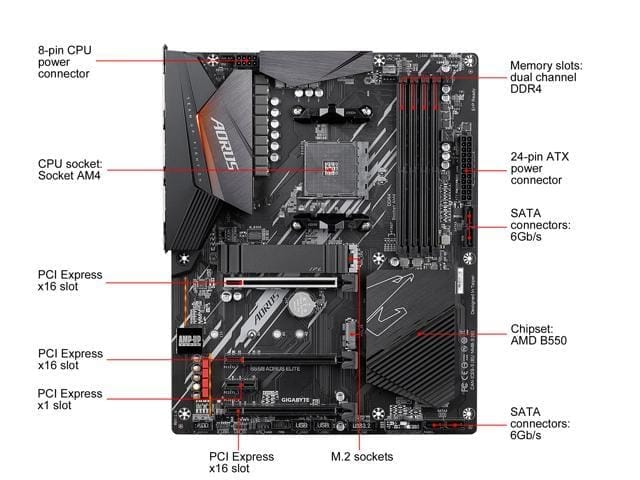

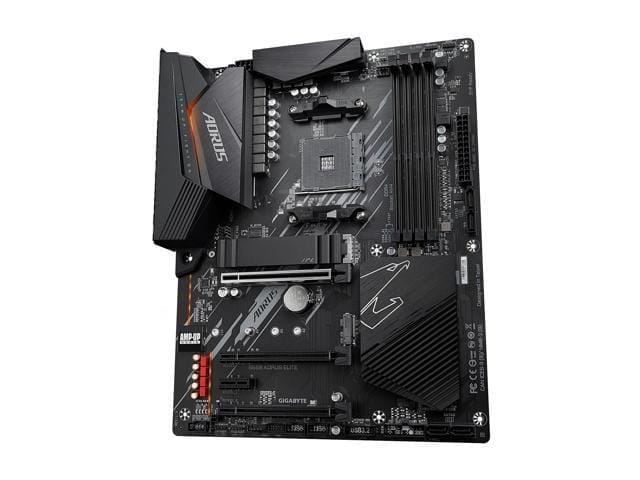

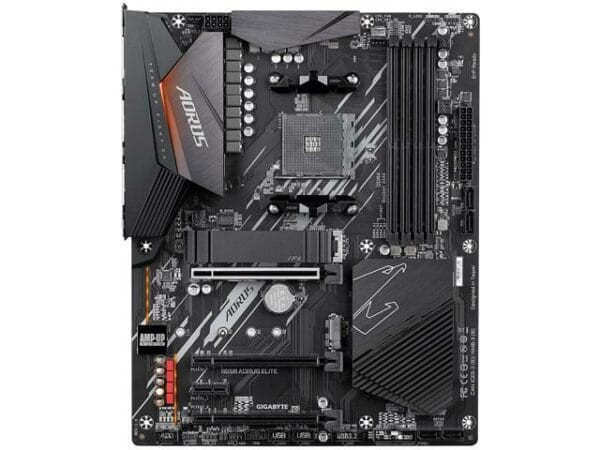

Photos: GIGABYTE B550 AORUS ELITE

8 reviews for GIGABYTE B550 AORUS ELITE

4.5 out of 5
5
2
1
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Anonymous

    Overall Review: Was able to use the xmp profile for my gskill 3200 ram and haven’t had a problem yet.

    Helpful(0) Unhelpful(0)You have already voted this
  2. Anonymous

    Pros: Really nice looking. Good feature set for modest gaming build. Overall Review: Everything worked first try when I booted it up. bios was easy to navigate and change my RAM settings. I like the small RBGs on the board which you can control with a dedicated app that I got from the motherboard website. I went for a green theme to match my GTX 1070 my friend gave me. I got this motherboard to future proof myself. And best upgrade path.

    Helpful(0) Unhelpful(0)You have already voted this
  3. Anonymous

    Pros: Design, thermals, ease of use Overall Review: I’ve only been using the board for a couple days, but everything has been smooth so far. Installation was easy out of box and there is a ton of convenient and robust bios options to adjust to your liking. I did have a small issue with the screw for the m.2 thermal covering, but thankfully had an extra screw to use. I will update review more in-depth as time goes on, but so far so good.

    Helpful(0) Unhelpful(0)You have already voted this
  4. David R.

    Pros: Love the board! Right on the edge of being above mid tier board but not costing to much. The machined aluminum shields that cover the VRMs and the Chipset are high quality. The SATA cables headers were in convenient places. The board build quality is good. The convenient shield (with sticky tape) for the M.2 is awesome. The Look is also pleasing and the ranforced PCIe slot is great. The integrated audio is also above average. Not to mention the preinstalled IO shield. All of these…

    Helpful(0) Unhelpful(0)You have already voted this
  5. David S.

    Pros: Unknown Overall Review: I know Gigabyte makes solid products I unfortunately got a dud. I’ll update my review if I an get a replacement.

    Helpful(0) Unhelpful(0)You have already voted this
  6. Anonymous

    Pros: -Customizable RGB -Good looks -Feels premium -Upgradability -Compatible with future fourth gen ryzen (zen 3) Cons: – I had problems installing the mobo in the case, because of the fixed io shield – It haves RGB, but it is sometimes unnoticeable. Overall Review: Definetely a good purchase, will reccomend it over an overpriced B450 cough… tomahawk … cough

    Helpful(0) Unhelpful(0)You have already voted this
  7. Anonymous

    Pros: 2.5G Ethernet Big heat syncs Cons: There is a lot left on the table when it comes to the LEDs on the board. When set to white they look dirty beige, so I just turned them off. The only colors that really look good are red, orange, and blue. Gigabytes aoura software also seems straight out of 2010 Overall Review: I think that this a good board for the price. Definitely good value.

    Helpful(0) Unhelpful(0)You have already voted this
  8. bad_juju2

    Pros: I got this motherboard installed yesterday and i was worried while doing it that My BIOS might have to be updated before my Ryzen 5 2600 Would work boy was i wrong once i re did my cable management got everything installed she fired right up. i would say the only issue i had was everything was sluggish at first now it’s working fine. i love the look of the board as well as clean it looks they really took their time on R & D on this board plus hey i got a free case decal with it SCORE….

    Helpful(0) Unhelpful(0)You have already voted this
