CORSAIR SF600 600W 80 PLUS GOLD

$146.21

(8 customer reviews)
Last updated on January 17, 2025 8:25 pm
0
Add to compare

Highest Price
$259.00 Newegg.com
October 19, 2024
Lowest Price
$120.61 Walmart.com
January 24, 2025
Current Price
$146.21 Amazon.com
January 18, 2025
Since October 19, 2024
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Didn't find the right price? Set price alert below

Set Alert for Product: Corsair SF Series, SF600, 600 Watt, Fully Modular Power Supply, 80+ Gold Certified - $146.21

Specification: CORSAIR SF600 600W 80 PLUS GOLD

Product
Brand

Model

SF600

Series

SF Series

Specification
Best Seller Ranking

#30 in Power Supplies

CrossFire

CrossFire Ready

Weight

1.90 lbs.

Dimensions

2.50" x 4.92" x 3.94"

Features

92mm thermally controlled fan with Zero-RPM modeEngineered to meet maximum power output at a 40C temperature rating.The latest ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and ATX12V 2.01 systems.6th generation Intel® Core™ processor Ready (Intel Skylake and Z170 motherboards).Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safetyto your critical system components.Safety and Agency Approvals: FCC, ICES, CE, UL, CUL, RCM, TUV, CB, CCC, BSMI, EAC, RoHS, WEEE, RoHS (China), KC

Connectors

1 x Motherboard cable (20+4 pin)1 x CPU power Cable( 4+4-pin, works as either 4 or 8-pin)2 x PCIe 6+2 pin (GPU)4 x 4-pin peripheral cable4 x SATA cable

Max PSU Length

100 mm

Output

+3.3V@20A, +5V@20A, +12V@50A, -12V@0.3A, +5VSB@2.5A

Input Current

10A – 5A

Input Frequency Range

47 – 63 Hz

Input Voltage

100 – 240 V

Energy-Efficient

80 PLUS GOLD Certified

Modular

Full Modular

Haswell Support

Yes

SLI

SLI Ready

SATA Power Connector

4

PCI-Express Connector

2 x 6+2-Pin

+12V Rails

Single

Main Connector

20+4Pin

PFC

Active

Fans

1

Maximum Power

600 W

Type

SFX

Date First Available

March 10, 2016

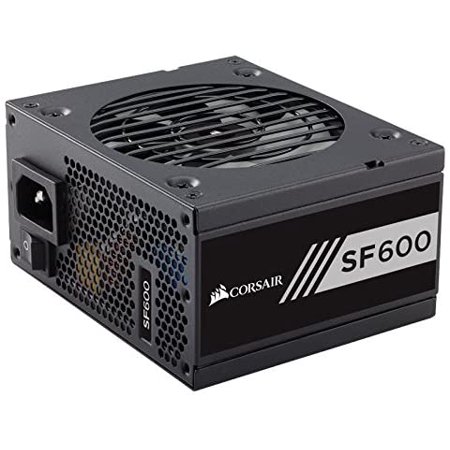

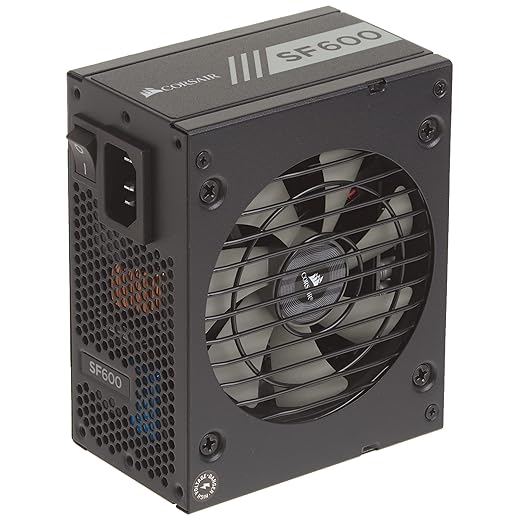

Photos: CORSAIR SF600 600W 80 PLUS GOLD

8 reviews for CORSAIR SF600 600W 80 PLUS GOLD

5.0 out of 5
8
0
0
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Matthew M.

    Pros: • Platinum rating means extreme efficiency (especially if you are well below the power rating) and cooler running. Which is extremely important for small builds. • Platinum rating is achieved by using the best components available more than clever circuit design. So, this is a top tier PSU by any measure. Hard to beat regulations across the board. This thing is a tank. • Quiet (not audible over any case fan) to absolute silent operation. • Modular with slightly more flexible than usual…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Brian M.

    Pros: * Great passive fanless mode, especially for a SFX PSU. The fan on my gaming PC managed to stay off entirely during non-gaming loads. While gaming it did spin up, but was totally inaudible compared to the rest of my PC. It seemed about the same as other ATX PSU’s I’ve used in the past, which is saying a lot considering how small the SF600 is. If you value noise, it’s a great option. * Braided cables. I was totally surprised by this because I haven’t seen it in a while, even on high-end…

    Helpful(0) Unhelpful(0)You have already voted this
  3. David S.

    Pros: I installed this power supply in my home server running Windows Servers Essential 2016. It’s powered with an Asus MB, AMD FX8350 and 32GB ram, 1 SSD and 2 8GB HGST drives. I replaced the 650W Earthwatts power supply with this. As the sever runs 24/7 I was hoping to quiet down the noise from the constantly running fan of the power supply. The included adapter allowed me to do a direct swap of the power supplies even though the SF600 is designed for SFX systems, it fit perfectly in my…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Peter L.

    Pros: When I opened the box I couldn’t believe how small this thing is, about half the size and weight of my current ATX PSU, yet still supplying more than adequate power with a Platinum rating. It installed like a charm in my Fractal Define R4 mid tower case after I attached the mounting plate. Note: This was only possible as it was replacing (for testing purposes) a Corsair RM850X, which has long enough (and more importantly, pin-out compatible) cables to reach the motherboard headers and…

    Helpful(0) Unhelpful(0)You have already voted this
  5. Patrick S.

    Pros: Corsairs SF750 SFX Power Supply is a Small Form Factor power supply with ATX pin compatible in reduced dimensions. This is a nice unit and is Platinum +80 rated. It does not have those horrible flat cables. They are braided, individually sleeved cables. It also incorporates a zero RPM fan mode that does not come on till 40% load. Even under load its whisper quiet. According to the reviews it has excellent voltage regulation along with very good AC ripple suppression at full load. 7…

    Helpful(0) Unhelpful(0)You have already voted this
  6. Nicholas T.

    Pros: This high-end SFX power supply checks all the boxes: Modular Quiet (including silent mode) 750W is more than enough Compact Platinum efficiency rating Shorter cables for less clutter in a compact case High quality power delivery with great voltage regulation Overall a great choice for any high-end small form factor build. Cons: The higher price reflects the feature set and form factor. If you don’t need all the power, the compact size, etc – there are cheaper models available. Overall…

    Helpful(0) Unhelpful(0)You have already voted this
  7. Nathan R.

    Pros: High Quality Power for a SFX PSU. 750W is more than enough for just about any small form factor PC. Fully Modular Corsair warranty and brand quality. Quiet Cons: It’s not cheap. But that doesn’t mean it isn’t worth it either. Overall Review: When small form factor PCs became all the rage and SF and SFX PSUs came along, I didn’t think we’d see wattage ratings much higher than 500-600. So it’s nice to see that there are good quality options coming on to the market that are fairly priced….

    Helpful(0) Unhelpful(0)You have already voted this
  8. Mark E.

    Pros: – 7 Year Warranty!!! – Single 12V Rail with up-to 50Amps of power! – Dead silent operation. – Braided Cables. – Fully Modular Design. Cons: None. Overall Review: Keep in mind there is also a Gold Rated one with the same exact name. Be sure you are buying the correct version.

    Helpful(0) Unhelpful(0)You have already voted this
