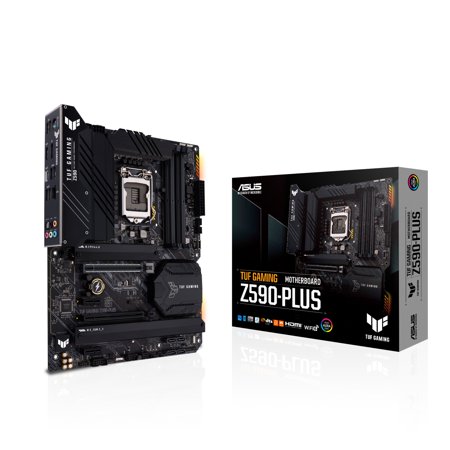

ASUS TUF Gaming Z590-Plus

$224.42

(8 customer reviews)
Last updated on February 16, 2025 9:50 pm
0
Add to compare

Highest Price
$212.63 Walmart.com
September 28, 2024
Lowest Price
$129.99 eBay
February 23, 2025
Current Price
$224.42 Amazon.com
February 17, 2025
Since September 28, 2024
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Didn't find the right price? Set price alert below

Set Alert for Product: ASUS TUF Gaming Z590-Plus, LGA 1200 (Intel11th/10th Gen) ATX Gaming Motherboard (PCIe 4.0, 3xM.2/NVMe SSD, 14+2 Power Stages,USB 3.2 Front Panel Type-C, 2.5Gb LAN, Thunderbolt 4, Aura RGB Lighting) - $224.42

Specification: ASUS TUF Gaming Z590-Plus

Product
Brand

Model

TUF GAMING Z590-PLUS WIFI

Product Type

Intel

Specification
Best Seller Ranking

#3 in Intel Motherboards

Audio Chipset

Realtek ALC S1200A

LAN Chipset

Intel I225-V

Max LAN Speed

10/100/1000/2500Mbps

Wireless LAN

Intel Wi-Fi 6802.11 a/b/g/n/ac/ax

Bluetooth

Bluetooth 5.0

Back IO Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)2 x USB 3.2 Gen 2 ports (2 x Type-A)2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort1 x HDMI port1 x ASUS Wi-Fi Module1 x Intel I225-V 2.5Gb Ethernet port5 x Audio jacks 1 x Optical S/PDIF out port1 x PS/2 Keyboard/Mouse combo port

Onboard USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio Channels

7.1 Channels

Other Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersMiscellaneous2 x AURA Addressable Gen 2 headers2 x AURA RGB headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP) 1 x 20-3-pin System Panel header with Chassis intrude function1 x Thunderbolt header

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connector

Windows 11

Supported

Features

Special Features:ASUS TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- Enhanced DRAM Overcurrent Protection- TUF LANGuard – Overvoltage ProtectionASUS Q-Design – M.2 Q-Latch- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- ProCool- Pre-mounted I/O shield- SafeSlotAURA Sync- AURA RGB headers- Addressable Gen 2 RGB headersSoftware Features:ASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA Sync- Two-Way AI Noise CancelationAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPU Digi+ VRMFan Xpert 4 – EZ updateTUF GAMING CPU-ZAI Charger ASUS Turbo LANDAEMON ToolsDTS Custom for GAMING HeadsetsMyASUSNorton Anti-virus software (Free Trial version) WinRARUEFI BIOSASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ ModeBIOS:192 (128+64) MB Flash ROM, UEFI AMI BIOSManageability:WOL by PME, PXE Operating System: Windows 10 64-bit

Package Contents

Accessories:Cables:2 x SATA 6Gb/s cables Miscellaneous:1 x ASUS Wi-Fi moving antennas 2 x M.2 Rubber Packages1 x M.2 SSD screw package1 x TUF Gaming stickerInstallation Media:1 x Support DVDDocumentation:1 x TUF Certification card1 x User manual

Form Factor

ATX

Intel Optane Ready

To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.

Memory Standard

2133 natively, 2133 natively.* 10th Gen Intel Core i7, 2133** 11th Gen Intel processors support 3200, 2400, 2666, 2800, 2933, 3000, 3200, 3333(OC), 3400(OC), 3466(OC), 3600(OC), 3733(OC), 3866(OC), 4000(OC), 4133(OC), 4266(OC), 4400(OC), 4500(OC), 4600(OC), 4700(OC), 4800(OC), 5000(OC), and memory frequency support depends on the CPU types., DDR4 5133(OC), i9 processors support 2933, others will run at the maximum transfer rate of DDR4 2666.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

M.2

Intel 11th Gen Processors:M.2_1 slot (Key M), type 2242/2260/2280/22110- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUsIntel Z590 Chipset:M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled.

Supported CPU Technologies

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel Z590

Onboard Video Chipset

Supported only by CPU with integrated graphic

Number of Memory Slots

4x288pin (DDR4)

Channel Supported

Dual Channel

PCI Express 4.0 x16

1 x PCI Express 4.0 x16** Actual support may vary by CPU.

PCI Express 3.0 x16

1 x PCI Express 3.0 x16** Supports x4 mode.

PCI Express x1

2 x PCIe 3.0 x1

SATA 6Gbs

6 x SATA 6Gb/s

Date First Available

February 09, 2022

Max Memory Supported

128GB

CPU Socket

LGA 1200

CPU Support

10th Gen Intel Core ProcessorsSupports Intel Pentium Gold, Celeron Processors* Refer to www.asus.com for CPU support list., Supports 11th

Photos: ASUS TUF Gaming Z590-Plus

8 reviews for ASUS TUF Gaming Z590-Plus

4.8 out of 5
7
0
1
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Maher Khan

    Pros: Supports PCIE Gen 4 Supports 11th gen Intel processors Really good build quality Looks amazing! Cons: Doesn’t have a TPM header Could use more USB A ports Pricy! Overall Review: Overall, this is an amazing motherboard and exceeded my expectations. I chose to get a z590 board instead of a previous gen z490 because of the extra features like pcie gen 4 and better integration with the 11th gen intel processors. For now, I bought a 10th gen intel processor since they are on sale almost…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Scott

    Overall Review: My current pc lasted 12 years (trusty ga-x58a-udr3) and is still going strong but was time for an upgrade. While I don’t do significant gaming, I want something that is up to the task but will also last for awhile. For the price and features, this TUF z590 is great. Booted up without any issues. The BIOS is a nice change from what I had and the build quality is excellent. I use a discrete gpu but having the onboard graphic outputs were a requirement as I believe they are…

    Helpful(0) Unhelpful(0)You have already voted this
  3. Wes Shull

    Pros: Overclocked to 5.1 on my i7-10700K without any work other than to use the Asus suite. Because the 1200 LGA mounts are compatible w/1150 my older EKWB CPU water block fit perfectly. I was also able to mix same company and similar speed but different RAM size (2×8 & 2×16) at 3600 w/o issue as well (made a mistake while ordering…but it works!) Cons: User manual was light…covered the basics but it could use a redo. I would add a complete OC guide as well…although understand from…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Anonymous

    Pros: I upgraded my PC from an I5 4670K 16GB RAM to an i7 10700K 2*16GB .. what a huge gap and wonderful performance !!! Love it.. I re-discover all my games… wonderful !!! It’s the best choice right now when you consider price and avaibility about AMD cpu…Motherboard works perfectly. BIOS very friendly, XMP easily to apply and immediatly recognize my ram with good seetings..No LAN issue with Intel network chip.Bluetooth, wifi works perfectly…I recommend thix Z590 motherboard. Cons:…

    Helpful(0) Unhelpful(0)You have already voted this
  5. Joseph L.

    Pros: Too many to list. You saw the posting lol. Cons: The Ram slots are kinda close to the CPU but that’s only a con if you want massive coolers. Overall Review: I love this board and would definitely suggest it to others.

    Helpful(0) Unhelpful(0)You have already voted this
  6. Andrew M.

    Pros: – Went together well and ran with no issues. – Good performance. – ASUS UEFI BIOS setup is good and makes setup a breeze. Cons: – Manual could be laid out better, but the info all seems to be there. – Not all of the MB connectors have ID info silk screened on the board. – Doesn’t work well with the Noctua NH-D15 heat sink if you need front-to-back CPU airflow – the Noctua fan interfered with the DDR4 at the the heat sink inlet and the VRM heat sink at the heatsink exit. The middle fan…

    Helpful(0) Unhelpful(0)You have already voted this
  7. techgal128

    Pros: -Easy install -Actually durable -Wifi antenna has a long cable and a stand so it’s actually decent wifi signal Cons: -I have a large CoolerMaster CPU fan which overlaps one of the RAM slots. This will be an issue if I choose to upgrade the memory in the future. -Limited expansion slots but it was enough for me. Overall Review: I had a CoolerMaster fan short this board out (pure metal on metal). Luckily, the board did not fry and booted fine when I fixed the short. Not sure if I got…

    Helpful(0) Unhelpful(0)You have already voted this
  8. Calvin J.

    Pros: I got this with a bundle. It’s a decent mobo with lots of features and decent layout. Once up and running it worked fine. Cons: The onboard display port would not display on first boot. I had to dig out and older monitor and use the hdmi connection to get it up and running. Once Windows 11 was loaded, the onboard display port would only do 640×480 on my Asus monitor (couldn’t find a fix, maybe it’s an issue with this mobo and my older Asus gsync monitor). 2nd issue was that my M.2…

    Helpful(0) Unhelpful(0)You have already voted this
