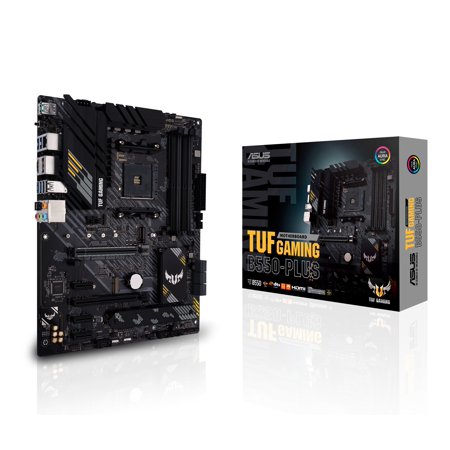

ASUS TUF GAMING B550-PLUS Gaming

$126.03

(8 customer reviews)
Last updated on April 2, 2025 6:20 pm
0
Add to compare

Highest Price
$252.99 Walmart.com
October 19, 2024
Lowest Price
$100.00 eBay
April 4, 2025
Current Price
$126.03 Amazon.com
April 2, 2025
Since October 19, 2024
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Didn't find the right price? Set price alert below

Set Alert for Product: ASUS TUF Gaming B550-PLUS AMD AM4 Zen 3 Ryzen 5000 & 3rd Gen Ryzen ATX Gaming Motherboard (PCIe 4.0, 2.5Gb LAN, HDMI 2.1, BIOS Flashback, USB 3.2 Gen 2, Addressable Gen 2 RGB Header and Aura Sync) - $126.03

Specification: ASUS TUF GAMING B550-PLUS Gaming

Product
Brand

Model

TUF GAMING B550-PLUS

Product Type

AMD

Specification
Best Seller Ranking

#44 in AMD Motherboards

Form Factor

ATX

LAN Chipset

Realtek RTL8125B

Max LAN Speed

10/100/1000/2500Mbps

Back IO Ports

1 x DisplayPort1 x HDMI1 x LAN (2.5G) port(s)2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C)4 x USB 3.2 Gen 1 (blue) Type-A2 x USB 2.0 (one port can be switched to USB BIOS FlashBack)1 x Optical S/PDIF out5 x Audio jack(s)1 x BIOS FlashBack Button(s)

HDMI

1 x HDMI

USB 3.0

2 x USB 3.0

Other Connectors

1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x SPI TPM header1 x Thunderbolt header(s)1 x Front panel audio connector(s) (AAFP)1 x Thermal sensor connector(s)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header

SATA RAID

0/1/10

Onboard Video Chipset

Supported only by CPU with integrated graphic

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin Main Power connector1 x 8-pin +12V Power connector

Windows 11

Supported

Features

Multi-GPU Support:Supports AMD 2-Way CrossFireX Technology Software Features:ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- AI Noise Cancelling MicrophoneAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ updateTUF GAMING CPU-ZAI ChargerASUS Turbo LANDAEMON ToolsDTS Custom for GAMING HeadsetsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeASUS Special Features:ASUS TUF PROTECTION- ASUS DIGI+ VRM (Digital power design with Dr. MOS)- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- ASUS Q-SlotASUS Thermal Solution- Aluminum M.2 heatsinkASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LED- ProcoolAURA Sync- Standard RGB headers- Addressable Gen 2 RGB headerBIOS:256MB Flash ROM, UEFI AMI BIOSManageability:WOL by PXEOperating System:Windows 10 64-bit

Package Contents

Accessories:User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x TUF Gaming Sticker1 x TUF Certification card(s)1 x M.2 SSD screw package(s)1 x M.2 Rubber Package(s)

Audio Chipset

Realtek ALC S1200A

Audio Channels

7.1 Channels

Onboard USB

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Channel Supported

Dual Channel

Chipset

AMD B550

Number of Memory Slots

4x288pin (DDR4)

Memory Standard

2133 (AMD Ryzen 4000 G-Series Processors)DDR4 4600(OC), 2133 (AMD Ryzen 5000 Series, 2400, 2666, 2800, 3000, 3000 Series Desktop Processors)** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., 3200, 3333(OC), 3466(OC), 3600(OC), 3733(OC), 3866(OC), 4000(OC), 4133(OC), 4266(OC), 4400(OC), 4466(OC), 4600(OC), DDR4 4800(OC)

M.2

AMD Ryzen 5000 Series, 3000 Series Desktop Processors:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIe 4.0 x4 mode)AMD Ryzen 4000 G-Series Processors:1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices supportAMD B550 Chipset:1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support** M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.

Buffer Supported

Un-buffered

PCI Express 4.0 x16

1 x PCI Express 4.0 x16* Actual support may vary by CPU.

PCI Express 3.0 x16

1 x PCI Express 3.0 x16** x4 mode.* PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.

PCI Express x16

None

PCI Express x1

3 x PCIe 3.0 x1

Other Slots

M.2 slot only (Key E) (Support PCIe interface)** Wi-Fi module is sold separately.

SATA 6Gbs

6 x SATA 6Gb/s

Date First Available

February 09, 2022

Max Memory Supported

128GB

CPU Socket

AM4

CPU Support

3000 Series Processors* Refer to www.asus.com for CPU support list.* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU., 4000 G, Supports AMD Ryzen 5000

ECC

Yes

Photos: ASUS TUF GAMING B550-PLUS Gaming

8 reviews for ASUS TUF GAMING B550-PLUS Gaming

5.0 out of 5
8
0
0
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Anonymous

    Pros: I’m new to PC building and I really liked the manual that came with this. The pictures and instructions were pretty straightforward. The Asus BIOS system is also easy to use. Cons: One con that I can say for now is that there are only 3 chassis fan headers and two of them are located at the bottom which was a bit inconvenient for the fans I had used. Overall Review: Overall, it works great for the price and I’m happy to have it.

    Helpful(0) Unhelpful(0)You have already voted this
  2. Daniel A

    Pros: Genuinely surprised at the quality of the motherboard, it just feels nice. Plenty of USB’s The lighting is minor and doesn’t provide a whole lot of lighting but it is a nice little detail. Cons: none Overall Review: Was very pleased with the motherboard. Had no issues with installing everything onto it plus it comes with plenty of RGB and fan headers so that you can put exactly what you need. Bios was easy to use and very user friendly.

    Helpful(0) Unhelpful(0)You have already voted this
  3. Anonymous

    Cons: – just the back panel is a bit off. had to modify the hole for the bios button. would get stuck in after pressed. Overall Review: i would defiantly recommend this board to anyone wanting a good solid asus board for gamming.

    Helpful(0) Unhelpful(0)You have already voted this
  4. Stephen A.

    Pros: Easy install. Clear labeling. Fast M2 slot! Cons: Didn’t get the right I/O cover and contacted ASUS who said they don’t have any in stock! WTH? Overall Review: Would recommend!

    Helpful(0) Unhelpful(0)You have already voted this
  5. Gary K.

    Overall Review: I’ve had three good builds with Asus MB ‘s from the Athlon era, and this B550 board did not disappoint me. I could quibble about pin locations, side facing SATA ports, and having to cut the button side of the port shield, but these minor things apply to other boards, too. The flashback feature saved my Ryzen 5600x cpu install. The BIOS download instructions for flashback on Asus website are very literal and must be followed to the letter, as I learned. 1. Use the rename tool…

    Helpful(0) Unhelpful(0)You have already voted this
  6. Brendon B.

    Pros: I guess if were doing Pros, the motherboard didn’t have so many bells and whistles that it took a Ph.D to piece together properly. Its large enough and easy enough to deal with that you wont really have many issues once you know what youre up to Cons: Cons, well this things really doesn’t have any actual instructions which is extremely difficult to work with if its your first time ever piecing together a motherboard or a PC in general Also i wish it came with a third internal usb…

    Helpful(0) Unhelpful(0)You have already voted this
  7. Michael P.

    Pros: I may not ever use it but the Bios flash/update features are nice. PCI-E 4.0 and RGB headers. Nice dashboard thing when you boot into the BIOS in basic mode. Cons: For some it’s a Con, for others it may not matter. It has the compatibility support module disabled by default. I had to enable it in order to see more boot options and allow it to find Windows that I had installed with a different system. It wouldn’t boot until I did this. Overall Review: It’s fancy and reasonably priced….

    Helpful(0) Unhelpful(0)You have already voted this
  8. Mathias

    Pros: Easy to build with, decent Bios, and looks great Cons: wont regester that AIO while plugged into the AIO pump connecter is cooling CPU and requires a fan to be plugegd into CPU header to boot. Overall Review: great Motherboard overall

    Helpful(0) Unhelpful(0)You have already voted this
