ASUS TUF GAMING A520M-PLUS

$97.99

★★★★★
(2 customer reviews)
Last updated on February 17, 2025 1:40 am

Best $ Amazon.com

0
Add to compare

Highest Price
$118.32 Walmart.com
December 17, 2024
Lowest Price
$97.99 Amazon.com
February 23, 2025
Current Price
$97.99 Amazon.com
February 17, 2025
Since September 8, 2024
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Didn't find the right price? Set price alert below

Set Alert for Product: ASUS TUF Gaming A520M-PLUS (WiFi) AMD AM4 (3rd Gen Ryzen™) microATX Gaming Motherboard (M.2 Support, 802.11ac Wi-Fi, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-A and Aura Addressable Gen 2 headers) - $97.99

Specification: ASUS TUF GAMING A520M-PLUS

Product
Brand

Model

TUF GAMING A520M-PLUS WIFI

Product Type

AMD

Specification
Best Seller Ranking

#70 in AMD Motherboards

Other Connectors

Fan and cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersMiscellaneous2 x AURA Addressable Gen 2 header2 x AURA RGB headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header

Audio Channels

7.1 Channels

LAN Chipset

Realtek 1Gb Ethernet

Max LAN Speed

10/100/1000Mbps

Wireless LAN

Realtek Wi-Fi 5 8821CE802.11a/b/g/n/ac

Bluetooth

Bluetooth 5.0

Back IO Ports

4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI port1 x D-Sub1 x ASUS Wi-Fi Module1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x BIOS FlashBack button1 x PS/2 Keyboard/Mouse combo port

Onboard Video Chipset

Supported only by CPU with integrated graphic

Onboard USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 3 USB 2.0 ports

Form Factor

Micro ATX

LED Lighting

RGB

Dimensions W x L

9.6" x 9.6"

Power Pin

1 x 24-pin Main Power connector1 x 8-pin +12V Power connector

Features

Special Features:ASUS TUF PROTECTION- DIGI+ VRM- ESD Guards- TUF LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-SlotASUS Thermal Solution- VRM heatsink designASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LEDAURA Sync- AURA RGB headers- Addressable Gen 2 RGB headersSoftware Features:ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura SyncAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDIGI+ VRMFan Xpert 2+- EZ update- PC Cleaner- System InformationTUF GAMING CPU-ZAI ChargerASUS Turbo LANDAEMON ToolsMyAsusNorton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeBIOS:128 Mb Flash ROM, UEFI AMI BIOSManageability:WOL by PME, PXEOperating System:Windows 10 64-bit

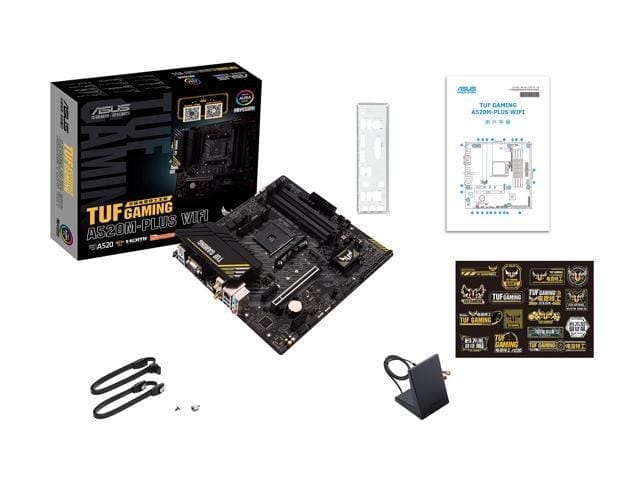

Package Contents

Accessories: Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 SSD screw package1 x ASUS Wi-Fi moving antenna1 x TUF Gaming stickerInstallation Media1 x Support DVDDocumentation1 x TUF Certification card1 x User manual

Audio Chipset

Realtek ALC887/897

SATA RAID

0/1/10

M.2

1 x M.2 slot, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

SATA 6Gbs

4 x SATA 6Gb/s

PCI Express x1

2 x PCIe 3.0 x1

PCI Express 3.0 x16

1 x PCI Express 3.0 x16

Buffer Supported

Un-buffered

Channel Supported

Dual Channel

Memory Standard

2133* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., 2400, 2666, 2800, 3000, 3200, 3333(OC), 3466(OC), 3600(OC), 3733(OC), 3866(OC), 4000(OC), 4133(OC), 4266(OC), 4400(OC), 4466(OC), 4600(OC), 4800(OC), and memory frequency support depends on the CPU types., DDR4 4866(OC)

Number of Memory Slots

4x288pin (DDR4)

Chipset

AMD A520

Date First Available

July 15, 2021

Max Memory Supported

128GB

CPU Socket

AM4

CPU Support

3000 Series Processors** Refer to www.asus.com for CPU support list., 4000 G-Series, 5000 G-Series, Supports AMD Ryzen 5000 Series

ECC

Yes

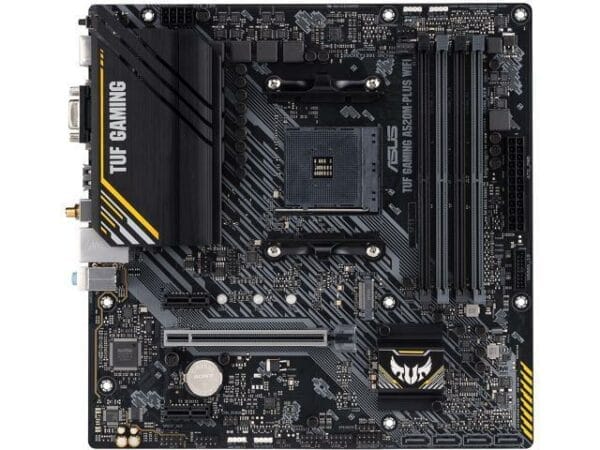

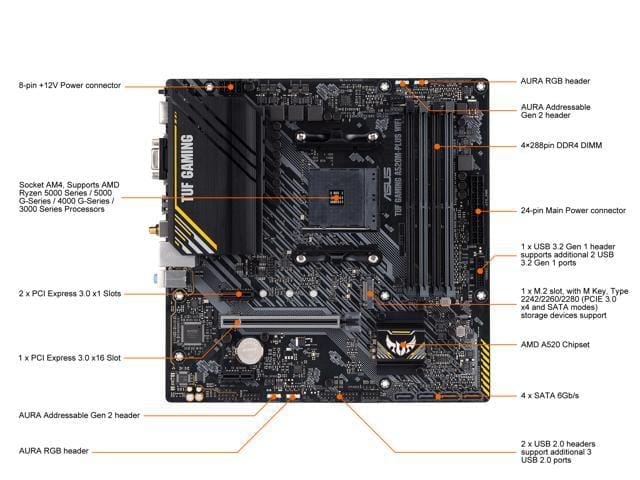

Photos: ASUS TUF GAMING A520M-PLUS

ASUS TUF GAMING A520M-PLUS ASUS TUF GAMING A520M-PLUS

2 reviews for ASUS TUF GAMING A520M-PLUS

4.5 out of 5
★★★★★
★★★★★
1
★★★★★
1
★★★★★
0
★★★★★
0
★★★★★
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. ★★★★★

    Steven M. –

    Pros: Micro ATX Nice features Cons: Not compatible with Ryzen 5 5600G Overall Review: I thought this was a very nicely done motherboard from Asus, compact with lots of features. Newegg lists it as accepting/compatible with Ryzen 5000G series CPUs. BEWARE! IT IS NOT! Had to figure that out with Asus Support I had to return it to get a motherboard that is compatible with Ryzen 5000G Newegg needs to correct the description

    Helpful(0) Unhelpful(0)You have already voted this
  2. ★★★★★

    Anonymous –

    Pros: Fast shipping, got it 3 days after I purchased. Easy no install. Connecting pins are all easy to access. Cons: None Overall Review: Lives up to and beyond expectations

    Helpful(0) Unhelpful(0)You have already voted this
