ASUS ROG Strix Z690-A Gaming

$336.04

(8 customer reviews)
Last updated on August 15, 2025 7:22 am
0
Add to compare

Highest Price
$418.61 Walmart.com
April 17, 2025
Lowest Price
$300.00 eBay
August 25, 2025
Current Price
$336.04 Newegg.com
August 15, 2025
Since March 3, 2025
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Didn't find the right price? Set price alert below

Set Alert for Product: ASUS ROG Strix Z690-A Gaming WiFi D4 LGA 1700 Intel 12th Gen ATX Gaming Motherboard- PCIe 5.0, DDR4, 16+1 Power Stages, WiFi 6, Intel 2.5 Gb LAN, Bluetooth v5.2, Thunderbolt 4, 4xM.2/NVMe SSD - $336.04

Specification: ASUS ROG Strix Z690-A Gaming

Product
Brand

Model

STRIX Z690-A GAMING WIFI D4

Product Type

Intel

Specification
Best Seller Ranking

#1 in Intel Motherboards

Intel Optane Ready

Yes

Audio Channels

7.1 Channels

LAN Chipset

Intel 2.5Gb Ethernet

Max LAN Speed

10/100/1000/2500Mbps

Wireless LAN

Wi-Fi 6802.11a/b/g/n/ac/ax

Bluetooth

Bluetooth 5.2

Back IO Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort1 x HDMI port1 x Wi-Fi Module1 x Intel 2.5Gb Ethernet port5 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button

Audio Chipset

Realtek ALC4080

Onboard USB

1 x USB 3.2 Gen 2×2 connector (support USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports

Form Factor

ATX

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin Main Power connector2 x 8-pin +12V Power connectors

Windows 11

Ready

Features

Special Feature:Extreme Engine Digi+-5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch- PCIe Slot Q-Release- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LED- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- AURA RGB header- Addressable Gen 2 headersASUS HYDRANODE- 1 x 12-1 pin Front Panel Audio header (AAFP)- 1 x Chassis fan support* (CHA_FAN1P)* Visit ASUS Website for the latest compatibility list.Software Features:ROG Exclusive Software- GameFirst VI- ROG CPU-Z- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion- Sonic Radar III- DTS Sound Unbound – Anti-virus softwareASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (60 days free trial) – AURA Creator- AURA Sync- Fan Xpert 4 – Two-Way AI Noise CancelationAI Suite 3- 5-Way Optimization with AI OverclockingTPUEPU DIGI+ VRMFan Xpert 4 Turbo appMyAsusWinRARUEFI BIOSAI Overclocking GuideASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ ModeFlexKeyMemTest86BIOS:256 Mb Flash ROM, UEFI AMI BIOSManageability:WOL by PME, PXE Operating System:Windows 11 64-bit, Windows 10 64-bit

Package Contents

Accessories:Cables4 x SATA 6Gb/s cables Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack1 x M.2 Rubber Package1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers1 x ROG Strix thank you cardInstallation Media1 x Support DVDDocumentation1 x User guide

Other Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x CPU Over Voltage jumper1 x 12-1 pin Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thermal Sensor header1 x Thunderbolt header

M.2

Intel 12th Gen Processors:M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel 12th Gen processors support PCIe 4.0 x4 mode.Intel Z690 Chipset:M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)*** Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.** When M.2_4 is operating in SATA mode, SATA6G_2 will be disabled.

Onboard Video Chipset

Supported only by CPU with integrated graphic

SATA 6Gbs

6 x SATA 6Gb/s

Series

ROG

Part Number

90MB18K0-M0AAY0

Supported CPU Technologies

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel Z690

Number of Memory Slots

4x288pin (DDR4)

Memory Standard

2133*Actual Memory frequency support depends on the CPU types and DRAM modules, 2400, 2666, 2800, 2933, 3000, 3200, 3300(OC), 3333(OC), 3400(OC), 3466(OC), 3600(OC), 3733(OC), 3866(OC), 4000(OC), 4133(OC), 4266(OC), 4400(OC), 4500(OC), 4600(OC), 4700(OC), 4800(OC), 5000(OC), DDR4 5333(OC), for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Channel Supported

Dual Channel

PCI Express 5.0 x16

1 x PCI Express 5.0 x16* Actual support may vary by CPU.* Please check PCIe bifurcation table in support site.

PCI Express 3.0 x16

1 x PCI Express 3.0 x16* Supports x4 mode.

PCI Express x1

1 x PCIe 3.0 x1

Date First Available

October 27, 2021

Max Memory Supported

128GB

CPU Socket

LGA 1700* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.

CPU Support

Celeron Processors* Refer to www.asus.com for CPU support list., Supports 12th Gen Intel Core ProcessorsSupports Intel Pentium Gold

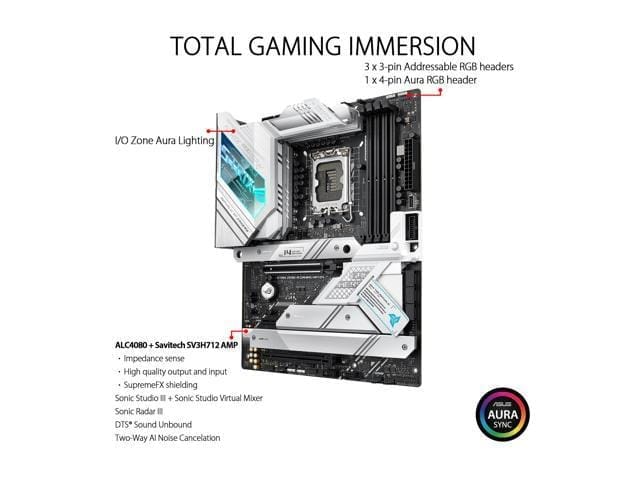

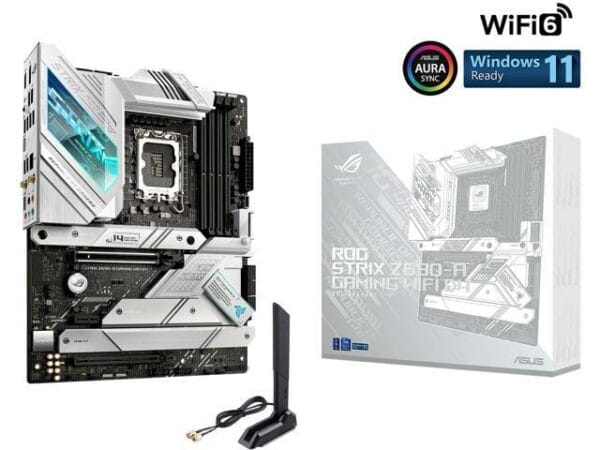

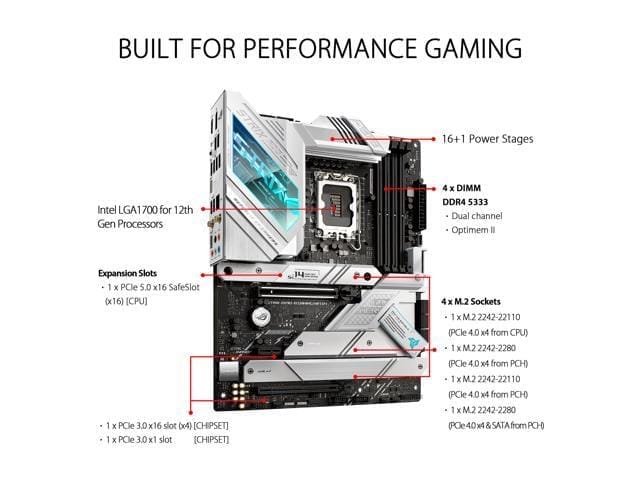

Photos: ASUS ROG Strix Z690-A Gaming

8 reviews for ASUS ROG Strix Z690-A Gaming

4.8 out of 5
6
2
0
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. A rich buyer

    Pros: Everything good, very pretty white mb, lots of m.2 slots with heatsinks,no need to put your fingers into small gaps to remove the graphics card!!!Finally. Cons: need to download wifi or wan drives before you replace the mb, or it might not able to connect internet. Overall Review: Very good!Will recommend to everyone.

    Helpful(0) Unhelpful(0)You have already voted this
  2. Steve S.

    Pros: It’s definitely a well designed product looks nice Cons: – quite pricy – had issues with my m.2 on the slot nearer to the cpu not being detected. Moved to a different m.2 slot and it worked fine. Overall Review: -maybe if i could figure out the m.2 slot near the cpu not working. Otherwise it is a nice albeit expensive mobo.

    Helpful(0) Unhelpful(0)You have already voted this
  3. vic

    Pros: nice board with lots of features. as others have noted, get wifi drivers loaded up before you fire it up. Cons: after a few days, 2 of the 4 m.2 slots suddenly stopped working & will no longer detect my nvme drive. the drive only works in m.2 1 & m.4. 2. & 3 are toast. Overall Review: if asus helps me solve the problem, i highly recommend

    Helpful(0) Unhelpful(0)You have already voted this
  4. Nima G.

    Overall Review: Works great! unfortunately no other choice was left when you cant find DDR5 ! Make sure to update BIOS, intel me firmware, audio firmware.

    Helpful(0) Unhelpful(0)You have already voted this
  5. Anonymous

    Pros: Nice rgb effect works on the first try Great i/o options probably the best option for ddr4 z690 Cons: A bit hard to assemble onto the case due to screw positioning Overall Review: Buy it if it is below 400 dollars

    Helpful(0) Unhelpful(0)You have already voted this
  6. Dr. Gorilla

    Pros: Motherboard is very very powerful someone maybe write that wifi dont working but everithing is fine after you download asus drivers. ssd is working too, dominator very nice with this motherboard so i only can recomended you to buy this and get pleasure. Overall Review: i recomended it

    Helpful(0) Unhelpful(0)You have already voted this
  7. Anonymous

    Pros: Beautiful asf. Sexy asf. Cons: In 10 years I will let you know. Overall Review: My 2nd build since 2012. Yeah a decade since I’ve built my 1st computer. Upgrading from a Intel i-5 3rd gen. (Yeah lol) also that build is still running strong with current games titles. So I decided to go with a 12th gen Intel i-core 7 12700k. I also wanted to go with a white colored build. So that’s why I chose this z690 motherboard. Very sexy and beautiful motherboard. In person it just looks amazing….

    Helpful(0) Unhelpful(0)You have already voted this
  8. Anonymous

    Overall Review: Worth the money if youre going to a snow build

    Helpful(0) Unhelpful(0)You have already voted this
