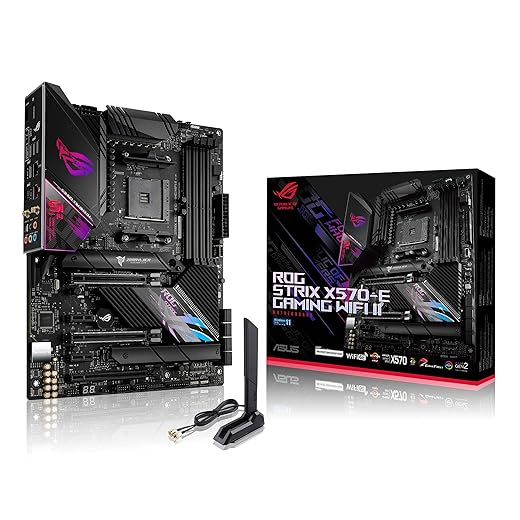

ASUS ROG Strix X570-E Gaming

$200.98

(7 customer reviews)
Last updated on November 8, 2024 8:01 am
0
Add to compare

Highest Price
$391.34 Walmart.com
September 29, 2024
Lowest Price
$200.98 Newegg.com
October 19, 2024
Current Price
$200.98 Newegg.com
November 8, 2024
Since August 20, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: ASUS ROG STRIX X570-E GAMING AMD Socket X570 AM4 ATX M.2 Desktop Motherboard A - $200.98

Specification: ASUS ROG Strix X570-E Gaming

Product
Brand

Model

STRIX X570-E GAMING WIFI II

Series

ROG

Product Type
Type

AMD

Specification
Best Seller Ranking

#19 in AMD Motherboards

Audio Chipset

Realtek S1220A

LAN Chipset

Realtek 2.5Gb Ethernet

Second LAN Chipset

Intel I211-AT

Max LAN Speed

10/100/1000/2500Mbps + 10/100/1000Mbps

Wireless LAN

Wi-Fi 6E802.11 a/b/g/n/ac/ax

Bluetooth

Bluetooth 5.2

Back IO Ports

8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C)1 x DisplayPort1 x HDMI port1 x Wi-Fi Module1 x Intel I211-AT 1Gb Ethernet port1 x Realtek 2.5Gb Ethernet port5 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack button

HDMI

1 x HDMI

Audio Channels

7.1 Channels

USB 3.0

5 x USB 3.0

Other Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header2 x 4-pin Chassis Fan headers1 x 4-pin M.2 Fan header1 x W_PUMP+ headerMiscellaneous2 x Addressable Gen 2 headers2 x AURA RGB headers1 x Clear CMOS header1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin)1 x Speaker header1 x 10-1 pin System Panel header1 x Thermal Sensor header

Form Factor

ATX

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connector

Windows 11

Supported

Features

Special Features:Extreme Engine Digi+- 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch- Q-Code- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink ASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LED- ProCool II- Pre-mounted I/O shield- SafeSlotAURA Sync- AURA RGB headers- Addressable Gen 2 headersSoftware Features:ROG Exclusive Software- RAMCache III- ROG CPU-Z- GameFirst V- Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III- DTS Sound Unbound – Overwolf – Anti-virus softwareASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (60 days free trial) – AURA Creator- AURA Sync- Two-Way AI Noise CancelationAI Suite 3- 5-Way Optimization by Dual Intelligent Processors 5 TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app – EZ updateDAEMON ToolsWinRARUEFI BIOSASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ ModeDynamic OC SwitcherBIOS:256 Mb Flash ROM, UEFI AMI BIOSManageability:WOL by PXEOperating System:Windows 10 64-bit, Windows 11 64-bit

Package Contents

Accessories:Cables4 x SATA 6Gb/s cables 1 x Thermistor cable packMiscellaneous1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack1 x M.2 Rubber Package1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers1 x ROG Strix thank you cardInstallation Media1 x Support DVD Documentation1 x User manual

Onboard USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports

Onboard Video Chipset

Supported only by CPU with integrated graphic

Channel Supported

Dual Channel

SATA RAID

0/1/10

CPU Socket Type

AM4

Chipset

AMD X570

Number of Memory Slots

4x288pin (DDR4)

Memory Standard

2133 (AMD Ryzen 2000 and 3000 G-Series Processors)* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), 2133 (AMD Ryzen 2000 Series Processors)DDR4 3200(OC), 2133 (AMD Ryzen 5000 and 4000 G-Series Processors) DDR4 4600(OC), 2133 (AMD Ryzen 5000 Series, 2400, 2666, 2800, 2933, 3000, 3000 Series Processors)DDR4 3600(OC), 3000(OC), 3200, 3200(OC), 3400(OC), 3466(OC), 3600(OC), 3733(OC), 3866(OC), 4000(OC), 4133(OC), 4266(OC), 4400(OC), 4466(OC), 4600(OC), 4800(OC), and memory frequency support depends on the CPU types., DDR4 5100(OC)

ECC Supported

ECC memory (ECC mode) support varies by CPU

Buffer Supported

Un-buffered

PCI Express 4.0 x16

3 x PCI Express 4.0 x16** Actual support may vary by CPU.* PCIeX16_3 slot shares bandwidth with PCIeX1_2.

PCI Express 3.0 x16

1 x PCI Express 3.0 x16

PCI Express x16

None

PCI Express x1

2 x PCIe 4.0 x1

SATA 6Gbs

8 x SATA 6Gb/s

M.2

AMD Ryzen 5000 Series, 3000 Series Desktop Processors:M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)AMD Ryzen 5000 G-Series/4000 G-Series, 3000 G-Series, 2000 G-Series/2000 Series Processor:M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)AMD X570 Chipset:M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

Date First Available

October 26, 2021

CPU Type Support

2000 G-Series Processors** Refer to www.asus.com for CPU support list., 2000 Series Processors*Supports AMD Ryzen 5000, 3000, 4000, Supports AMD Ryzen 5000

Max Memory Supported

128GB

Photos: ASUS ROG Strix X570-E Gaming

7 reviews for ASUS ROG Strix X570-E Gaming

4.9 out of 5
6
1
0
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Joshua P.

    Pros: Cheaper than the dark hero, but has some of its most important feature sets Passively cooled chipset Lots of USB rear connectivity Clean and simple UEFI WIFI 6E support Nice quick release tabs for ram and m.2, makes assembly and disassembly a breeze. Cons: Only two m.2 slots, wouldnt of minded 3 and sacrificed some sata ports for it Only two case fan connectors, which can be an inconvenience if someone doesnt have a splitter or a fan hub. There is technically three, but one is labeled…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Anonymous

    Pros: ASUS ROG STRIX X570-E Gaming WIFI II AM4 Motherboard. To me, a very nice motherboard, has multiple expansion slots and 2 NVMe SSD connections, everything is convenient regarding the PCIe slots and the NVMe connections. 4 DDR-4 RAM slots, 128GB with up to 5100. This motherboard has a “BIOS Flashback” button, used to upgrade the BIOS without having a processor installed or having to have an older processor installed for upgrades . ** For use when the BIOS does not have the current or…

    Helpful(0) Unhelpful(0)You have already voted this
  3. Anonymous

    Pros: Great in general. Nothing major that didn’t work as expected. Cons: A bit miffed about the installation. Bluetooth and WLAN drivers didn’t install when booting up in Windows 10 Pro 64, Device Manager showed them as not available. Installation Media that came with the MB failed to install them for unknown reasons. Ended up downloading the same drivers from ASUS website and those worked. Bluetooth driver installation application works without opening up any splash screen or program…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Scott S.

    Pros: everything works Cons: At OS install there are no working drivers, I was upgrading so I used a USB and got all the main network drivers for the MB before anything was done, as well it has been years since I have seen a CD Rom drive in a tower so the cd that comes with the board for me was useless. Overall Review: It work well, Could be improved to ensure a seamless experience. I recommend this MB, I went with the Ryzen 9 gen 3 5950X and it runs well.

    Helpful(0) Unhelpful(0)You have already voted this
  5. Anonymous

    Overall Review: very good

    Helpful(0) Unhelpful(0)You have already voted this
  6. Hexxican

    Overall Review: Good upgrade to what I had before. Has some good overclocking for your cpu

    Helpful(0) Unhelpful(0)You have already voted this
  7. Anonymous

    Pros: – All the USB 3.2 gen 2 ports I will need – Has WIFI option – Well laid out and easy to work on/install – Nice retaining system for M2 drives with a rotating clip instead of screws Cons: – More RGB headers would be nice – I wish fan headers were all near the edges of the board rather than centrally. This is an ongoing thing I have with most motherboards – I liked the old Aura software better. Overall Review: I have put together a lot of systems in the past 30 years. This was an easy…

    Helpful(0) Unhelpful(0)You have already voted this
