ASUS ROG STRIX B660-A GAMING

$282.37

Add your review
Last updated on February 16, 2025 5:00 pm

Best $ Amazon.com

0
Add to compare

Highest Price
$210.99 eBay
February 23, 2025
Lowest Price
$210.99 eBay
February 23, 2025
Current Price
$282.37 Amazon.com
February 16, 2025
Since February 23, 2025
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Didn't find the right price? Set price alert below

Set Alert for Product: ASUS ROG Strix B660-A Gaming WiFi D4 LGA 1700(Intel 12th Gen) ATX Gaming Motherboard(PCIe 5.0,12+1 Power Stages,WiFi 6, 2.5 Gb LAN, 3xM.2 Slots,PCIe 4.0 NVMe® SSD Support, USB 3.2 Gen 2x2 Type-C) - $282.37

Specification: ASUS ROG STRIX B660-A GAMING

Product
Brand

Model

STRIX B660-A GAMING WIFI D4

Product Type

Intel

Specification
Best Seller Ranking

#81 in Intel Motherboards

SATA RAID

0/1/5/10

Audio Channels

7.1 Channels

LAN Chipset

Intel 2.5Gb Ethernet

Max LAN Speed

10/100/1000/2500Mbps

Wireless LAN

Wi-Fi 6802.11 a/b/g/n/ac/ax

Bluetooth

Bluetooth 5.2

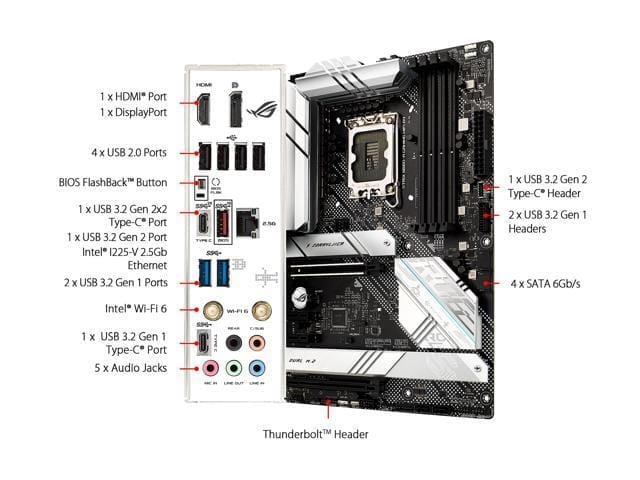

Back IO Ports

1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C)1 x USB 3.2 Gen 2 port(s) (1 x Type-A)3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C)4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort1 x HDMI port1 x Wi-Fi Module1 x Intel 2.5Gb Ethernet port5 x Audio jacks 1 x BIOS FlashBack button

Audio Chipset

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Onboard USB

1 x USB 3.2 Gen 2 connector (support USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports

Form Factor

ATX

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connector

Windows 11

Supported

Features

Special Features:Extreme Engine Digi+-5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LED- CPU Socket lever protector- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- AURA RGB header(s)- Addressable Gen 2 header(s)Software Features:ROG Exclusive Software- GameFirst VI- ROG CPU-Z- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion- Sonic Radar III- DTS Sound Unbound – Anti-virus softwareASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (60 days free trial) – AURA Creator- AURA Sync- Fan Xpert 4 – Two-Way AI Noise CancelationAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPU DIGI+ VRMTurbo appMyAsusWinRARUEFI BIOSASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ ModeFlexKeyMemTest86BIOS:192 Mb Flash ROM, UEFI AMI BIOSManageability:WOL by PME, PXE Operating System:Windows 11 64-bit, Windows 10 64-bit

Package Contents

Accessories:Cables4 x SATA 6Gb/s cables Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack1 x M.2 Rubber Package(s)1 x M.2 Q-Latch package(s)1 x ROG key chain1 x ROG Strix stickers1 x ROG Strix thank you cardInstallation Media1 x Support DVDDocumentation1 x User guide

Other Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)1 x 4-pin AIO Pump header(s)3 x 4-pin Chassis Fan header(s)Power related Miscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt header

Intel Optane Ready

Yes

Number of Memory Slots

4x288pin (DDR4)

M.2

Intel 12th Gen Processors:M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel 12th Gen processors support PCIe 4.0 x4 mode.Intel B660 Chipset:M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Series

ROG

Supported CPU Technologies

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel B660

Onboard Video Chipset

Supported only by CPU with integrated graphic

Memory Standard

2133** Actual memory data rate depends on the CPU types and DRAM modules, 2400, 2666, 2800, 2933, 3000, 3200, 3333(OC), 3400(OC), 3466(OC), 3600(OC), 3733(OC), 4000(OC), 4266(OC), 4400(OC), 4600(OC), 4800(OC), 5000(OC), DDR4 5333(OC), for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Channel Supported

Dual Channel

PCI Express 5.0 x16

1 x PCI Express 5.0 x16* Actual support may vary by CPU.* Please check PCIe bifurcation table in support site.

PCI Express 3.0 x16

1 x PCIe 3.0 x16 * Supports x4 mode.

PCI Express x1

2 x PCIe 3.0 x1

SATA 6Gbs

4 x SATA 6Gb/s

Date First Available

January 19, 2022

Max Memory Supported

128GB

CPU Socket

LGA 1700* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.

CPU Support

Celeron Processors* Refer to www.asus.com for CPU support list., Pentium Gold, Supports 12th Gen Intel Core

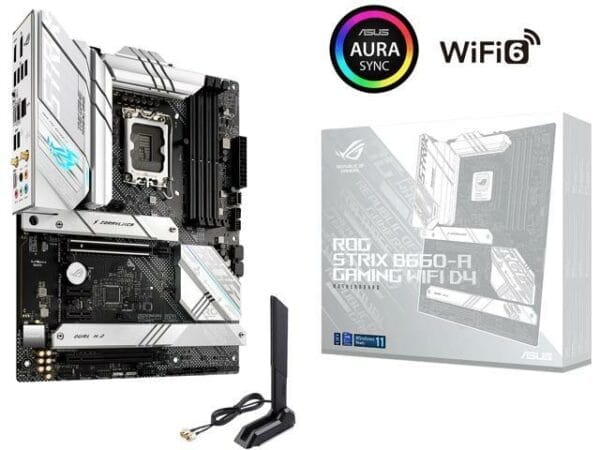

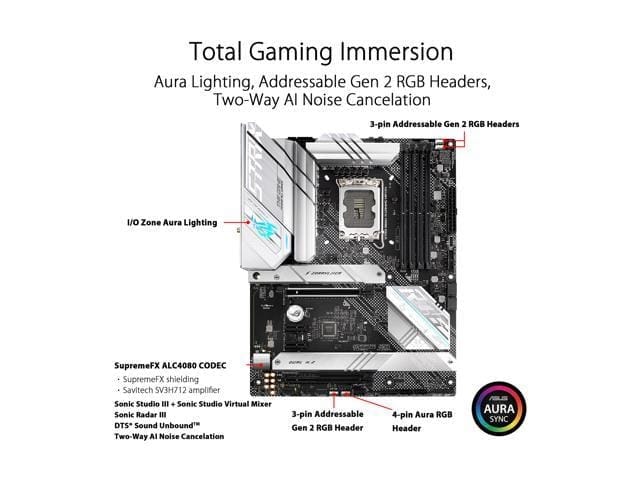

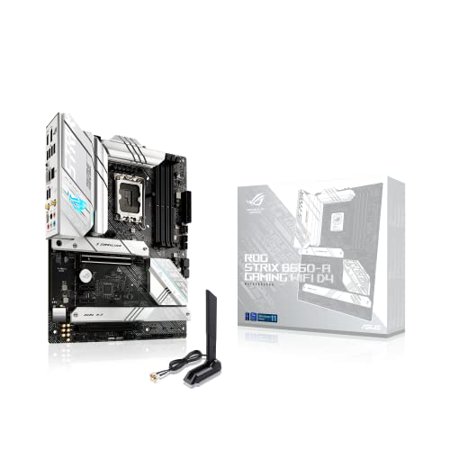

Photos: ASUS ROG STRIX B660-A GAMING

ASUS ROG STRIX B660-A GAMING ASUS ROG STRIX B660-A GAMING
