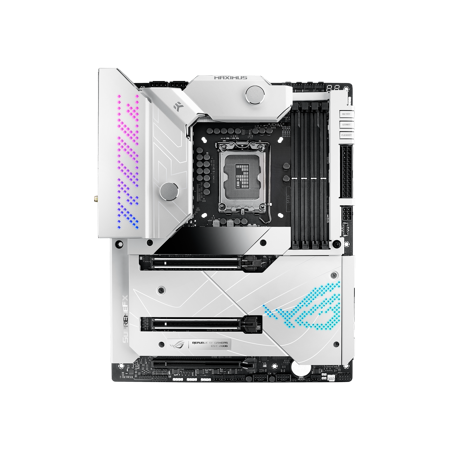

ASUS ROG Maximus Z690 Formula

Original price was: $529.99.Current price is: $457.05.

(8 customer reviews)
Last updated on April 2, 2025 10:59 pm
0
Add to compare

Highest Price
$870.08 Walmart.com
April 2, 2025
Lowest Price
$457.05 Amazon.com
April 4, 2025
Current Price
$457.05 Amazon.com
April 3, 2025
Since November 28, 2024
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Didn't find the right price? Set price alert below

Set Alert for Product: ASUS ROG Maximus Z690 Formula(WiFi 6E)LGA1700(Intel 12th Gen)ATX Water cooling gaming motherboard(PCIe 5.0,DDR5,20+1 power stages,LiveDash 2”OLED,5xM.2,2xThunderbolt 4,PCIe 5.0 Hyper M.2 Card bundled) - $457.05

Specification: ASUS ROG Maximus Z690 Formula

Product
Brand

Model

MAXIMUS Z690 FORMULA

Product Type

Intel

Specification
Best Seller Ranking

#32 in Intel Motherboards

SATA RAID

0/1/5/10

Audio Channels

7.1 Channels

LAN Chipset

Marvell AQtion 10Gb Ethernet

Max LAN Speed

10Gbps

Wireless LAN

Wi-Fi 6E802.11 a/b/g/n/ac/ax

Bluetooth

Bluetooth 5.2

Back IO Ports

2 x Thunderbolt 4 USB Type-C port(s)7 x USB 3.2 Gen 2 port(s) (6 x Type-A + 1 x USB Type-C)3 x USB 2.0 port(s) (3 x Type-A) 1 x HDMI port1 x Wi-Fi Module1 x Marvell AQtion 10Gb Ethernet port5 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack button 1 x Clear CMOS button

Audio Chipset

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Onboard USB

1 x USB 3.2 Gen 2×2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Form Factor

ATX

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin Main Power connector2 x 8-pin +12V Power connector1 x 6-pin PCIe Graphics Card connector

Windows 11

Ready

Features

Special Features:Extreme OC Kit- FlexKey button- ReTry button- Start buttonExtreme Engine Digi+- 10K Black Metallic Capacitors- MicroFine Alloy Choke ASUS Q-Design – M.2 Q-Latch- PCIe Slot Q-Release- Q-Code- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- CrossChill EK III- M.2 heatsink backplate- M.2 heatsinks- Steel backplateASUS EZ DIY- BIOS FlashBack button- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- AURA RGB header(s)- Addressable Gen 2 header(s)OLED 2"Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support- Support: up to 60W charging*- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27WASUS HYDRANODE- 1 x 12-1 pin Front Panel Audio header (AAFP)- 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P)* Visit ASUS Website for the latest compatibility list.Software Features:ROG Exclusive Software- GameFirst VI- ROG CPU-Z- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion- Sonic Radar III- DTS Sound Unbound – BullGuard Internet Security (1-year full version)ASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (1 year full version)- AURA Creator- AURA Sync- Fan Xpert 4 – Two-Way AI Noise CancelationAI Suite 3- Easy Optimization with AI OverclockingTPUEPU DIGI+ Power ControlTurbo appMyAsusWinRARUEFI BIOSAI Overclocking GuideASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ ModeMemTest86BIOS:256 Mb Flash ROM, UEFI AMI BIOSManageability:WOL by PME, PXE Operating System:Windows 11 64-bit, Windows 10 64-bit

Other Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)1 x 4-pin AIO Pump header(s)4 x 4-pin Chassis Fan header(s)1 x W_PUMP+ header(s)1 x 2-pin Water In header1 x 2-pin Water Out header1 x 3-pin Water Flow headerMiscellaneous3 x Addressable Gen 2 header(s)1 x AURA RGB header(s)1 x FlexKey button 1 x 12-1 pin Front Panel Audio header (AAFP)1 x ReTry button1 x SPI TPM header (14-1pin)1 x Start button1 x 10-1 pin System Panel header1 x Thermal Sensor header

M.2

Intel 12th Gen Processors:M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel 12th Gen processors support PCIe 4.0 x4 mode.Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110**- Intel 12th Gen processors support PCIe 5.0 x4 modeIntel Z690 Chipset:*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)**Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)**** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G5)_2, Hyper M.2_1 slot can support PCIe 5.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4)_3, Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.*** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1 or PCIEX16(G5)_2, Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4)_3, Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.

Onboard Video Chipset

Supported only by CPU with integrated graphic

SATA 6Gbs

6 x SATA 6Gb/s* SATA6G_E12 cannot support RAID 0/1/5/10.

Series

ROG

Part Number

90MB18G0-M0AAY0

Supported CPU Technologies

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel Z690

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

4800 * Supported memory types, 5000(OC), 5200(OC), 5400(OC), 5600(OC), 5800(OC), 6000(OC), 6200(OC), and number of DRAM module vary depending on the CPU and memory configuration, data rate(Speed), DDR5 6400(OC), for more information refer to www.asus.com for memory support list.

Channel Supported

Dual Channel

PCI Express 5.0 x16

2 x PCI Express 5.0 x16* Actual support may vary by CPU.* When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only and if ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.

PCI Express 4.0 x16

1 x PCI Express 4.0 x16* Supports Intel Optane Memory H Series on PCH-attached PCIe slot.

Date First Available

October 29, 2021

Max Memory Supported

128GB

CPU Socket

LGA 1700* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.

CPU Support

Celeron Processors* Refer to www.asus.com for CPU support list., Pentium Gold, Supports 12th Gen Intel Core

Photos: ASUS ROG Maximus Z690 Formula

8 reviews for ASUS ROG Maximus Z690 Formula

4.4 out of 5
6
1
0
0
1
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. BlameCo

    Pros: -Amazing looks and nearly full board coverage with protective shrouds. -Ridiculously clean power delivery to cpu, stable and easy overclocking -Simple and easy install of m.2 drive and all other essentials -Great UEFI and bios settings and environment -Support for both 1700LGA and 1200LGA mounting brackets. -3x onboard m.2 mounts, includes a 4x 5.0 pcie expansion for 2 more m.2 ssds Cons: -Very heavy, not really a problem but I wasn’t expecting a board to weigh around 10 LBS -Only 6…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Anonymous

    Pros: its purdy, there are weaboo ati cards that would match up to it Cons: I aint got my 12900kf at msrp yet Overall Review: I would buy it all over again to play battlefield 2042, be like yo gotti in my all white computer in my all while hovercraft with my all white guillie suite all white everything. I realized Iv been on my sabertooth x58 board for like 8 years now running non stop24/7 so, lets see how this one does.

    Helpful(0) Unhelpful(0)You have already voted this
  3. Supagi

    Pros: Setup was easy Many internal I/O connectors made cable management easy Cons: The physical ethernet port was not working initially. Had to flash the BIOS. Overall Review: This motherboard is amazing. The many I/O connectors on the mobo made cable management a breeze. However, the ethernet port was not working when the initial setup was made. Luckily, this mobo’s WiFi was working. Had to flash the BIOS and install updates from Asus’ Armory Crate. Not sure if this is a known issue with…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Nathan H.

    Pros: Lots of features Nicely packaged, good for an unboxing video Can use water cooling on the chipset All the latest connectivity options etc. Cons: Board is heavy Keep everything if you need to return or they wont accept it Overall Review: I worked days setting up my custom water loop, 4 NVMe drives (all listed on the motherboards compatibility list) and just cannot get this board to run right. Tech support was unable to get the issue fixed but I figured it out so could boot into Windows…

    Helpful(0) Unhelpful(0)You have already voted this
  5. D S.

    Pros: – Beautiful aesthetics – Solid build with a hefty weight out of the box – Very easy to use and put together physically, no convoluted plates or messy screw systems – “Fancy” features like the “PCIE Q-Slot” release button and “M.2 Q-LATCH” were nice quality of life features, able to install components with less screws / extra parts easy to transfer from one case to another. – Has a dual mounting holes for (LGA 1700 / LGA 1200) which was fantastic so I could reuse my Kraken without any…

    Helpful(0) Unhelpful(0)You have already voted this
  6. William W.

    Pros: Beautiful and Functional Overall Review: Great Board, was a simple install. The Board is heavy, but didnt effect anything. Installed a fresh copy of windows 10, and didnt see a network connection until it actually booted in. Then it was all gravy!

    Helpful(0) Unhelpful(0)You have already voted this
  7. Bobby J.

    Overall Review: Would bye again and recommend for a friend

    Helpful(0) Unhelpful(0)You have already voted this
  8. James Y.

    Pros: Preinstalled risers, nice clean look an ease to use. First start everything loaded fine. Quick flash of bios and a install of windows 11 I was up and running with all new components in about 90 minutes. Cons: Black included cables and screws minor but the boards white why shouldnt the accessories be? Overall Review: Its twice what a motherboard should cost, not sure if Ill use the hyper card but if you want a easy to set full featured mb this one will do the job

    Helpful(0) Unhelpful(0)You have already voted this
