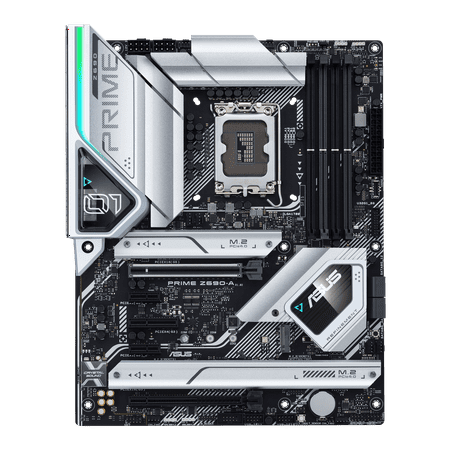

ASUS Prime Z690-A

$145.35

(8 customer reviews)
Last updated on January 17, 2025 5:46 am
0
Add to compare

Highest Price
$359.00 Newegg.com
October 19, 2024
Lowest Price
$145.35 Amazon.com
November 8, 2024
Current Price
$145.35 Amazon.com
January 17, 2025
Since October 19, 2024
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Didn't find the right price? Set price alert below

Set Alert for Product: ASUS Prime Z690-A LGA 1700(Intel 12th) ATX Motherboard (16+1 DrMOS,PCIe 5.0,DDR5,4X M.2, Intel 2.5 Gb LAN,USB 3.2 Gen 2 Front Panel Type-C,Thunderbolt™ 4,Aura Sync RGB Lighting) - $145.35

Specification: ASUS Prime Z690-A

Product
Brand

Model

PRIME Z690-A

Specification
Best Seller Ranking

#21 in Intel Motherboards

M.2

Intel 12th Gen Processors:M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset:** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)* Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.

Audio Chipset

Realtek S1220A

Audio Channels

7.1 Channels

LAN Chipset

Intel 2.5Gb Ethernet

Max LAN Speed

10/100/1000/2500Mbps

Back IO Ports

1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C)3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x Type-C )4 x USB 3.2 Gen 1 port(s) (4 x Type-A)1 x DisplayPort1 x HDMI port1 x Intel 2.5Gb Ethernet port5 x Audio jacks 1 x Optical S/PDIF out port

Onboard USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Intel Optane Ready

Yes

Other Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)1 x 4-pin AIO Pump header(s)4 x 4-pin Chassis Fan header(s)1 x W_PUMP+ header(s)Miscellaneous3 x Addressable Gen 2 header(s)1 x AURA RGB header(s)1 x Clear CMOS button1 x COM Port header1 x CPU Over Voltage jumper1 x Front Panel Audio header (AAFP) 1 x Power button 1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thermal Sensor header1 x Thunderbolt header

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin Main Power connector2 x 8-pin +12V Power connector

Windows 11

Supported

Features

Special Features:ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS)- Enhanced DRAM Overcurrent Protection- ESD Guards – LANGuard – Overvoltage Protection- SafeSlot – Stainless-Steel Back I/OASUS Q-Design – M.2 Q-Latch- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink design ASUS EZ DIY- Box headers- Clear CMOS button- CPU socket lever protector- ProCool – Pre-mounted I/O shieldAURA Sync- AURA RGB header(s)- Addressable Gen 2 header(s)Software Features:ASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA Sync- Fan Xpert 4 – Two-Way AI Noise CancelationAI Suite 3- 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRMTurbo app ASUS CPU-Z DTS:X Ultra Norton Anti-virus software (Free Trial version) WinRARUEFI BIOSAI Overclocking GuideASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ ModeFlexKeyBIOS:256 Mb Flash ROM, UEFI AMI BIOSManageability:WOL by PME, PXE Operating System:Windows 11 64-bit, Windows 10 64-bit

Package Contents

Accessories:Cables2 x SATA 6Gb/s cables Miscellaneous1 x M.2 Rubber Package(s)1 x Q-connector1 x M.2 Q-Latch package(s)Installation Media1 x Support DVD Documentation1 x User guide

Form Factor

ATX

SATA 6Gbs

4 x SATA 6Gb/s

Number of Memory Slots

4x288pin (DDR5)

PCI Express x1

2 x PCIe 3.0 x1

Part Number

90MB18L0-M0AAY0

Supported CPU Technologies

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel Z690

Onboard Video Chipset

Supported only by CPU with integrated graphic

Memory Standard

4800* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., 5000(OC), 5200(OC), 5400(OC), 5600(OC), 5800(OC), DDR5 6000(OC)

Channel Supported

Dual Channel

PCI Express 5.0 x16

1 x PCI Express 5.0 x16* Actual support may vary by CPU.* Please check PCIe bifurcation table in support site.

PCI Express 3.0 x16

1 x PCI Express 3.0 x16* Supports x4 mode.

PCI Express x4

1 x PCI Express 3.0 x4

Date First Available

October 15, 2021

Max Memory Supported

128GB

CPU Socket

LGA 1700* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.

CPU Support

Celeron Processors* Refer to www.asus.com for CPU support list., Supports 12th Gen Intel Core ProcessorsSupports Intel Pentium Gold

Item Type

Intel

Photos: ASUS Prime Z690-A

8 reviews for ASUS Prime Z690-A

3.5 out of 5
3
2
0
2
1
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Easy Rider

    Pros: Options packed Looks Price EZ Flash utility Cons: Runs hot No water blocks for this yet Needs firmware update out of the box Overall Review: This is a very capable MB. Pro tip, use the EZ Flash utility to update the BIOS from the BIOS FIRST THING! It appears the MB was built and stocked before the firmware was finished, so the version it comes with can cause problems with setup. Heatsinks are large, but they dissipate a lot of heat. They have caused problems with my radiator placement,…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Normand G.

    Pros: It is the middle of the road board but it is one hell of a workhorse. Has just the right amount of RGB to make any lover happy. Easy to install and has all the features you will really need. This board kicks with the best of them. Happy I bought it. Cons: None Overall Review: Recommend this Motherboard to everyone who wants to step up to the next level of technology

    Helpful(0) Unhelpful(0)You have already voted this
  3. Crass

    Overall Review: I bought the ASUS Prime Z690-A with a G.Skill 5600 4040C combo from Newegg. The motherboard doesn’t seem to support the RAM and it’s not on the QVL (lots of G.Skill RAM but not this particular model for some reason). It’s possible it might support the RAM after a motherboard upgrade, but you can’t upgrade the motherboard without RAM. There’s no bios flashback and there no error code numbers or even beeps, just a Q-LED that lights up “DRAM”. Buyer beware and beware of getting…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Anonymous

    Pros: It arrived quickly. Feature rich bios. Cons: It randomly freezes when idle. Under any load the it runs fine and MeMTest86 checks out (no error). This leads me to think the problem is in the mobo vs in the CPU or Memory. I’ve tried updating the bios to the latest version (2021/12/03) to no avail, it still freezes when idle. Also it freezes under both Windows 11 and Ubuntu, so it is not an OS issue. Overall Review: I think there are some quality issues with this board, given that it…

    Helpful(0) Unhelpful(0)You have already voted this
  5. Anonymous

    Pros: – Great specs on paper at this price point. Cons: – Incredibly unstable even at stock speeds with the latest BIOS and multiple CPU/ram configurations. I waited a few months after buying this product upon release hoping they would fix these issues but they have not done so yet. Overall Review: – I’ve bought great things from ASUS in the past but this board is just disappointing with all the Kernal Power errors it throws. …the issue seems to be somewhat common and some people claimed…

    Helpful(0) Unhelpful(0)You have already voted this
  6. ExtremeFlatulence

    Pros: Great platform that does almost everything an enthusiast might need. Cons: AuraSync is fussy. Needed special driver from Asus for the OS to see the NVME RAID-5 volume. Overall Review: I would recommend it with the aforementioned caveats.

    Helpful(0) Unhelpful(0)You have already voted this
  7. Richard H.

    Pros: Asus quality. Stable, fast. Good layout. Intel NIC. Cons: None. Overall Review: As with any new bleeding edge platform, your first order of business should always be updating the BIOS to the latest version before installing the OS. Use name brand memory. I.E. Corsair. The option to shut off the distracting LED light show is a welcome addition. It’s not for me.

    Helpful(0) Unhelpful(0)You have already voted this
  8. Anonymous

    Pros: -Seems like a solid board after initial issues. Cons: -BIOS absolutely MUST be updated. It is very picky about RAM. Overall Review: I cant review the Newegg combo, so I’m putting it here. I bought this board in a combo with G.SKILL Trident Z5 RGB Series 32GB (2 x 16GB) 288-Pin DDR5 SDRAM DDR5 5600 Intel XMP 3.0 Desktop Memory Model F5-5600J3636C16GX2-TZ5RS. This ram is not on the boards QVL list, and it would not boot past the BIOS safe mode. I was able to update the BIOS by…

    Helpful(0) Unhelpful(0)You have already voted this
