ASUS Prime X570-Pro

$199.84

(8 customer reviews)
Last updated on February 16, 2025 6:51 pm
0
Add to compare

Highest Price
$270.06 Walmart.com
September 29, 2024
Lowest Price
$199.00 Newegg.com
October 19, 2024
Current Price
$199.84 Amazon.com
February 16, 2025
Since September 29, 2024
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Didn't find the right price? Set price alert below

Set Alert for Product: ASUS Prime X570-Pro AM4 Zen 3 Ryzen 5000 & 3rd Gen Ryzen ATX Motherboard with PCIe Gen4, Dual M.2 HDMI, SATA 6GB/s USB 3.2 Gen 2 ATX Motherboard - $199.84

Specification: ASUS Prime X570-Pro

Product
Brand

Model

PRIME X570-PRO

Product Type

AMD

Specification
Best Seller Ranking

#41 in AMD Motherboards

Audio Chipset

Realtek S1220A High Definition Audio CODEC featuring Crystal Sound 3

Package Contents

Accessories:User's manual2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x Q-connector(s) (1 in 1)1 x Extension cable for Addressable LED

Features

Multi-GPU Support:3rd and 2nd Gen AMD Ryzen ProcessorsSupports NVIDIA 2-Way SLI TechnologySupports AMD 3-Way CrossFireX Technology2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics ProcessorsSupports AMD 2-Way CrossFireX TechnologySpecial Features:5-Way Optimization by Dual Intelligent Processors 5- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo AppDIGI+ VRM: Digital power design with Dr. MOSEPU GuidanceTPU InsightFan Xpert4- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlTurbo App: system performance tuning, network priority, and audio scene configuration for selected applications.ASUS 5X Protection III:- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM – Digital power design with Dr. MOS- ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention- ASUS ESD Guards – Enhanced ESD protectionASUS SafeSlot – Protect your graphics card InvestmentASUS OptiMem:- Improved DDR4 StabilityAURA:- Aura Lighting Control- Aura RGB Strip Headers- Addressable Gen 2 HeaderASUS Exclusive Features:- AI Suite 3- Ai Charger- Turbo LAN- Armoury Crate- Pre-mounted I/O ShieldASUS Quiet Thermal Solution:- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink- ASUS Fan Xpert 4ASUS EZ DIY:- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeASUS Q-Design:- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMM- ASUS Q-ConnectorOperating System:Windows 10 64-bit

Windows 11

Supported

Power Pin

1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)

Dimensions W x L

12.0" x 9.6"

LED Lighting

RGB

Form Factor

ATX

Other Connectors

2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x SPI TPM header1 x COM port(s) connector(s)1 x CPU Fan connector(s) (1 x 4-pin)1 x CPU OPT Fan connector(s) (1 x 4-pin)3 x Chassis Fan connector(s) (3 x 4-pin)1 x PCH_FAN (1 x 4-pin)1 x AIO_PUMP connector (1 x 4-pin)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Power-on button(s)1 x Clear CMOS jumper(s)1 x Node Connector(s)1 x Water Pump header (4-pin)1 x T_Sensor Connector

Onboard USB

1 x USB 3.2 Gen 2 (up to 10Gbps) connector1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

Back IO Ports

1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)1 x Optical S/PDIF out5 x Audio jack(s)4 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)

Max LAN Speed

10/100/1000Mbps

LAN Chipset

Intel i211AT

Audio Channels

192 kHz is not supported for 8-Channel audio., 32-Bit, 8 Channels** Due to limitations in HDA bandwidth

Onboard Video Chipset

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics ProcessorsMulti-VGA output support: HDMI/DisplayPort ports- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

SATA RAID

0/1/10

M.2

3rd Gen AMD Ryzen Processors:1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support2nd Gen AMD Ryzen, 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors:1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices supportAMD X570 chipset:1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support

SATA 6Gbs

6 x SATA 6Gb/s

PCI Express x1

3 x PCIe 4.0 x1

PCI Express 4.0 x16

3rd Gen AMD Ryzen Processors2 x PCIe 4.0 x16 (x16 or dual x8)2nd Gen AMD Ryzen Processors2 x PCIe 3.0 x16 (x16 or dual x8)2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors1 x PCIe 3.0 x16 (x8 mode)AMD X570 chipset1 x PCIe 4.0 x16 (max at x4 mode)

Channel Supported

Dual Channel

Memory Standard

2133 MHz Un-buffered Memory, 2133 MHz Un-buffered Memory2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics ProcessorsDDR4 3200(O.C.), 2133 MHz Un-buffered Memory2nd Gen AMD Ryzen ProcessorsDDR4 3600(O.C.), 2400, 2666, 2800, 2933, 3000, 3000(O.C.), 3200, 3200(O.C.), 3400(O.C.), 3466(O.C.), 3600(O.C.), 3733(O.C.), 3866(O.C.), 3rd Gen AMD Ryzen ProcessorsDDR4 4400(O.C.), 4000(O.C.), 4133(O.C.), 4266(O.C.)

Number of Memory Slots

4x288pin (DDR4)

Chipset

AMD X570

Date First Available

March 21, 2022

Max Memory Supported

128GB

CPU Socket

AM4

CPU Support

2000 G-Series desktop processors* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list., 2000 Series, 3000 G-Series, 3000 Series, 4000 G-Series, AMD Ryzen 5000 Series

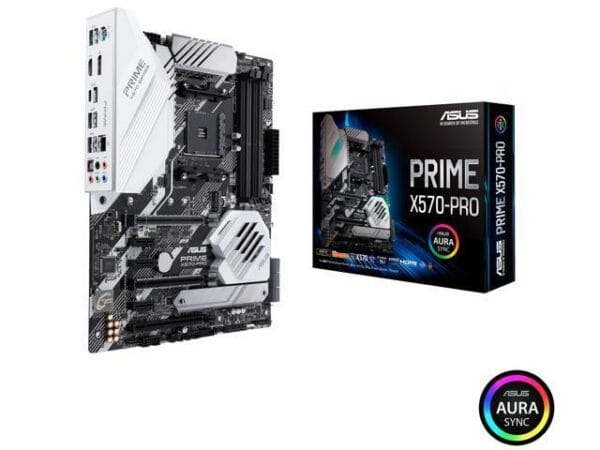

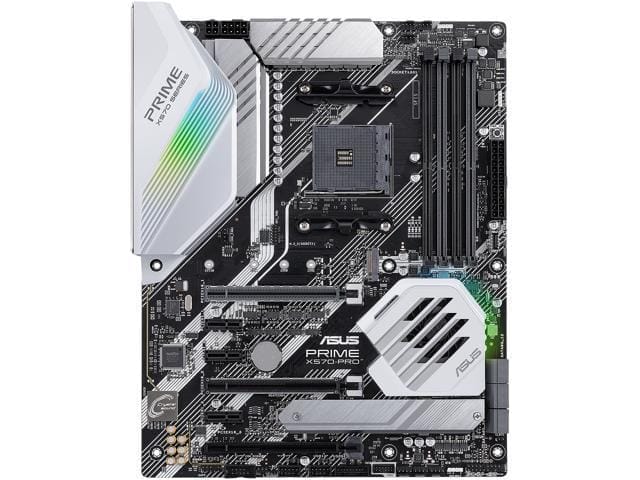

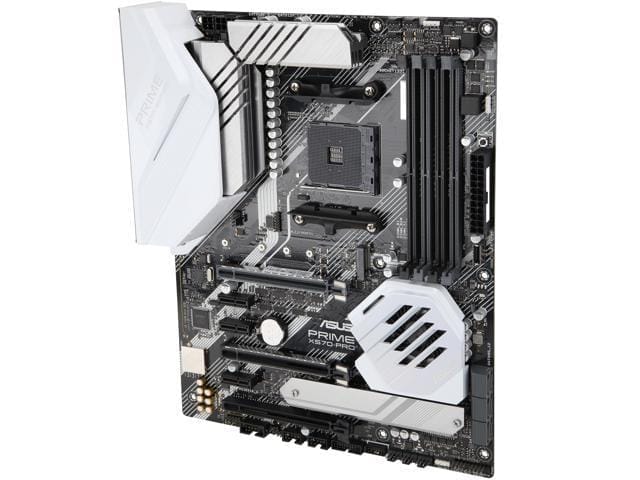

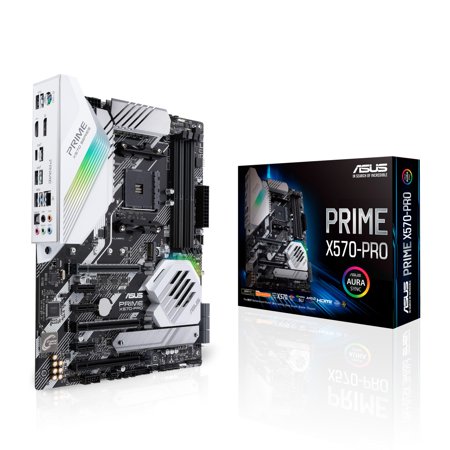

Photos: ASUS Prime X570-Pro

8 reviews for ASUS Prime X570-Pro

4.1 out of 5
6
0
0
1
1
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. CARLOS V.

    Pros: – Posted first try – SLI and Crossfire Support – SSD Heatsink Cons: – No Wifi – Installs Armoury Crate on bootup to windows (you have to opt out in MOBO) – Integrated Fan makes me worry about the long term Overall Review: AMD 3900X GTX 1080 TI 32 GB GSKILL Trident Z 3200 5 Starts because I knew what I was getting, and while I don’t agree with auto installing software. I can get past it without docking a star.

    Helpful(0) Unhelpful(0)You have already voted this
  2. Timothy K.

    Pros: Solid set of features Understated but nice aesthetics Cons: Needs a couple more SATAs or USB ports to be the leader at this price-point. Mine has developed a taste for human blood… your results may vary. Overall Review: It has been a long time since I built a PC. I thought this motherboard would be a nice reentry into the hobby. The board has solid features, subtle but designer look, and isn’t overboard on the flashy stuff. After receiving all the parts, I test assembled everything…

    Helpful(0) Unhelpful(0)You have already voted this
  3. Casey R.

    Pros: Great Bios setup and boot qualities. Can set memory speeds easily with over clock setting for memory only and leave everything else on auto. Solid system engineering! Optical fiber out sounds great in my 7:2 receiver and translates Netflix, Prime, or Blu Ray movies sound tracks better than all previous Asus boards I have used, and they were real high quality. Cons: There is a little confusion about setting up memory speeds, but youtube shows step by step and it works easily. Should be…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Patrick S.

    Pros: Looks great, bios is decent, and rgb syncs easily. Included manual helped a lot with all the different headers so building was a breeze and overclocking was super simple. Cons: Now to the bad. My on board headers seem to be faulty. HD audio, usb, power led, the whole bunch. I’ll randomly get usb disconnects, audio drops, and my case led flickers (happened on two cases). Ran a usb program and noticed it’s all of my mobo headers as I confirmed no I/O usb had disconnect issues. Also…

    Helpful(0) Unhelpful(0)You have already voted this
  5. John W.

    Pros: Update: 4-20-20: I now have 6 of these builds on this board to friends and customers and it is my go to build for anyone looking to break into pcie 4.0 nvme drives. One of which was with a 3950x and a 2tb Sabrent rocket that hits 5100mbs+ write constantly, those are the kind of days I live for. Honestly one thing that I am so over and done with, I get why people build to overclock cpus and graphics and anything they can and I love it too but I prefer reliable builds that hit strong…

    Helpful(0) Unhelpful(0)You have already voted this
  6. Steven L.

    Pros: As a first time builder I was originally in the market for a different board. However availability due to COVID19 had me waiting for the stock to replenish. Decided to use the time to do further research, based on price and availability, and ran into this MB. The more I read the more I liked it, and for a little more I purchased it. Probably not your high-end MB (price wise), but I think it has high-end capability in terms of connections and outputs. I did like the USB-C output for the…

    Helpful(0) Unhelpful(0)You have already voted this
  7. Chris F

    Overall Review: Worked very well for about 6 weeks then wouldn’t post with a yellow light on DRAM. I had two sticks of 16GB RAM, tried all slots and with each stick and no luck. When I called Asus support they said that the RAM was not on their list (even though it worked fine for 6 weeks and met the specs). Looking online it looks like there are lots of other people with this issue and the only fix was to replace the board. I would recommend another board and manufacturer.

    Helpful(0) Unhelpful(0)You have already voted this
  8. Jonathon B.

    Pros: – Handles the Ryzen 5900X without problems. – Handles the Samsung 980 Pro NVME at full 4.0 speed (getting 6800 Mb/s). – Visually pleasing. – No fitment issues with the built-in IO shroud and a 140mm exit fan in a Fractal Define R6 or 7 case – It seems to cover just about any user base from gamer to home workspace to office professional, and could do all that in the same day in the same build. Cons: – USB issues… seriously? USB problems in 2021? Issues affect ALL USB not only the…

    Helpful(0) Unhelpful(0)You have already voted this
