ASUS PRIME B660-PLUS D4

(6 customer reviews)
Last updated on August 15, 2025 10:43 pm
0
Add to compare

Highest Price
$128.91 Walmart.com
August 25, 2025
Lowest Price
$128.91 Walmart.com
August 25, 2025
Current Price
$128.91 Walmart.com
August 15, 2025
Since August 25, 2025
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Specification: ASUS PRIME B660-PLUS D4

Product
Brand

Model

PRIME B660-PLUS D4

Product Type

Intel

Specification
Best Seller Ranking

#24 in Intel Motherboards

Form Factor

ATX

Audio Chipset

Realtek 7.1 Surround Sound High Definition Audio CODEC** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Audio Channels

7.1 Channels

LAN Chipset

Realtek 2.5Gb Ethernet

Max LAN Speed

10/100/1000/2500Mbps

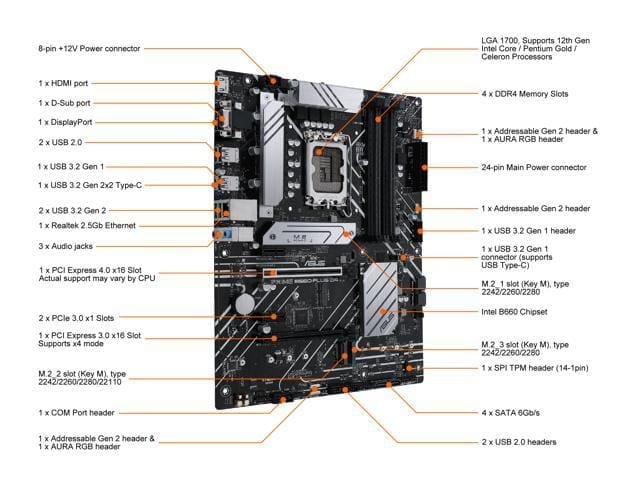

Back IO Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)2 x USB 3.2 Gen 2 ports (2 x Type-A)1 x USB 3.2 Gen 1 port (1 x Type-A)2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort1 x D-Sub port1 x HDMI port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks

Onboard USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports

Intel Optane Ready

Yes

Other Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersMiscellaneous3 x Addressable Gen 2 headers2 x AURA RGB headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E)1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt header

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin Main Power connector1 x 8-pin +12V Power connector

Windows 11

Supported

Features

Special Features:ASUS 5X PROTECTION III- DIGI+ VRM – Enhanced DRAM Overcurrent Protection- ESD Guards – LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design – Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designAURA Sync- AURA RGB headers- Addressable Gen 2 headersSoftware Features:ASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA Sync- Fan Xpert 2+AI Suite 3- Performance And Power Saving UtilityTurboV EVOEPU DIGI+ VRMASUS CPU-ZNorton Anti-virus software (Free Trial version) WinRARUEFI BIOSASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ ModeBIOS:128 Mb Flash ROM, UEFI AMI BIOSManageability:WOL by PME, PXE Operating System:Windows 11 64-bit, Windows 10 64-bit

Package Contents

Accessories:Cables2 x SATA 6Gb/s cables Miscellaneous1 x I/O Shield 1 x M.2 Rubber Package2 x M.2 SSD screw packages1 x M.2 Key E screw packageInstallation Media1 x Support DVDDocumentation1 x User guide

SATA RAID

0/1/5/10

Number of Memory Slots

4x288pin (DDR4)

M.2

Intel 12th Gen Processors:M.2_1 slot (Key M), type 2242/2260/2280- Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset:M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)* Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.

SATA 6Gbs

4 x SATA 6Gb/s

PCI Express x1

2 x PCIe 3.0 x1

PCI Express 3.0 x16

1 x PCI Express 3.0 x16* Supports x4 mode.

PCI Express 4.0 x16

1 x PCI Express 4.0 x16* Actual support may vary by CPU.

Channel Supported

Dual Channel

Memory Standard

2133*Actual Memory frequency support depends on the CPU types and DRAM modules, 2400, 2666, 2800, 2933, 3000, 3200, 3333(OC), 3400(OC), 3466(OC), 3600(OC), 3733(OC), 4000(OC), 4266(OC), 4400(OC), 4600(OC), 4800(OC), DDR4 5000(OC)+, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Onboard Video Chipset

Supported only by CPU with integrated graphic

Chipset

Intel B660

Supported CPU Technologies

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Date First Available

January 20, 2022

Max Memory Supported

128GB

CPU Socket

LGA 1700* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.

CPU Support

Celeron Processors* Refer to www.asus.com for CPU support list., Pentium Gold, Supports 12th Gen Intel Core

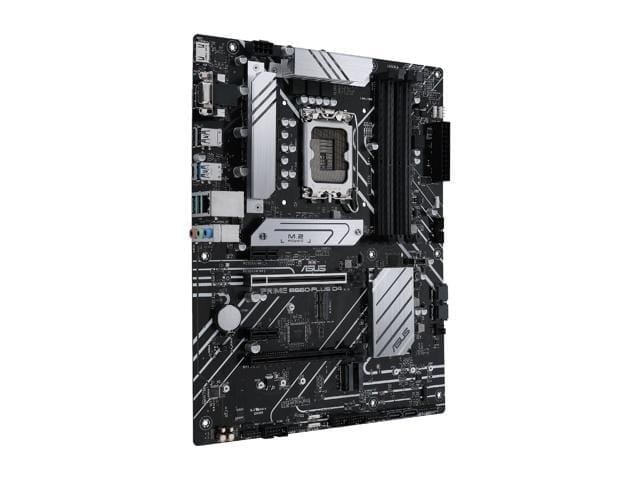

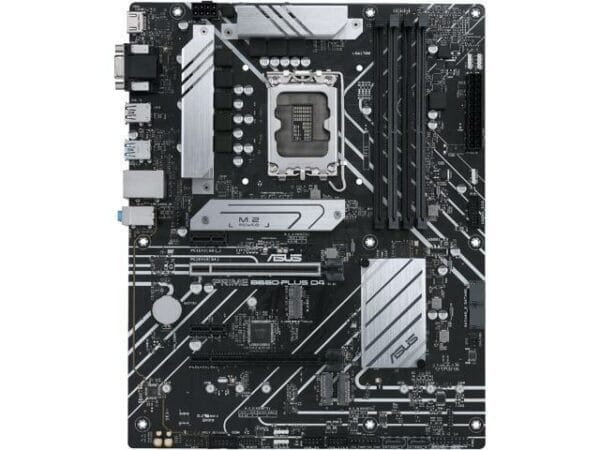

Photos: ASUS PRIME B660-PLUS D4

6 reviews for ASUS PRIME B660-PLUS D4

3.5 out of 5
3
1
0
0
2
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Anonymous

    Overall Review: gets the job done, with a few extra features like usb c support. saved a $100 cause i don’t care about overclocking

    Helpful(0) Unhelpful(0)You have already voted this
  2. Christopher L.

    Pros: I’ve used Asus for almost a decade, which is why I bought this one. Cons: Less than 24 hours after finishing installing and using the motherboard for surfing, games reading email etc. I went in to check BIOS version and it said no bootable devices found and the system shut down. I went to Asus on line and after having followed every recovery tool/method and removing many items, I have yet to even get to BIOS. NOTHING worked and this is one of many systems I’ve built. All I get is the…

    Helpful(0) Unhelpful(0)You have already voted this
  3. Cameron B.

    Pros: -Has good cooling for the power delivery -Plenty of m.2 slots -pci-e 4.0 for the future -xmp is working great with my 3200mhz ram, make sure you put the ram in slots 2 and 4 if you have only two sticks, otherwise xmp won’t work -The pci-e 4.0 m.2 slot works with pci-e 3.0 m.2’s as well Cons: -Could use a few more usb slots on the back Overall Review: If you don’t plan to over clock your cpu and just want memory xmp overlock this motherboard is great.

    Helpful(0) Unhelpful(0)You have already voted this
  4. Angel T.

    Pros: Works great, boots fast, very stable Cons: XMP is not stable at rated speed Overall Review: On my first review I stated that the motherboard won’t accept XMP profiles, well, I was wrong, this motherboard is weird, is the first time in my 23 years of working with computers that a motherboard with dual channel ram is REQUIRED to be on slot 2+4 instead of the typical 1+3. On the other hand, running with G-Skill RipJaws 3600 is not stable at full 3600 speed, had to lower to 3500 to be…

    Helpful(0) Unhelpful(0)You have already voted this
  5. Andrew

    Pros: – 3x m.2 for compact storage with no wires – Nice heatsink for main m.2 with PCIe 4.0 compatibility – 1 x PCI Express 4.0 x16 slot for GPU – 2 x PCIe 3.0 slots (wifi, etc.) – Great brushed aluminum look on heatsinks will compliment most color schemes – 4x SATA connectors for legacy drives – XMP easy as a button click to set up Cons: – No built-in wifi or bluetooth Overall Review: Great looking lga 1700 ATX motherboard that is perfect for upper mid-range builds. If you are looking to…

    Helpful(0) Unhelpful(0)You have already voted this
  6. Samuel A.

    Pros: Works with slow ram Cons: There is an compatibility issue with this RAM and non-k Alder Lake CPU’s. The computer will get stuck in a reboot loop after enabling XMP. Only way to stop it is by removing the CMOS battery. Asus released a “fix” that makes it stable by turning down the ram speed. THIS IS A WELL KNOWN ISSUE, BUYER BEWARE OF B660 BOARDS. GOOGLE IT. Overall Review: Bad. Avoid.

    Helpful(0) Unhelpful(0)You have already voted this
