ASUS Prime B550M-A WiFi AMD AM4

$119.99

(8 customer reviews)
Last updated on October 19, 2024 4:56 pm
0
Add to compare

Highest Price
$119.99 Amazon.com
May 12, 2024
Lowest Price
$75.00 Walmart.com
November 8, 2024
Current Price
$119.99 Amazon.com
October 19, 2024
Since May 12, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: ASUS Prime B550M-A/CSM AMD AM4 (3rd Gen Ryzen microATX Commercial Motherboard (PCIe 4.0, ECC Memory, 1Gb LAN, HDMI 2.1/D-Sub, 4K@60HZ, TPM, ASUS Control Center Express) - $119.99

Specification: ASUS Prime B550M-A WiFi AMD AM4

Product
Brand

Model

PRIME B550M-A (WI-FI)

Product Type
Type

AMD

Specification
Best Seller Ranking

#55 in AMD Motherboards

CPU Socket Type

AM4

CPU Type Support

AMD Zen 3 Ryzen 5000 series

Chipset

AMD B550

Number of Memory Slots

4×288pin

Memory Standard

2133 MHz Un-buffered Memory ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., 2400, 2666, 2800, 3000, 3200, 3466(O.C.), 3600(O.C.), 3866(O.C.), 4000(O.C.), DDR4 4400(O.C)

Max Memory Supported

128GB

Channel Supported

Dual Channel

PCI Express 4.0 x16

3rd Gen AMD Ryzen Processors1 x PCIe 4.0 x16 (x16 mode)

PCI Express 3.0 x16

1 x PCI Express 3.0 x16

PCI Express x16

None

PCI Express x1

AMD B550 Chipset2 x PCIe 3.0 x1

SATA 6Gbs

4 x SATA 6Gb/s

M.2

3rd Gen AMD Ryzen Processors:1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices supportAMD B550 Chipset:1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

SATA RAID

0/1/10

Onboard Video Chipset

Supported only by CPU with integrated graphic:1 x D-Sub1 x DVI-D1 x HDMI 2.1 (4K@60HZ)

Audio Chipset

Realtek ALC887

Audio Channels

7.1 Channels

LAN Chipset

Realtek RTL8111H

Max LAN Speed

10/100/1000Mbps

Wireless LAN

Intel Wi-Fi 6 AX2002x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMOSupports up to 2.4Gbps max data rateSupports dual band frequency 2.4/5 GHzSupports channel bandwidth: HT20/HT40/HT80/HT160Supports PCIe interface

Bluetooth

Bluetooth v5.1** BT 5.1 function will be ready in Windows 10 build 19041 or later.

Back IO Ports

1 x PS/2 keyboard/mouse combo port(s)1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)4 x USB 3.2 Gen 1 (blue) Type-A3 x Audio jack(s)1 x ASUS Wi-Fi Module

HDMI

1 x HDMI

USB 3.0

2 x USB 3.0

Onboard USB

1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

Other Connectors

1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x SPI TPM header1 x S/PDIF out header(s)1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header1 x Speaker connector

Form Factor

Micro ATX

LED Lighting

RGB

Dimensions W x L

9.6" x 9.6"

Power Pin

1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors

Windows 11

Supported

Features

Software Features:ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura SyncAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ updateASUS CPU-ZAI ChargerDAEMON ToolsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeASUS Special Features:ASUS 5X PROTECTION III- ASUS DIGI+ VRM- ASUS LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot Core- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Thermal Solution- Aluminum heatsink designAURA Sync- Standard RGB headers- Addressable Gen 2 RGB headerASUS Lighting Control BIOS:256MB Flash ROM, UEFI AMI BIOSManageability:WOL by PXEOperating System:Windows 10 64-bit

Package Contents

Accessories:I/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVDUser manual1 x Wi-Fi moving antenna1 x M.2 SSD screw package(s)

Date First Available

June 08, 2020

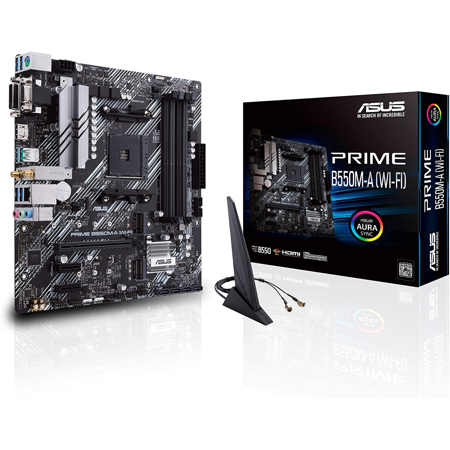

Photos: ASUS Prime B550M-A WiFi AMD AM4

8 reviews for ASUS Prime B550M-A WiFi AMD AM4

4.8 out of 5
6
2
0
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. kevin c.

    Pros: (When I bought this board there were no reviews). M.2 Gen4 support with my 3600x. I swore the next computer I built would not have a sata anything in it. 6yrs later, it’s real. The m.2 gen4 is amazing. Of course I had to give up my windows 7 and jump on the 10 band wagon. This will take time to get use too. This is kinda a no thrills board to some people, but for the price verses the x570s and it has wifi to boot….just right. I’m coming off an AMD A10 build that’s 6 yrs old. A10 you…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Michael W.

    Pros: It has everything my grandson doesn’t k ow he needs Overall Review: Yes I would recommend this mombo

    Helpful(0) Unhelpful(0)You have already voted this
  3. Anonymous

    Pros: Ryzen 5000 Support PCI 4.0 Support WI FI 6 Overall Review: Yes

    Helpful(0) Unhelpful(0)You have already voted this
  4. Michael B.

    Pros: Good feature set for the Micro ATX format. Great Wifi (only used wifi 5 (my Starlink internet system that’s on order comes with wifi 6 router} so we’ll see how that works out. Integrated BlueTooth works great. The board also has PCI-E 4, for GPU and M.2 drive interface with lightning-fast speeds. Lots of 3.0+ USB ports. Decent amount of Fan headers, RGB headers. Audio console took a long time to figure out final settings and adjustments, but once done my old analog Logitech 5.1…

    Helpful(0) Unhelpful(0)You have already voted this
  5. Andrew R.

    Pros: This MB has really good WIFI included. I built this machine to stream events at the high school that I work at. This board is great! The micro ATX Board has more than enough connections for my pcie streaming card, an Nvidia GPU (not a new one obviously, I am not an oil baron), and plenty of usb 3.0 for anything I need to connect. Originally I had this connected to an AMD 3400G without a GPU, and it worked pretty well. I lucked into a 5600x and upgraded. My streaming setup is light and…

    Helpful(0) Unhelpful(0)You have already voted this
  6. Theodore O.

    Pros: BIOS updated out of the box to support 4th generation Ryzen CPUs. 2 M.2 slots without sacrificing sata ports. Built-in AX WiFi. PCI Express 16 version 4. Etc Cons: Only 4 sata ports but using the m.2 slots does not disable any of the sata ports so compared to the fullsize atx motherboard with 6 SATA ports two of which are disabled if you use the m.2 port connected to the chip set it is a wash. Overall Review: Great Mobo for the money, delivery quickly and for free.

    Helpful(0) Unhelpful(0)You have already voted this
  7. CHARLES B.

    Pros: I like the WIFI feature, and the included graphics in the RYZEN 5600 I used. Cons: UPDATE: “System will not stay up, very unstable at standard clock speeds. Unusable, I wasted my money.” 1/18/2002 UPDATE: VERY LATEST UPDATE FROM WINDOWS 11 FIXED THE INSTABILITY PROBLEM> SYSTEM RUNNING VERY STABLE. IT WAS A FRUSTRATION, BUT NOW ALL IS CORRECTED> RUNNING AT AT 4.2 OVERCLOCKED< BUT I WILL BACK DOWN TO STOCK SPEED. Overall Review: NOTE: INSTALL WITH THE VERY LATEST WINDOWS UPDATE I have…

    Helpful(0) Unhelpful(0)You have already voted this
  8. rebecca r.

    Pros: -Wireless features exceed expectations. -Sturdy construction. -Easy to set up. -Comes with more headers than you probably need in a small build. Cons: -Does not come with heat spreaders for M.2 drives. -Wireless antenna cable could be longer. Overall Review: This is a great motherboard for micro-ATX builds. There are plenty of features, fan headers, RGB connectivity, and wireless features. The included antenna supports the latest WIFI protocols and the latest Bluetooth. PCI-e 4.0…

    Helpful(0) Unhelpful(0)You have already voted this
