ASUS AM4 TUF Gaming X570-Plus

$199.99

(8 customer reviews)
Last updated on October 18, 2024 9:05 pm
0
Add to compare

Highest Price
$199.99 Bestbuy.com
July 10, 2024
Lowest Price
$99.00 eBay
November 8, 2024
Current Price
$199.99 Bestbuy.com
October 19, 2024
Since May 14, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: ASUS - TUF GAMING X570-PLUS (WI-FI) (Socket AM4) USB-C Gen2 AMD Motherboard with LED Lighting - $199.99

Specification: ASUS AM4 TUF Gaming X570-Plus

Product
Brand

Model

TUF GAMING X570-PLUS (Wi-Fi)

Specification
Best Seller Ranking

#1 in AMD Motherboards

Audio Channels

8 Channels

Package Contents

Accessories:User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant)1 x TUF GAMING Sticker1 x TUF Certification card(s)

Features

Multi-GPU Support:3rd and 2nd Gen AMD Ryzen, 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics ProcessorsSupports AMD CrossFireX TechnologySpecial Features:ASUS TUF PROTECTION- ASUS SafeSlot: Protect your graphics card Investment- ASUS ESD Guard: Enhanced ESD protection- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: Precision control for stable power- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!AURA:- Aura Lighting Control- Aura RGB Strip Headers- Addressable Gen 2 HeaderASUS Exclusive Features:- AI Suite 3- Ai ChargerASUS Quiet Thermal Solution:- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink- ASUS Fan Xpert 4ASUS EZ DIY:- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeASUS Q-Design:- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMMDIY Friendly Design- Procool- SafeSlot- Digi+ VRM- Highly Durable components- ESD GuardsBIOS:256MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory informationManageability:WOL by PME, PXEOperating System:Windows 10 64-bit

Windows 11

Supported

Power Pin

1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)

Dimensions W x L

12.0" x 9.6"

LED Lighting

RGB

Form Factor

ATX

Other Connectors

2 x Aura RGB Strip Header(s)1 x Addressable Gen 2 header(s)1 x SPI TPM header1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Clear CMOS jumper(s)1 x COM port header

Onboard USB

1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

Back IO Ports

1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)1 x Optical S/PDIF out5 x Audio jack(s)4 x USB 3.2 Gen 1 (up to 5Gbps) ports3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C)ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

Bluetooth

Bluetooth 5.0

Wireless LAN

Intel Wireless-AC 9260Wi-Fi 802.11 a/b/g/n/acSupports dual band frequency 2.4/5 GHzSupports MU-MIMOSupports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed

Max LAN Speed

10/100/1000Mbps

LAN Chipset

Realtek L8200A

Audio Chipset

Realtek ALC S1200A High Definition Audio CODEC

Onboard Video Chipset

Integrated Graphics in the 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics ProcessorsMulti-VGA output support: HDMI/DisplayPort ports- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz- Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz

SATA RAID

0/1/10

M.2

3rd Gen AMD Ryzen Processors:1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support2nd Gen AMD Ryzen, 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors:1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices supportAMD X570 chipset:1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support

SATA 6Gbs

8 x SATA 6Gb/s

PCI Express x1

2 x PCIe 4.0 x1

PCI Express 4.0 x16

3rd Gen AMD Ryzen Processors1 x PCIe 4.0 x16 (x16 mode)2nd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors1 x PCIe 3.0 x16 (x16 mode)2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (x8 mode)AMD X570 chipset1 x PCIe 4.0 x16 (max at x4 mode)

Channel Supported

Dual Channel

Memory Standard

2133 MHz Un-buffered Memory, 2133 MHz Un-buffered Memory2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics ProcessorsDDR4 3200(O.C.), 2133 MHz Un-buffered Memory2nd Gen AMD Ryzen ProcessorsDDR4 3600(O.C.), 2400, 2666, 2800(O.C.), 2933(O.C.), 3000(O.C.), 3200(O.C.), 3400(O.C.), 3466(O.C.), 3rd Gen AMD Ryzen ProcessorsDDR4 4400(O.C.)

Number of Memory Slots

4x288pin (DDR4)

Chipset

AMD X570

CPU Socket Type

AM4

Date First Available

February 27, 2022

CPU Type Support

2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list., 3rd, AMD AM4 Socket 3rd and 2nd Gen AMD Ryzen

Max Memory Supported

128GB

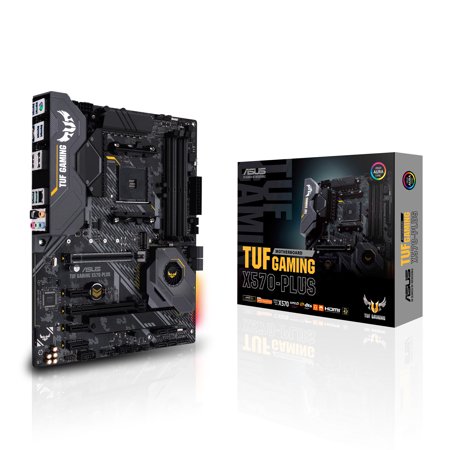

Photos: ASUS AM4 TUF Gaming X570-Plus

8 reviews for ASUS AM4 TUF Gaming X570-Plus

4.4 out of 5
4
3
1
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Dean B.

    Pros: – Like the RGB options, even though I’ll probably look at the lights for 5 mins, and then never again – like the fan headers – plenty to go around – like the BIOS configuration and customization options – like FanXpert 4 software – like that it supports 1st through 3rd Gen Ryzen, and 1st through 2nd Gen Ryzen’s with graphics – The board has a setting, DOCP – enabling this allows you to use the XMP profile on the QVL memory to achieve memory OC timings easily without having to manually…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Anonymous

    Cons: I hope there is somewhere information on Asus web site about bellow Win 10 installation issue. Overall Review: I was unable to install Win 10 to NVME or SSD drive, at the end of process was getting error: BUGCODE_NDIS-DRIVER. To save you headache here is little help: To solve it, you should disable LAN controller, Wi-Fi controller, and Bluetooth controller. To do it go in to UEFI in ADVANCED MODE (F7) Chose ADVANCED ONBOARAD DEVICE CONFIGURATION Realtek LAN controller OFF Wi-Fi…

    Helpful(0) Unhelpful(0)You have already voted this
  3. Anonymous

    Pros: – Only my second build but still quick and easy to set up. – Great price to specs ratio; As of writing this, you’ll be hard-pressed to find another mobo this new with Wi-Fi, Bluetooth, and this much porting for the same price or less. – Minimal RGB that’s easy to turn off permanently from BIOS, could be a con for some but I’m not really into the look. – Inaudible chipset fan at default settings – IO shield worked fine for my case (Enthoo Pro), no padding necessary as described in…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Michael B.

    Pros: – 3rd gen Ryzen ready – built-in 802.11ac Intel WiFi & BT 5.0 – good documentation supporting error-free build; this is the first PC I’ve assembled myself (have prior experience swapping components and a decade ago would have called myself a PC enthusiast) Cons: – none Overall Review: Was concerned about other reviews which indicated the BIOS had issues preventing successful Windows install and required comms components disabled. This is not an issue I encountered (maybe my board had…

    Helpful(0) Unhelpful(0)You have already voted this
  5. sam c.

    Pros: A gazillion features in the UEFI(BIOS) Worked right off the bat with my new Ryzen 9 3900X Supports PCIE 4.0 which will help the next time I upgrade my GPU Supports PCIE 3.0 for current generation cards Multiple PCIE slots for SLI/Crossfire of video cards Allowed my 3200mhz GSkill TridentZ ram to not only to reach 3200mhz, but go beyond it. (currently stable at 3266mhz) Board runs cool, temps never going above 55c WiFi works amazing and gives me 800+mbps up/down connection to my AP…

    Helpful(0) Unhelpful(0)You have already voted this
  6. James S.

    Pros: Screaming fast with a 3900x Ryzen 12 core. Mine came with the latest BIOS already. Threw in the GSkill Trident 32GB 3600 kit with it. Cons: Windows 10 O/s is incompatible with WIFI out of the box. Causes BSOD on install and boot. Needs different driver before you enable it again in BIOS. Overall Review: I did read the reviews. The person who mentioned the Blue Screen of Death is caused by the networking adapter is telling the truth. It mentioned the NDIS driver which is a network…

    Helpful(0) Unhelpful(0)You have already voted this
  7. Taylor M.

    Pros: Works as expected once the BSOD issues were fixed. Cons: It took me two full days of frustration to figure out that disabling Bluetooth and WiFi in BIOS would stop Windows from cashing constantly. Overall Review: I’ve been building my own systems for about 10 years. I decided to switch from Intel to AMD for the multi-core/hyperthreading capabilities. This was the most challenging build I’ve ever done. Previously I did my research, ordered my parts, put them together, and everything…

    Helpful(0) Unhelpful(0)You have already voted this
  8. Cody M.

    Pros: Leaving this review bc people were asking about BIOS version for running the new 5000 AMD processors. Mine worked. I didn’t have to update the BIOS. March2021 Overall Review: I would recomend this

    Helpful(0) Unhelpful(0)You have already voted this
