ASRock Z690M-ITX/ax

Original price was: $199.99.Current price is: $99.99.

★★★★★
(2 customer reviews)
Last updated on February 17, 2025 1:30 am

Best $ Amazon.com

0
Add to compare

Highest Price
$411.38 Newegg.com
February 17, 2025
Lowest Price
$99.99 Amazon.com
February 23, 2025
Current Price
$99.99 Amazon.com
February 17, 2025
Since November 9, 2024
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Didn't find the right price? Set price alert below

Set Alert for Product: ASROCK Z690M Phantom Gaming 4 Supports 12th Gen Intel® Core™ Processors (LGA1700) Motherboard - $99.99

Specification: ASRock Z690M-ITX/ax

Product
Brand

Model

Z690M-ITX/ax

Product Type

Intel

Specification
Best Seller Ranking

#56 in Intel Motherboards

Audio Chipset

Realtek ALC897

LAN Chipset

Dragon RTL8125BG

Second LAN Chipset

Intel I219V

Max LAN Speed

10/100/1000/2500Mbps + 10/100/1000Mbps

Wireless LAN

802.11ax Wi-Fi 6E ModuleIEEE 802.11a/b/g/n/ax

Bluetooth

Yes

Back IO Ports

2 x Antenna Ports1 x HDMI Port1 x DisplayPort 1.44 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection)1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)2 x USB 2.0 Ports (Supports ESD Protection)2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)1 x BIOS Flashback ButtonHD Audio Jacks: Line in, Front Speaker, Microphone

Audio Channels

7.1 Channels

Onboard USB

1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)1 x Front Panel Type C USB 3.2 Gen2x2 Header (Supports ESD Protection

Form Factor

Mini ITX

Dimensions W x L

6.7" x 6.7"

Power Pin

1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

Windows 11

Ready

Features

Unique Feature:ASRock USB 3.2 Gen2- ASRock Front Panel Type-C USB 3.2 Gen2 Header (10 Gb/s)- ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s)- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)ASRock Super Alloy- Premium 60A Power Choke- 50A Dr.MOS- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- Sapphire Black PCB- High Density Glass Fabric PCB- 8 Layer PCB2.5G LAN802.11ax Wi-Fi 6EASRock Auto Driver InstallerASRock Steel SlotASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopBIOS Feature:- 256Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustmentSupport CD:- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and ToolbarSoftware and UEFI:Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC* These utilities can be downloaded from ASRock Live Update & APP Shop.UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID InstallerHardware Monitor:- Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans- Voltage monitoring: CPU Vcore, +12V, +5V, +3.3VOS:- Microsoft Windows 11, 10 64-bitCertifications:- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Package Contents

Accessories:- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 2 x Screws for M.2 Sockets

Other Connectors

1 x RGB LED Header* Supports in total up to 12V/3A, 36W LED Strip.1 x Addressable LED Header* Supports in total up to 5V/3A, 15W LED Strip.1 x CPU Fan Connector (4-pin)* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.1 x Chassis Fan Connector (4-pin)* The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.1 x Front Panel Audio Connector

SATA RAID

0/1/5/10

Memory Standard

DDR4 5000+(OC)** Supports DDR4 3200 natively.* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)

Intel Optane Ready

Yes

Supported CPU Technologies

Turbo Boost Technology 3.0

Chipset

Intel Z690

Onboard Video Chipset

Supported only by CPU with integrated graphic

Number of Memory Slots

2x288pin (DDR4)

Channel Supported

Dual Channel

PCI Express 5.0 x16

1 x PCI Express 5.0 x16** Supports PCIe riser cards to extend one x16 slot to two x8 slots.* Supports NVMe SSD as boot disks.

Other Slots

1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)

SATA 6Gbs

4 x SATA 6Gb/s

M.2

1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes** Supports Intel Optane Technology.* Supports Intel Volume Management Device (VMD).* Supports NVMe SSD as boot disks.* Supports ASRock U.2 Kit.

Date First Available

January 05, 2022

Max Memory Supported

64GB

CPU Socket

LGA 1700* Dedicated LGA1700 mounting bracket is required.

CPU Support

Celeron Processors, Supports 12th Gen Intel Core ProcessorsSupports Intel Pentium

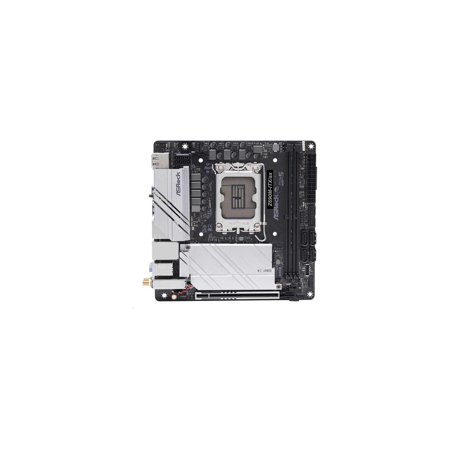

Photos: ASRock Z690M-ITX/ax

ASRock Z690M-ITX/ax ASRock Z690M-ITX/ax

2 reviews for ASRock Z690M-ITX/ax

4.5 out of 5
★★★★★
★★★★★
1
★★★★★
1
★★★★★
0
★★★★★
0
★★★★★
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. ★★★★★

    Anonymous –

    Pros: All the ports that one could need Updated the bios via USB flash with no CPU/Memory Handle 64GB at XMP with no issues and passed memtest Running 12600K CPU No issues with installing OS Cons: partial VRM heatsink so either have a good airflow or put some vrm heatsink especially if using cpu with high power draw. Overall Review: Running with no issues, and that’s great because this is the first time, I’m using this brand. This is one of the few Z690 ITX DDR4 board and I’m happy that I…

    Helpful(0) Unhelpful(0)You have already voted this
  2. ★★★★★

    Anonymous –

    Pros: I’ve had no problems with anything. Cons: VRMs partially uncovered. Overall Review: I’m running a 12900K in it, and you can modify the power limits so it runs at full load (240 watts for this chip) all the time. By default it’s at 125, and there’s an option to use 150, but I believe these are holdovers from previous boards/BIOS, since it’s the exact same options I saw on other versions of this board from 11th gen. When you manually change PL1/PL2, the change stick, so that’s the ideal…

    Helpful(0) Unhelpful(0)You have already voted this
