ASRock X570 TAICHI

$212.99

(8 customer reviews)
Last updated on February 17, 2025 12:31 am
0
Add to compare

Highest Price
$299.98 Newegg.com
October 19, 2024
Lowest Price
$212.99 Newegg.com
November 8, 2024
Current Price
$212.99 Newegg.com
February 17, 2025
Since October 19, 2024
This site uses affiliate links. We may earn a commission at no cost to you.
Prices and details are subject to change; check the seller’s site for updates.

Didn't find the right price? Set price alert below

Set Alert for Product: ASRock X570 TAICHI AM4 AMD X570 SATA 6Gb/s ATX AMD Motherboard - $212.99

Specification: ASRock X570 TAICHI

Product
Brand

Model

X570 TAICHI

Product Type

AMD

Specification
Best Seller Ranking

#72 in AMD Motherboards

Onboard USB

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)

Audio Chipset

Realtek ALC1220

Audio Channels

7.1 Channels

LAN Chipset

Intel i211AT

Max LAN Speed

10/100/1000Mbps

Wireless LAN

Intel 802.11 ax Wi-Fi ModuleIEEE802.11a/b/g/n/ax

Bluetooth

Bluetooth 5.0

SATA RAID

0/1/10

Back IO Ports

2 x Antenna Ports1 x PS/2 Mouse/Keyboard Port1 x HDMI Port1 x Optical SPDIF Out Port1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)1 x Clear CMOS Button1 x BIOS Flashback ButtonHD Audio Jacks: Rear Speaker, Central, Bass, Line in, Front Speaker, Microphone (Gold Audio Jacks)* Ultra USB Power is supported on USB3_5_6 ports.* ACPI wake-up function is not supported on USB3_5_6ports.

Other Connectors

1 x TPM Header1 x SPI TPM Header1 x Power LED and Speaker Header1 x AMD Fan LED Header*1 x RGB LED Header**1 x Addressable LED Header***1 x CPU Fan Connector (4-pin)****1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******1 x Front Panel Audio Connector (15µ Gold Audio Connector)1 x AMD LED Fan USB Header1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt AIC Card only)1 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED1 x Clear CMOS Button* The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.** Supports in total up to 12V/3A, 36W LED Strip.*** Supports in total up to 5V/3A, 15W LED Strip.**** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.***** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

Form Factor

ATX

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin ATX Power Connector (Hi-Density Power Connector)1 x 8-pin 12V Power Connector (Hi-Density Power Connector)1 x 4-pin 12V Power Connector (Hi-Density Power Connector)

Windows 11

Supported

Onboard Video Chipset

Supported only by CPU with integrated graphic

M.2

1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)*1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)*1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)** If M2_3 is occupied, PCIE5 slot will be disabled.* Supports NVMe SSD as boot disks.* Supports ASRock U.2 Kit.* Support RAID 0/1/10.

SATA 6Gbs

8 x SATA 6Gb/s

Other Slots

1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11 ax module (on the rear I/O)15µ Gold Contact in VGA PCIe Slot (PCIE1)

PCI Express x1

2 x PCI Express 4.0 x1

PCI Express 4.0 x16

3 x PCI Express 4.0 x16** Actual support may vary by CPU.* Supports NVMe SSD as boot disks.* When Picasso is installed, this motherboard supports single graphics card on either PCIE1 or PCIE5 only.

Buffer Supported

Un-buffered

Channel Supported

Dual Channel

Memory Standard

2133 (AMD Ryzen series CPUs (Picasso)), 2133 (AMD Ryzen series CPUs (Pinnacle Ridge))DDR4 3466+(OC), 2133 (AMD Ryzen series CPUs (Vermeer & Matisse), 2400, 2667, 2933, 3200, 3200(OC), 3466(OC), 3600(OC), 3733(OC), 3800(OC), 3866(OC), 4000(OC), 4133(OC), 4200(OC), 4266(OC), 4300(OC), 4400(OC), APUs (Renoir))DDR4 3600+(OC), DDR4 4666+(OC)

Number of Memory Slots

4x288pin (DDR4)

Chipset

AMD X570

Date First Available

July 07, 2019

Max Memory Supported

128GB

CPU Socket

AM4

CPU Support

2000 Series Processors** BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASRock website for CPU support list., 3000 Series, 4000 G-Series, Supports AMD Ryzen 5000 Series

ECC

Yes

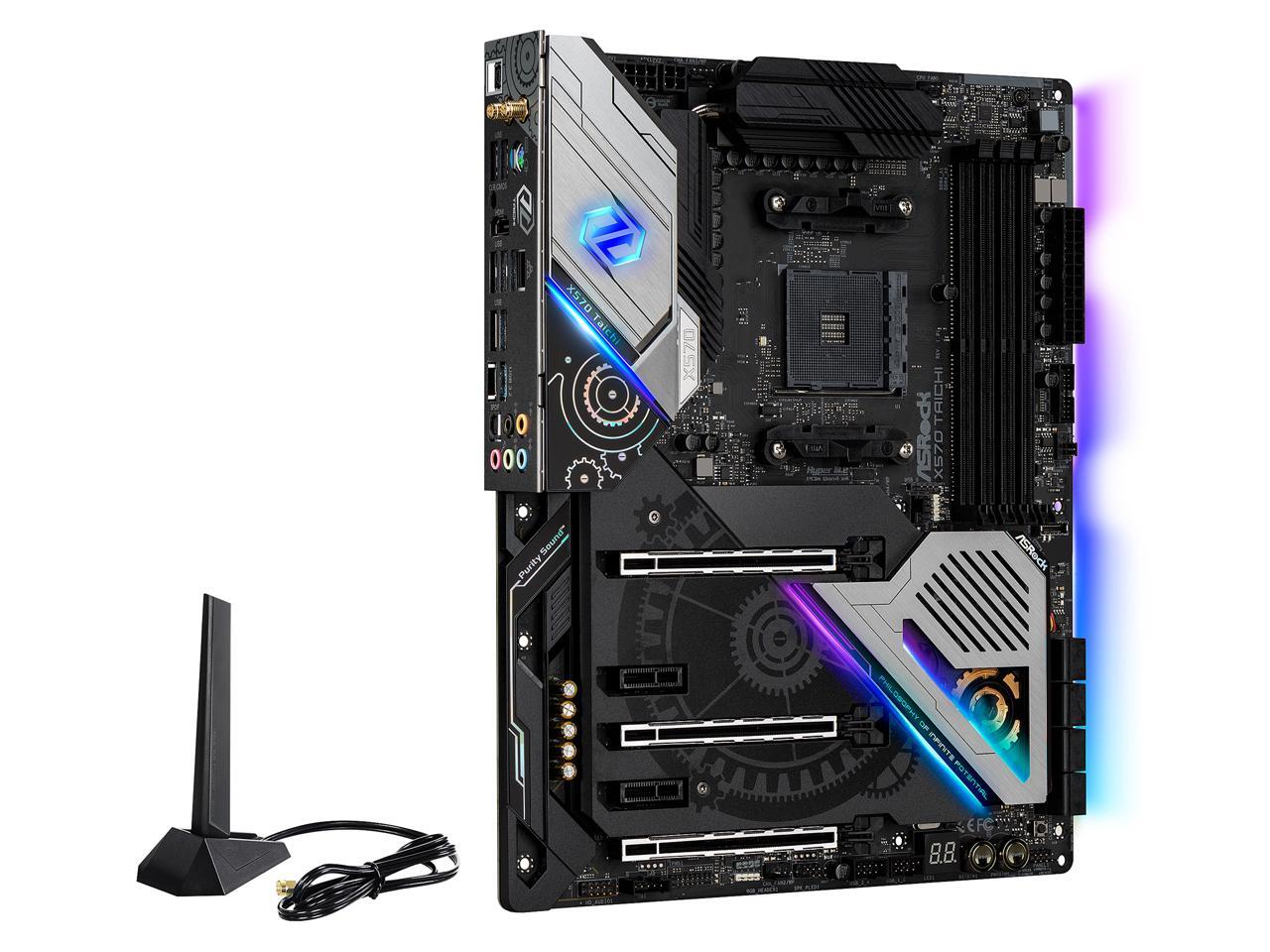

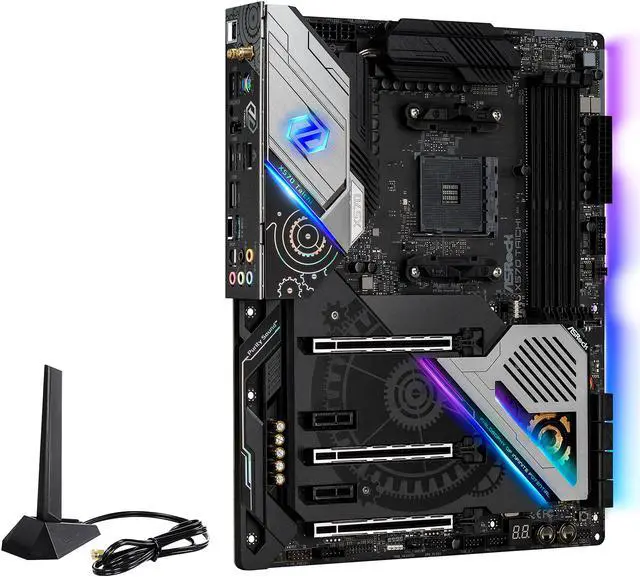

Photos: ASRock X570 TAICHI

8 reviews for ASRock X570 TAICHI

4.8 out of 5
6
2
0
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Thomas P.

    Pros: Sturdy-feeling motherboard – backplate helps to stiffen the board with less warping when using heavy graphics cards Full-featured board with 3xNVME connections, 2×8 Gen 4 PCIe slots for high speed storage or graphics, and lots of IO on back panel MASSIVE chipset heatsink – this includes the actively cooled heatsink over the PCH and the connected heat shield for the NVME drives, which takes up nearly half of the board Chipset runs cool in my usage, it has never peaked over 65C and…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Eric V.

    Pros: – Stable. No issues even on the stock bios the board shipped with. – Read about the chipset fan placement and haven’t had an issue yet. Will update if that becomes a problem. – ARGB and RGB headers if you’re into that sort of thing (I am, it looks great). – Wifi is fine. – Gen4 drive slaps. Cons: – None whatsoever at this point in time. Overall Review: Houses my 3900x and does an excellent job. The performance has been spectacular and I will definitely consider ASRock again in the future.

    Helpful(0) Unhelpful(0)You have already voted this
  3. Janice W.

    Overall Review: I have had this motherboard since July 2019 and put a Ryzen 9 3900X in it back then. This is a strong recommend. The BIOS is easy enough to figure out. It handles 32 GBs of G.Skill Flare-X (3200) very well. The layout of the board is superb and has built in wifi. The BEST feature for me was having 3 M.2 slots and several SATA ports as well.

    Helpful(0) Unhelpful(0)You have already voted this
  4. Sean B.

    Pros: Very feature rich. The included reset and power buttons directly on the board, plus the LED digit indicator are a great feature. Very clean and good looking board. Excellent Aesthetics. The RGB effects on the board are nice. Lots of ports and good VRM design. I should be able to upgrade to a 4900x or 4950x down the line easily. The USB 3.2 header is fixed, position wise, so that is great. Cons: BIOS is not the easiest to work with. The lighting effect system isn’t all that great and…

    Helpful(0) Unhelpful(0)You have already voted this
  5. Anonymous

    Pros: * ASRock BIOS is awesome and full featured * Fast board * Lighting is good * Love the metal shielding * Great speeds w/ NVME drives * Easy forgiving OC Cons: FYI: AMD Ryzen 9 3950X, 64GB Trident Z G.Skill DDR4 PC3600 [UPDATE]The USB trick didn’t pan out long term. I ended up trying a bunch of things but the thing that seems to work so far (fingers crossed) is going into the BIOS and in the ‘External Voltage Settings and Load Line Calibration’ there are two options I changed, ‘CPU Vcore…

    Helpful(0) Unhelpful(0)You have already voted this
  6. Joseph A.

    Pros: drops in Ryzen 3000 good power delivery great I/O Tasteful RGB Not as expensive as some of the other boards with similar features good wifi/Bluetooth antenna solid build quality surface mounted power/reset buttons Cons: The bios isn’t as friendly as some other brands I’ve seen but is still functional and powerful. Overall Review: Great board, was up and running with my 3800x in no time. took me a little bit to get used to the bios but I got there. You won’t spend much time in there…

    Helpful(0) Unhelpful(0)You have already voted this
  7. ANTHONY

    Pros: Bought July, 2019. UPDATED 4/22/20 Board looks great, its sturdy and has many a great function such as its fan tuning which keeps the case pretty darn quiet while also keeping temps under control. Another plus is the south bridge fan is not loud in my experience. the wifi is excellent, and RAM support has been good as my RAM wasn’t on the QVL but it runs just fine at its advertised overclock. So far this board has been powerful and forgiving. Cons: Personal preference but I really…

    Helpful(0) Unhelpful(0)You have already voted this
  8. angel v.

    Pros: Feature pack to the brim , low price , exceeded my expectations. Definitely will recommend to buy. Great overclocking options and pci express 4.0 for my rtx3090 and nvme 4.0. Running great with my 5600x and g.skill trident-z Neo 3800cas 14. Cons: Bios need a lot of work , fclk limited to 1800 with latest Bios , Ram speed limited to ddr4-3600Mhz max. **Please Asrock fix the Bios issues and it will be a perfect motherboard**. Lots of potential once all the bugs in the Bios get fix….

    Helpful(0) Unhelpful(0)You have already voted this
