ASRock Phantom Gaming B550 PG VELOCITA

Original price was: $241.48.Current price is: $130.99.

(8 customer reviews)
Last updated on November 8, 2024 9:18 am
0
Add to compare

Highest Price
$135.99 Walmart.com
July 31, 2024
Lowest Price
$130.99 Newegg.com
October 19, 2024
Current Price
$130.99 Walmart.com
November 8, 2024
Since July 31, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: Asrock B550 PG VELOCITA Socket AM4 AMD B550 DDR4 Quad CrossFirex SATA3 & USB3.2 M.2 ATX Motherboard - $130.99

Specification: ASRock Phantom Gaming B550 PG VELOCITA

Product
Brand

Model

B550 PG VELOCITA

Series

Phantom Gaming

Product Type
Type

AMD

Specification
Best Seller Ranking

#50 in AMD Motherboards

M.2

1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (with Matisse) or Gen3x4 (32Gb/s) (with Renoir)**1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x2 (16Gb/s)**** Supports NVMe SSD as boot disks** Supports ASRock U.2 Kit

Windows 11

Supported

Power Pin

1 x 24-pin ATX Power Connector (Hi-Density Power Connector)1 x 8-pin 12V Power Connector (Hi-Density Power Connector)1 x 4-pin 12V Power Connector (Hi-Density Power Connector)

Dimensions W x L

12.0" x 9.6"

LED Lighting

RGB

Form Factor

ATX

Other Connectors

1 x SPI TPM Header1 x Power LED and Speaker Header2 x RGB LED Headers*2 x Addressable LED Headers**1 x CPU Fan Connector (4-pin)***1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****1 x Front Panel Audio Connector (15µ Gold Audio Connector)1 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED* Support in total up to 12V/3A, 36W LED Strip.** Support in total up to 5V/3A, 15W LED Strip.*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**** CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.***** CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.

Onboard USB

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)

Back IO Ports

2 x Antenna Mounting Points1 x PS/2 Mouse/Keyboard Port1 x HDMI Port1 x Optical SPDIF Out Port1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)2 x USB 3.2 Gen1 Ports (Supports ESD Protection)4 x USB 2.0 Ports (Supports ESD Protection)*1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Rear Speaker, Central, Bass, Line in, Front Speaker, Microphone (Gold Audio Jacks)* Ultra USB Power is supported on USB_34 ports.* ACPI wake-up function is not supported on USB_34 ports.

Max LAN Speed

10/100/1000/2500Mbps

LAN Chipset

Dragon RTL8125BG

Audio Channels

7.1 Channels

Audio Chipset

Realtek ALC1220

Onboard Video Chipset

Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*DirectX 12, Pixel Shader 5.0Shared memory default 2GB. Max Shared memory supports up to 16GB.**Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60HzSupports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)Supports HDR (High Dynamic Range) with HDMI 2.1Supports HDCP 2.3 with HDMI 2.1 PortSupports 4K Ultra HD (UHD) playback with HDMI 2.1 PortSupports Microsoft PlayReady* Actual support may vary by CPU.** The Max shared memory 16GB requires 32GB system memory installed.

SATA RAID

0/1/10

SATA 6Gbs

6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug** M2_2 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled.

Other Slots

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module15µ Gold Contact in VGA PCIe Slot (PCIE1)

PCI Express x1

2 x PCI Express 3.0 x1 Slots

PCI Express 3.0 x16

AMD Ryzen series CPUs (Matisse)- 1 x PCI Express x16 Slots (PCIE3: Gen3 x4 mode)* AMD Ryzen series APUs (Renoir)- 1 x PCI Express x16 Slots (PCIE3: Gen3 x4 mode)* Supports NVMe SSD as boot disks

PCI Express 4.0 x16

AMD Ryzen series CPUs (Matisse)- 1 x PCI Express x16 Slots (PCIE1: Gen4x16 mode)* AMD Ryzen series APUs (Renoir)- 1 x PCI Express x16 Slots (PCIE1: Gen3x16 mode)* Supports NVMe SSD as boot disks

Channel Supported

Dual Channel

Memory Standard

2133 ECC & non-ECC, 2400, 2667, 2933, 3200, 3466(OC), 3600(OC), 3733(OC), 3800(OC), 3866(OC), 4000(OC), 4133(OC), 4200(OC), 4266(OC), 4333(OC), 4400(OC), 4466(OC), 4533(OC), 4600(OC), 4666(OC), AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC), ECC is only supported with PRO CPUs., un-buffered memory** For Ryzen Series CPUs (Picasso), un-buffered memory*AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)

Number of Memory Slots

4x288pin (DDR4)

Chipset

AMD B550

CPU Socket Type

AM4

Date First Available

June 12, 2020

CPU Type Support

future AMD Ryzen Processors** Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASRock website for CPU support list., Supports 3rd Gen AMD AM4 Ryzen

Max Memory Supported

128GB** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

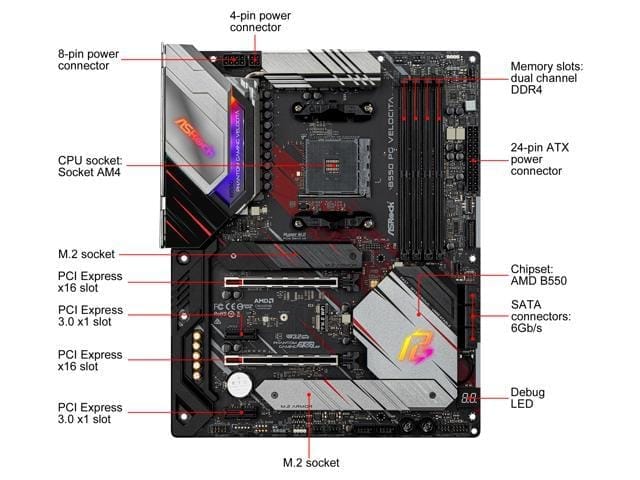

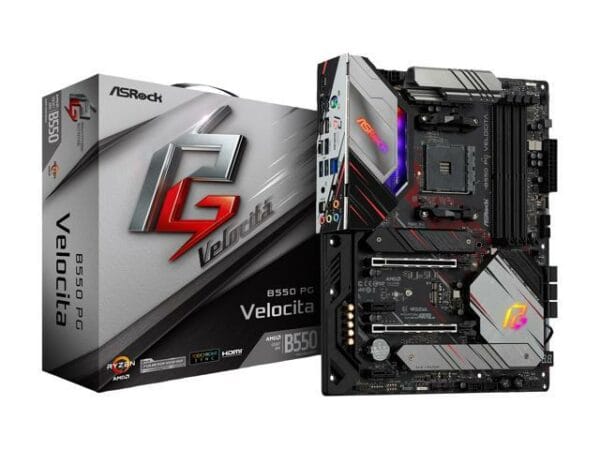

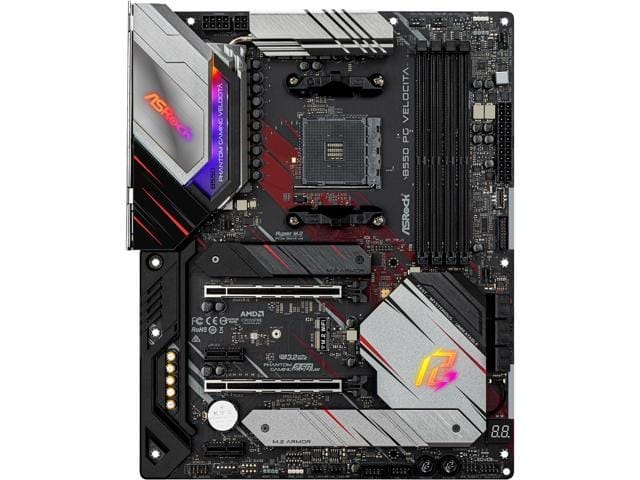

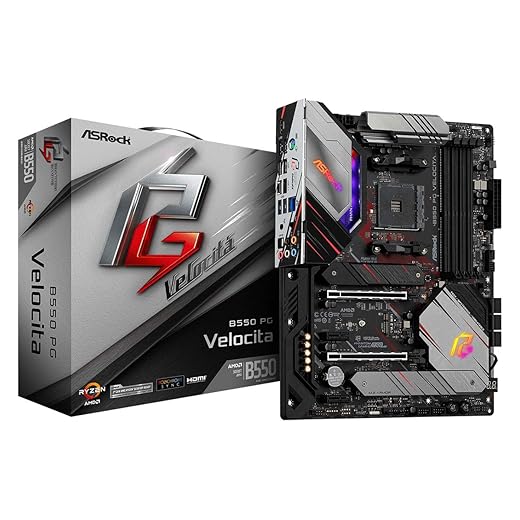

Photos: ASRock Phantom Gaming B550 PG VELOCITA

8 reviews for ASRock Phantom Gaming B550 PG VELOCITA

4.8 out of 5
6
2
0
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Garrett L.

    Pros: -Beautiful motherboard -Great I/O -Easy to install Cons: -M.2_1 did not recognize my NVMe drive Overall Review: Great motherboard for the price you are getting what you pay for and its really good but when i tried to install a Western Digital Blue 1TB NVMe SSD it wouldn’t pick up the drive and i had to use the second slot under the PCIe slots. Annoying, considering it required different stand offs for a standard size M.2 drive but other than that the mobo is really nice. Could be an…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Anonymous

    Pros: Rgb is Amazing I/o is really good the ports are enough for everyone My m.2 is cool Heat sinks keep think cool Come with Velcro straps for cable management which is amazing Come with stickers to personalize your room setup or pc Cons: Nothing Overall Review: Amazing board has everything you need and the rgb give me 100. FPS More

    Helpful(0) Unhelpful(0)You have already voted this
  3. JOHNNIE L.

    Pros: LOVE This Is the best motherboard I have used since 990fx and i love the power delivery and Really love post code Readout makes it easy To diagnose when over clocking Great features It is just as good as an x570 motherboard Cons: The only thing That I don’t like I wish it had More USB on the rear But for most people It has plenty Also wish there were more lighting zones for there RGB Overall Review: If you want a great mother board at a great price 14 phase VRM 60 amp power stages…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Ian C.

    Overall Review: Installed this great looking board with the Corsair Force mp 600 gen 4 nvme drive, a 5700xt and a Ryzen 5 3600 and loaded up Ghost Recon breakpoint at 1440p max settings and it performed amazingly well. It was a noticeable improvement over the B450 I had previously. Bios, utilities and rgb are good and the temps are cool.

    Helpful(0) Unhelpful(0)You have already voted this
  5. Mark R.

    Pros: -Beautiful Looking Motherboard -Well Cooled VRMs -Easy to Navigate BIOS -Quick and Easy BIOS Flashing Cons: A high profile GPU like my Asrock Taichi 5700xt will block the SATA ports, which will require you to remove the GPU before adding a SATA cable. Overall Review: I haven’t had any major issues using this motherboard, the installation and setup was simple, up until I needed to add my storage HDD. Otherwise, the motherboard can easily handle both my Ryzen 9 3900x and 5700xt under…

    Helpful(0) Unhelpful(0)You have already voted this
  6. Paul H.

    Pros: -Decent board for the price -Feature rich. Trouble shooting LED -Very well built Cons: -RGB headers do not support splitters. You lose color choices the minute you use a splitter. -UEFI is clunky -Auto-overclocks not just your CPU but all of your components in the system out of the box (a lot of mobo companies are doing this now and I hate it!) Overall Review: This review for ASRock review rebate program. I picked this mobo up despite not being much of an AsRock mobo fan. I own one in…

    Helpful(0) Unhelpful(0)You have already voted this
  7. Luan V.

    Pros: Post code Power & reset button Same vrm as steel legend, but vrm heat sink got connected heat pipe for better vrm cooling. Overall Review: Good MOBO. Worked right out of the box. Good price for all the features.

    Helpful(0) Unhelpful(0)You have already voted this
  8. Chris P.

    Pros: Worked wonderfully out of the box with my 5900X and 4x8GB Samsung B-Die Memory Packaged very well with foam around the board to protect edge connectors. I wish more manufacturers did this. I’ve only ever seen ASRock do it and it really does help prevent shipping damage to pins like RGB and fan headers. Robust manual, lots of SATA cables, extra M.2 screws. Basically, everything you may lose and need an extra. Fast post to BIOS from cold start. Seems like a small detail but you grow to…

    Helpful(0) Unhelpful(0)You have already voted this
