ASRock B550 TAICHI RAZER Edition

Original price was: $299.99.Current price is: $169.99.

(8 customer reviews)
Last updated on November 8, 2024 6:26 pm
0
Add to compare

Highest Price
$192.09 Walmart.com
September 9, 2024
Lowest Price
$169.99 Walmart.com
September 29, 2024
Current Price
$169.99 Newegg.com
November 8, 2024
Since September 9, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: ASRock B550 TAICHI RAZER Edition AM4 AMD B550 SATA 6Gb/s ATX AMD Motherboard - $169.99

Specification: ASRock B550 TAICHI RAZER Edition

Product
Brand

Model

B550 TAICHI RAZER Edition

Product Type
Type

AMD

Specification
Best Seller Ranking

#69 in AMD Motherboards

Onboard USB

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)

Audio Channels

7.1 Channels

LAN Chipset

Killer E3100X

Max LAN Speed

10/100/1000/2500Mbps

Wireless LAN

Killer AX1650x 802.11ax WiFi ModuleIEEE802.11a/b/g/n/ax

Bluetooth

Bluetooth 5.1

Back IO Ports

2 x Antenna Ports1 x HDMI Port1 x DisplayPort 1.41 x Optical SPDIF Out Port1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)4 x USB 3.2 Gen1 Ports (Supports ESD Protection)* Ultra USB Power is supported on USB3_1_2 ports.* ACPI wake-up function is not supported on USB3_1_2 ports.2 x USB 2.0 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)1 x Clear CMOS Button1 x BIOS Flashback ButtonHD Audio Jacks: Rear Speaker, Central, Bass, Line in, Front Speaker, Microphone (Gold Audio Jacks)

Other Connectors

1 x Power LED and Speaker Header2 x RGB LED Headers* Support in total up to 12V/3A, 36W LED Strip.2 x Addressable LED Headers* Support in total up to 5V/3A, 15W LED Strip.1 x CPU Fan Connector (4-pin)* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.* CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.1 x Front Panel Audio Connector (15µ Gold Audio Connector)1 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED1 x Clear CMOS Button

Onboard Video Chipset

Supported only by CPU with integrated graphic

Form Factor

ATX

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin ATX Power Connector (Hi-Density Power Connector)2 x 8-pin 12V Power Connectors (Hi-Density Power Connector)

Windows 11

Supported

Features

Unique Feature:ASRock USB 3.2 Gen2- ASRock Front Panel Type C USB 3.2 Gen2 Header (10Gb/s)- ASRock USB 3.2 Gen2 Type-A Port (10Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- 50A Dr.MOS- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBKiller 2.5G LANKiller 802.11ax WiFiKiller DoubleShot ProASRock Steel Slot Gen4ASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopBIOS Feature:- 256MB AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustmentSupport CD:- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and ToolbarSoftware and UEFI:Software- ASRock Motherboard Utility (A-Tuning)- ASRock Killer LAN Software- ASRock Polychrome SYNC* These utilities can be downloaded from ASRock Live Update & APP Shop.UEFI- ASRock Full HD UEFI- ASRock Instant FlashHardware Monitor:- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, CPU VDD 1.8VOS:- Microsoft Windows 10 64-bit, 11 64-bitCertifications:- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Package Contents

Accessories:- Quick Installation Guide, Support CD- 4 x SATA Data Cables- 1 x ASRock WiFi 2.4/5 GHz Antenna- 1 x ASRock Screwdriver- 2 x Screws for M.2 Sockets- 2 x Standoffs for M.2 Sockets

Audio Chipset

Realtek ALC1220

SATA RAID

0/1/10

CPU Socket Type

AM4

Chipset

AMD B550

Number of Memory Slots

4x288pin (DDR4)

Memory Standard

2133, 2400, 2667, 2933, 3200, 3466(OC), 3600(OC), 3733(OC), 3800(OC), 3866(OC), 4000(OC), 4133(OC), 4200(OC), 4266(OC), 4333(OC), 4400(OC), 4466(OC), 4533(OC), 4600(OC), 4666(OC), DDR4 4733(OC)

Channel Supported

Dual Channel

M.2

1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (with Vermeer and Matisse) or Gen3x4 (32Gb/s) (with Renoir)*1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** Supports NVMe SSD as boot disks.* Supports ASRock U.2 Kit.

ECC Supported

Yes

Buffer Supported

Un-buffered

PCI Express 4.0 x16

2 x PCI Express 4.0 x16** Actual support may vary by CPU.* Supports NVMe SSD as boot disks.

PCI Express 3.0 x16

1 x PCI Express 3.0 x16** If PCIE2 or PCIE4 is occupied, PCIE5 will downgrade to x2 mode.* Supports NVMe SSD as boot disks.

PCI Express x1

2 x PCI Express 3.0 x1

Other Slots

1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)15µ Gold Contact in VGA PCIe Slot (PCIE1)

SATA 6Gbs

8 x SATA 6Gb/s

Date First Available

November 24, 2020

CPU Type Support

3000 Series Processors** Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G., 4000 G-Series, Supports AMD Ryzen 5000 Series

Max Memory Supported

128GB

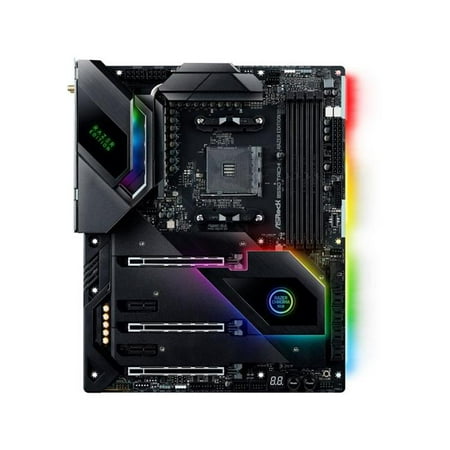

Photos: ASRock B550 TAICHI RAZER Edition

8 reviews for ASRock B550 TAICHI RAZER Edition

2.1 out of 5
2
0
0
1
5
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Griffin

    Overall Review: The RGB controller on my motherboard, presumably, came broken. Because all the lights it tries to control flash random colors uncontrollably, including just the lights built into the board, even when nothing else is plugged in. Beyond that, each header can only control a maximum of 80 LEDs, even when an external powered splitter is used… which I couldn’t find in the marketing and should be stated up front. They expect you to either control two ARGB fans up to 40 LEDs or two…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Frustrated Customer

    Pros: Asthetics (If they worked) Cons: Poor software support Overall Review: Look, the main selling point of this motherboard is its RGB functionality…when that RGB functionality doesn’t work as advertised then this board becomes practically pointless. When it first arrived, RGB was broken and flickering…ASRock replied above with a “fix” which worked, HOWEVER, you cannot control RAM. When I posted on Reddit PRIOR TO PURCHAING, ASRock ensured me that using Polychrome would work as the…

    Helpful(0) Unhelpful(0)You have already voted this
  3. Paul N.

    Pros: Great looking board. Cons: RGBs will not turn off when computer is shut down or put to sleep. I’ve tried everything and even called Asrock support. They were zero help and said the board is defective. So I sent back the motherboard and reordered the same motherboard. So after I reinstalled the new motherboard it had a new problem. You cant control the RGB with the razer software but the lights will shut off when the computer is shut down. So I seen Asrock support reply to a reviewer…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Christopher Odom

    Pros: The lighting for sure looks amazing and ties right into my razer ecosystem. Lots of bios options Everything worked right out the box no problems Cons: Manual can be confusing at times Only 1 sata m.2 port Overall Review: Overall very quality board, would purchase again , perfect if you love razer

    Helpful(0) Unhelpful(0)You have already voted this
  5. Anonymous

    Overall Review: I would definitely recommend this and would buy again! It has lots of useful features and has a appealing sleek look that is complimented well by the colorful RGB. This is now my second ASRock Motherboard, my first time building my own PC and I haven’t been disappointed.

    Helpful(0) Unhelpful(0)You have already voted this
  6. nevvermind

    Pros: theres a lot of lights so youre case definitely wont be dark, Cons: You cant control the lights or turn them off Overall Review: The lights are fine until my razer synapse app loads then it completely overwrites the light settings. I have seen some past reviews and other people have had same problem. The “FIX” that is supposed to help this isnt even available anymore. When I try to open the document it says it no longer exists. If there is not a new fix then this motherboard sucks and…

    Helpful(0) Unhelpful(0)You have already voted this
  7. Anonymous

    Overall Review: First of all, I’ve updated the 1111 firmware! Broken and buggy RGB. Sometimes my case fans which connected to the addressable rgb header suddenly flicking like crazy, razer synapse stop working whenever it happens. Sometimes rgb just won’t sync. Sometimes the fans won’t light up at all! To temporarily fix it when it happens, I’ll need to go to bios and press restore rgb in order to reset the setting. Totally disappointed!

    Helpful(0) Unhelpful(0)You have already voted this
  8. Anonymous

    Pros: – Nice looking board – When it works with Razer Synapse, nicely adds to a Razer setup overall – Already worked with Ryzen 5000 series without flashing Cons: – USB ports constantly disconnect and reconnect (which causes Windows to slow down during games) – 9/10 the mobo lights won’t sync with Razer Synapse and just rainbow cycle – Endlessly trying beta BIOS and scripts to try and fix the previous two things – Much more minor, but the bottom RGB (where it says Razer Chroma) is always…

    Helpful(0) Unhelpful(0)You have already voted this
