ASRock B550 TAICHI

$159.99

(8 customer reviews)
Last updated on November 7, 2024 5:58 pm
0
Add to compare

Highest Price
$188.64 Walmart.com
July 10, 2024
Lowest Price
$159.99 Amazon.com
September 8, 2024
Current Price
$159.99 Amazon.com
November 7, 2024
Since May 21, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: ASRock B550 Taichi Supports 3rd Gen AMD AM4 Ryzen/Future AMD Ryzen Processors Motherboard - $159.99

Specification: ASRock B550 TAICHI

Product
Brand

Model

B550 TAICHI

Product Type
Type

AMD

Specification
Best Seller Ranking

#54 in AMD Motherboards

SATA RAID

0/1/10

Windows 11

Supported

Power Pin

1 x 24-pin ATX Power Connector (Hi-Density Power Connector)2 x 8-pin 12V Power Connectors (Hi-Density Power Connector)

Dimensions W x L

12.0" x 9.6"

LED Lighting

RGB

Form Factor

ATX

Other Connectors

1 x Power LED and Speaker Header2 x RGB LED Headers*2 x Addressable LED Headers**1 x CPU Fan Connector (4-pin)***1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****1 x Front Panel Audio Connector (15µ Gold Audio Connector)1 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED1 x Clear CMOS Button* Support in total up to 12V/3A, 36W LED Strip.** Support in total up to 5V/3A, 15W LED Strip.*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.*** CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.**** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.**** CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.

Onboard USB

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)

Back IO Ports

2 x Antenna Ports1 x HDMI Port1 x DisplayPort 1.41 x Optical SPDIF Out Port1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*2 x USB 2.0 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)1 x Clear CMOS Button1 x BIOS Flashback ButtonHD Audio Jacks: Rear Speaker, Central, Bass, Line in, Front Speaker, Microphone (Gold Audio Jacks)* Ultra USB Power is supported on USB3_1_2 ports.* ACPI wake-up function is not supported on USB3_1_2 ports.

Bluetooth

Supports Bluetooth 5.1 + High speed class II

Max LAN Speed

10/100/1000/2500Mbps

LAN Chipset

Intel I225-V

Audio Channels

7.1 Channels

Onboard Video Chipset

Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU** Actual support may vary by CPU.DirectX 12, Pixel Shader 5.0Shared memory default 2GB. Max Shared memory supports up to 16GB.* The Max shared memory 16GB requires 32GB system memory installed.Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllersSupports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60HzSupports DisplayPort 1.4 Input with max. resolution up to 5K (5120×2880)@120HzSupports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)Supports HDR (High Dynamic Range) with HDMI 2.1Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 PortsSupports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 PortsSupports Microsoft PlayReady

Audio Chipset

Realtek ALC1220

M.2

1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (with Matisse) or Gen3x4 (32Gb/s) (with Renoir)*1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** Supports NVMe SSD as boot disks* Supports ASRock U.2 Kit

SATA 6Gbs

4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug4 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug

Other Slots

1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)15µ Gold Contact in VGA PCIe Slot (PCIE1)

PCI Express x1

2 x PCI Express 3.0 x1 Slots

PCI Express 4.0 x16

AMD Ryzen series CPUs (Matisse)- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen4x16 (PCIE1), dual at Gen4x8 (PCIE1), Gen4x8 (PCIE3), triple at Gen4x8 (PCIE1), Gen4x8 (PCIE3), Gen3x4 (PCIE5))*AMD Ryzen series APUs (Renoir)- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen3x16 (PCIE1), dual at Gen3x8 (PCIE1), Gen3x8 (PCIE3), triple at Gen3x8 (PCIE1), Gen3x8 (PCIE3), Gen3x4 (PCIE5))* If PCIE2 or PCIE4 is occupied, PCIE5 will downgrade to x2 mode.* Supports NVMe SSD as boot disks.

Channel Supported

Dual Channel

Memory Standard

2133 ECC & non-ECC, 2400, 2667, 2933, 3200, 3466(OC), 3600(OC), 3733(OC), 3800(OC), 3866(OC), 4000(OC), 4133(OC), 4200(OC), 4266(OC), 4333(OC), 4400(OC), 4466(OC), 4533(OC), 4600(OC), 4666(OC), AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC), un-buffered memory, un-buffered memory*AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)

Number of Memory Slots

4x288pin (DDR4)

Chipset

AMD B550

CPU Socket Type

AM4

Date First Available

March 16, 2022

CPU Type Support

future AMD Ryzen Processors** Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASRock website for CPU support list., Supports 3rd Gen AMD AM4 Ryzen

Max Memory Supported

128GB** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

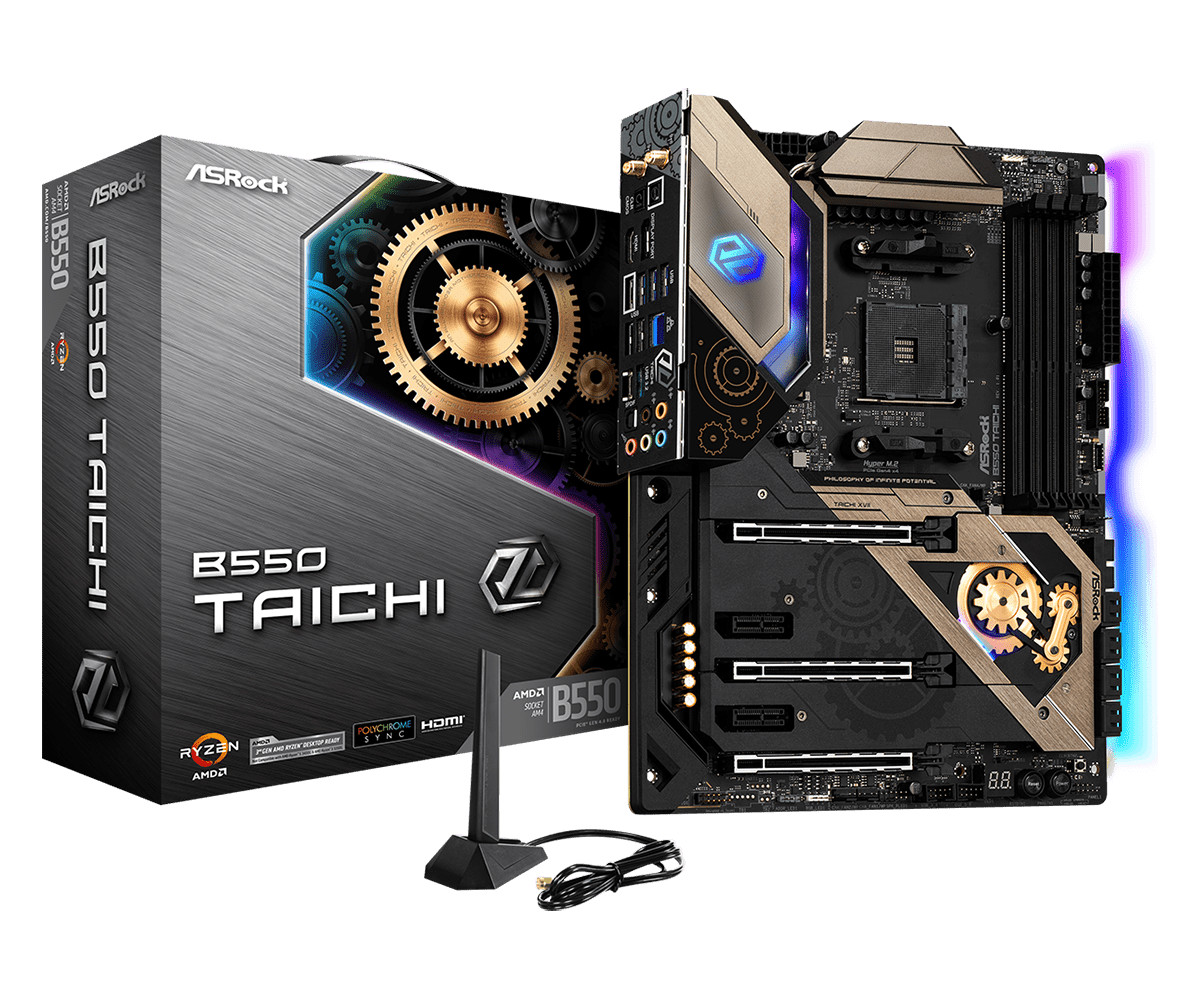

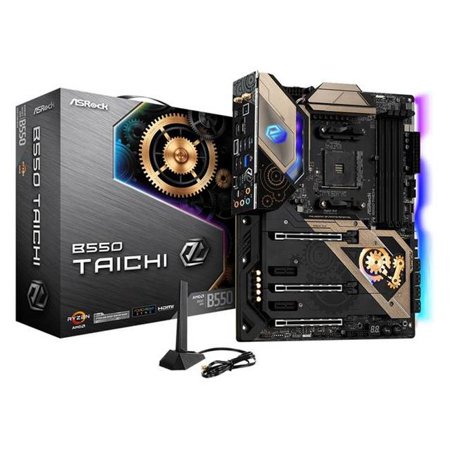

Photos: ASRock B550 TAICHI

8 reviews for ASRock B550 TAICHI

4.9 out of 5
7
1
0
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Kris M.

    Pros: – 16 power phase – USB C header for case – Tough Aluminum heatsink – Nichicon caps Cons: – None so far Overall Review: This review is for ASRock review rebate program. I just received it and just got it all setup. So far so good. I was due for a new computer build and this is the mobo that I decided on.

    Helpful(0) Unhelpful(0)You have already voted this
  2. James T.

    Pros: This is way more board than i even know what to do with. But i only build once every 5-10 years, so this beast will last me. Very Sturdy and rigid! Was never one for RGB lights, but now its very cool how they glow Plenty of fan ports throughout USB-C front port is a nice upgrade from my old mobo without me OCing, the A-Tuning already has my Ryzen 5 3600 running at 4.0 paired beautifully with my Taichi OC+ GPU, self boosting to 1990+ VRM works beyond belief mobo never hotter than 35C…

    Helpful(0) Unhelpful(0)You have already voted this
  3. Rezwan

    Cons: – Overall Review: The B550 Taichi is an excellent board with a lot of premium features within its bios, interface, etc. Chipset thermals are really good, hovering about 35 C idle and 60-70 C under load. This board definitely competes (if not, on par) with its X570 counterpart, and delivers solid performance. It also has great lighting and overall a nice board aesthetic. However, ever since I upgraded to this motherboard, my system would constantly reboot itself and not boot unless I do…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Jared K

    Pros: -Beautiful design -High end features Overall Review: Just received my b550 taichi motherboard just in time for my new pc build and to submit my review to get my rebate submitted. After reviewing both this and the x570 Taichi I’m glad I decided to go with this B550. Yes both are almost identical in cost but I felt like this motherboard had more to offer in terms of features. “This review for ASRock review rebate program.”

    Helpful(0) Unhelpful(0)You have already voted this
  5. Giovanni H.

    Pros: Metal pcie slots 2.5gb ethernet/ wifi Rgb Pcie 4.0 nvme Heavy overclocking support (thich pcb layers, 16 phases, 2 cpu connectors) Cons: Motherboard bios a bit unintuitive for overclocking, but not terrible. Overall Review: Nice, quality motherboard. It has everything most users will need and a bunch of nice to haves. I love the metal pcie slots, they were needed for the extremely heavy rtx 3090 in my machine. Pcie 4.0 on nvme is definatley neat. A bunch of the other features I will…

    Helpful(0) Unhelpful(0)You have already voted this
  6. Ryan

    Pros: Has all the features you’re looking for in a higher end MOBO Easy to navigate BIOS Enough said Cons: None really Overall Review: Solid MOBO. Had to buy a new AMD CPU, but that was such a small gripe I couldn’t put it in the cons section. I havent found anything wrong at all. Never owned an ASRock MOBO (usually stick with ASUS and Gigabyte) and I can say I really like the build they put together here and I can honestly say they have made me a fan of their products.

    Helpful(0) Unhelpful(0)You have already voted this
  7. Hoan L.

    Pros: +Out of the box looks and feels very sturdy and heavy. +It has enough fan/argb/rgb/usb 2.0/3.0 headers for your needs. +Nice added RGB can be configured via app. +It has tons of features: Wifi-6, Bios flash button, etc. Cons: None Overall Review: Upon receiving the product, the box was significantly bigger than my previous motherboard’s box. This is an upgrade from the MSI B550 Gaming Edge Wifi. And it looks so much more sleek and pretty. I bought this one on sale and it was not ready…

    Helpful(0) Unhelpful(0)You have already voted this
  8. Anonymous

    Pros: – Came in good condition – Works as advertised Cons: Default settings seem like they’re for an older generation. – Safe boot enabled – Secure boot disabled – TPM (required for windows 11) disabled and required BIOS update to enable The instructions & design to enable TPM were pretty straightforward, but even after enabling in the BIOS windows still didn’t recognize it, and I spent ~3 hours trying to google/debug. I never did figure out the root problem, but a reddit thread suggested…

    Helpful(0) Unhelpful(0)You have already voted this
