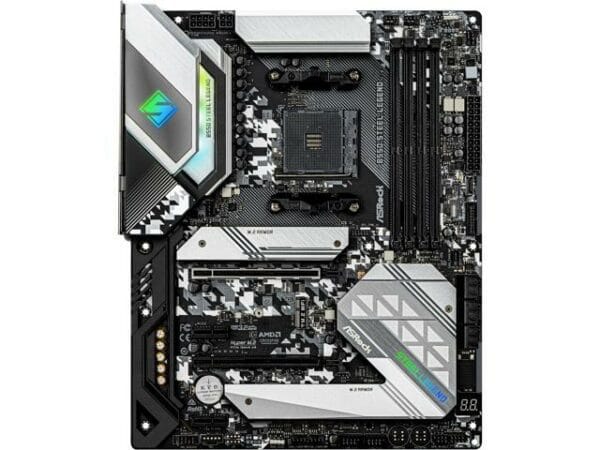

ASRock B550 STEEL LEGEND

$139.99

(8 customer reviews)
Last updated on November 8, 2024 9:48 am
0
Add to compare

Highest Price
$157.99 Walmart.com
May 15, 2024
Lowest Price
$107.64 Amazon.com
May 21, 2024
Current Price
$139.99 Amazon.com
November 8, 2024
Since May 14, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: ASRock B550 Steel Legend Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors Motherboard - $139.99

Specification: ASRock B550 STEEL LEGEND

Product
Brand

Model

B550 STEEL LEGEND

Product Type
Type

AMD

Specification
Best Seller Ranking

#45 in AMD Motherboards

SATA RAID

0/1/10

Audio Chipset

Realtek ALC1220

Audio Channels

7.1 Channels

LAN Chipset

Dragon RTL8125BG

Max LAN Speed

10/100/1000/2500Mbps

Back IO Ports

2 x Antenna Mounting Points1 x PS/2 Mouse/Keyboard Port1 x HDMI Port1 x DisplayPort 1.41 x Optical SPDIF Out Port1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)2 x USB 3.2 Gen1 Ports (Supports ESD Protection)4 x USB 2.0 Ports (Supports ESD Protection)*1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Rear Speaker, Central, Bass, Line in, Front Speaker, Microphone (Gold Audio Jacks)* Ultra USB Power is supported on USB_34 ports.* ACPI wake-up function is not supported on USB_34 ports.

Onboard USB

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

Onboard Video Chipset

Supported only by CPU with integrated graphic

Other Connectors

1 x SPI TPM Header1 x Power LED and Speaker Header2 x RGB LED Headers*2 x Addressable LED Headers**1 x CPU Fan Connector (4-pin)***1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****1 x Front Panel Audio Connector (15µ Gold Audio Connector)1 x Dr. Debug with LED* Support in total up to 12V/3A, 36W LED Strip.** Support in total up to 5V/3A, 15W LED Strip.*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**** CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.***** CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin ATX Power Connector (Hi-Density Power Connector)1 x 8-pin 12V Power Connector (Hi-Density Power Connector)1 x 4-pin 12V Power Connector (Hi-Density Power Connector)

Windows 11

Supported

Features

Unique Feature:ASRock USB 3.2 Gen2- ASRock USB 3.2 Gen2 Type-A Port (10Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- 50A Dr.MOS- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCB- 2oz Copper PCB2.5G LANASRock Steel Slot Gen4ASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopBIOS:- 256MB AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustmentSoftware and UEFI:Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock Full HD UEFI- ASRock Instant Flash* These utilities can be downloaded from ASRock Live Update & APP Shop.Support CD:- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and ToolbarHardware Monitor:- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, CPU VDD 1.8VOS:- Microsoft Windows 10 64-bit, 11 64-bitCertifications:- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Package Contents

Accessories:- Quick Installation Guide, Support CD- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets- 2 x Standoffs for M.2 Sockets

Form Factor

ATX

M.2

1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)*1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** Supports NVMe SSD as boot disks.* Supports ASRock U.2 Kit.

Channel Supported

Dual Channel

SATA 6Gbs

6 x SATA 6Gb/s** M2_2 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled.

CPU Socket Type

AM4

Chipset

AMD B550

Number of Memory Slots

4x288pin (DDR4)

Memory Standard

2133 (AMD Ryzen series APUs (Picasso) support), 2133 (AMD Ryzen series CPUs (Vermeer & Matisse), 2400, 2667, 2933, 3200, 3200(OC), 3466(OC), 3600(OC), 3733(OC), 3800(OC), 3866(OC), 4000(OC), 4133(OC), 4200(OC), 4266(OC), 4333(OC), 4400(OC), 4466(OC), 4533(OC), 4600(OC), 4666(OC), APUs (Cezanne & Renoir) support)DDR4 3600+(OC), DDR4 4733(OC)

ECC Supported

Cezanne and Renoir), ECC is only supported with PRO CPUs., Yes* For Ryzen Series APUs (Picasso

Buffer Supported

Un-buffered

PCI Express 4.0 x16

1 x PCI Express 4.0 x16** Actual support may vary by CPU.* Supports NVMe SSD as boot disks.

PCI Express 3.0 x16

1 x PCI Express 3.0 x16** Supports NVMe SSD as boot disks.

PCI Express x1

2 x PCI Express 3.0 x1

Other Slots

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module15µ Gold Contact in VGA PCIe Slot (PCIE1)

Date First Available

June 12, 2020

CPU Type Support

3000 G-Series Processors ** Not compatible with AMD Athlon Processors.* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASRock website for CPU support list., 3000 Series, 4000 G-Series, 5000 G-Series, Supports AMD Ryzen 5000 Series

Max Memory Supported

128GB

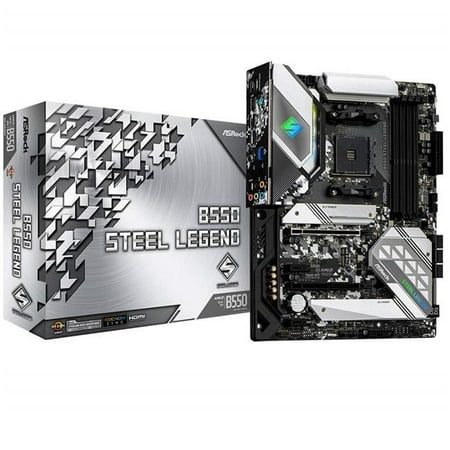

Photos: ASRock B550 STEEL LEGEND

8 reviews for ASRock B550 STEEL LEGEND

4.0 out of 5
6
0
0
0
2
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Geoffrey J.

    Pros: Full disclosure: “This review for ASRock review rebate program.” But don’t worry, I’ll shoot straight with you. As the title says this is for use in an unRaid/Plex Server and though, I have used boards from competitors, this is my first journey with ASRock. So far, so good. It booted up straight out of the box and accepted my corsair memory’s xmp, which is a marked difference with my experience with my old Asus Strix B350-F board. Overall: -The Rgb and general look of the board is…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Ervin Paul Apostol

    Pros: – Premium feel from the packaging – it includes a a velcro which is ver neat for cable management Cons: – hard to use the xmp profile at first but updating the bios fixed it (this should be a con who only has this as a pc) Overall Review: It’s a good motherboard and will most likely buy it for another build! That RGB looks really good too but I think they should fix the software for it.

    Helpful(0) Unhelpful(0)You have already voted this
  3. Ryan K

    Pros: For me this motherboard was plug and play. It came with BIOS version 1.2 which is the one needed for the new 5000 series processors. The BIOS is easy to configure and to navigate. It also has some awesome tools that you can add within Windows to configure PWM control, RGB, Performance, etc. It has been a breeze to say the least. Cons: No bios flashback via button on IO and USB. I didn’t end up needing this, but it is a nice feature in case it ever is needed. Overall Review: I would…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Anonymous

    Pros: – Board is very affordable for entry level Cons: – BIOS is lackluster – RAM Slotting is very very picky – Board has seemingly failed after 1-2 months of operation Overall Review: I was very pleased with the board overall, at first. I actually recommended this board to a friend, who I built a PC for. However, one night I got a random screen freeze, I figured just a memory temp issue, then rebooted, problem though was after reboot I had a black screen. I then knew something was wrong. I…

    Helpful(0) Unhelpful(0)You have already voted this
  5. David Bertram

    Pros: None. Cons: Did not work. Overall Review: Completely dead on arrival. The LEDs lit up, but there seemed to be no power delivered to other parts of the board – no display and fans didn’t spin. From reading other reviews I’m far from the only one with this problem.

    Helpful(0) Unhelpful(0)You have already voted this
  6. Martin C.

    Pros: Worked with Ryzen 5000 out of the box Good power delivery Very good USB connection options AC1220 codec Cons: No Flashback, so if it had not come with a 5000-series compatible BIOS, would probably have needed a 3000-series processor to update first SATA ports right under end of video card, making it difficult to get at them without removing it completely (but at least they’re angled 90 degrees) Plastic piece on front USB3 type A connector isn’t stuck to the board; comes off the pins…

    Helpful(0) Unhelpful(0)You have already voted this
  7. Anonymous

    Pros: Stable, looks great, great features/expand ability, relatively fast BIOS update releases Cons: Only one full speed M.2 PCIE 4.0 nVME slot, second slot is half speed M.2 PCIE 3.0 nVME slot Overall Review: Ive had this motherboard since December and its been fantastic for me. I was able to boot my 5900X and update my BIOS and its been stable since through multiple BIOS updates. ASRock has been good about releases AMD AGESA updates quickly and Im generally satisfied with my purchase

    Helpful(0) Unhelpful(0)You have already voted this
  8. iggyx2

    Pros: I like that it boots. It really works great with 5600X and G.Skill 3600 cl 14 ram after some voltage tweaking and manual OC. Actually lowering CDDO voltages did a trick running higher speed RAM. Zen 3 architecture is specific. Plenty of 4-pin fan headers. I was going to get X570 Legend but B550 was on sale Cons: Only 1 gen 4 m.2 slot I wish the values in OC Tweker would have a selection to choose from after clicking on Auto so you can at least pick the next value. Instead once you…

    Helpful(0) Unhelpful(0)You have already voted this
