ASRock B550 Phantom Gaming

Original price was: $124.99.Current price is: $89.99.

(8 customer reviews)
Last updated on November 8, 2024 1:05 pm
0
Add to compare

Highest Price
$89.99 Walmart.com
May 22, 2024
Lowest Price
$48.99 Target.com
June 12, 2024
Current Price
$89.99 Amazon.com
November 8, 2024
Since May 22, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: ASRock B550 Phantom Gaming 4 AC Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors Motherboard - $89.99

Specification: ASRock B550 Phantom Gaming

Product
Brand

Model

B550 Phantom Gaming 4

Product Type
Type

AMD

Specification
Best Seller Ranking

#23 in AMD Motherboards

SATA RAID

0/1/10

Audio Chipset

Realtek ALC1200

Audio Channels

7.1 Channels

LAN Chipset

Realtek RTL8111H

Max LAN Speed

10/100/1000Mbps

Back IO Ports

2 x Antenna Ports1 x PS/2 Mouse/Keyboard Port1 x HDMI Port6 x USB 3.2 Gen1 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in, Front Speaker, Microphone

Onboard USB

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Onboard Video Chipset

Supported only by CPU with integrated graphic

Other Connectors

1 x COM Port Header1 x SPI TPM Header1 x Power LED and Speaker Header2 x RGB LED Headers*2 x Addressable LED Headers**1 x CPU Fan Connector (4-pin)***1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****1 x Front Panel Audio Connector* Support in total up to 12V/3A, 36W LED Strip.** Support in total up to 5V/3A, 15W LED Strip.*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.**** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin ATX Power Connector1 x 8-pin 12V Power Connector1 x 4-pin 12V Power Connector

Windows 11

Supported

Features

Gaming Armor:Memory- 15µ Gold Contact in DIMM SlotsCooling- XXL Aluminum Alloy HeatsinkAudio- Nahimic AudioUnique Feature:ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBASRock Steel Slot Gen4ASRock Hyper M.2 (PCIe Gen4x4)ASRock POST Status Checker (PSC)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopBIOS:- 256MB AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustmentSoftware:- ASRock Motherboard Utility (Phantom Gaming Tuning)- ASRock Polychrome SYNC- ASRock Key Master- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Instant Flash* These utilities can be downloaded from ASRock Live Update & APP Shop.Support CD:- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and ToolbarHardware Monitor:- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDPOS:- Microsoft Windows 10 64-bit, 11 64-bitCertifications:- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Package Contents

Accessories:- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 3 x Screw for M.2 Socket

Form Factor

ATX

M.2

1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)*1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** Supports NVMe SSD as boot disks.* Supports ASRock U.2 Kit.

Channel Supported

Dual Channel

SATA 6Gbs

6 x SATA 6Gb/s* M2_3 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled.

CPU Socket Type

AM4

Chipset

AMD B550

Number of Memory Slots

4x288pin (DDR4)

Memory Standard

2133 (AMD Ryzen series APUs (Cezanne & Renoir))*DDR4 4533+(OC), 2133 (AMD Ryzen series APUs (Picasso)), 2133 (AMD Ryzen series CPUs (Vermeer & Matisse))DDR4 3400+(OC), 2400, 2667, 2933, 3200, 3200(OC), 3466(OC), 3600(OC), 3733(OC), 3800(OC), 3866(OC), 4000(OC), 4133(OC), 4200(OC), 4266(OC), 4333(OC), 4400(OC), 4466(OC), 4533(OC), 4600(OC), 4666(OC), DDR4 4733(OC)

ECC Supported

Cezanne and Renoir), ECC is only supported with PRO CPUs., Yes* For Ryzen Series APUs (Picasso

Buffer Supported

Un-buffered

PCI Express 4.0 x16

1 x PCI Express 4.0 x16* Actual support may vary by CPU.* Supports NVMe SSD as boot disks.

PCI Express 3.0 x16

1 x PCI Express 3.0 x16* Support x4 mode.* Supports NVMe SSD as boot disks.

PCI Express x1

2 x PCI Express 3.0 x1

Other Slots

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

Date First Available

June 12, 2020

CPU Type Support

3000 G, 3000 Series Processors** Not compatible with AMD Athlon Processors.* Refer to ASRock website for CPU support list., 4000 G, 5000, Supports AMD Ryzen 5000 G

Max Memory Supported

128GB

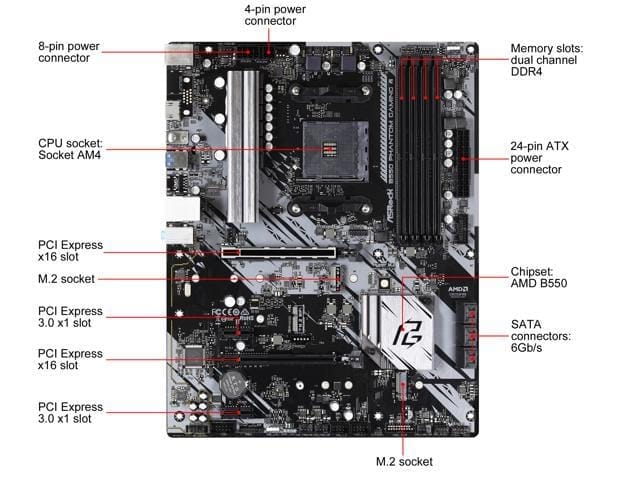

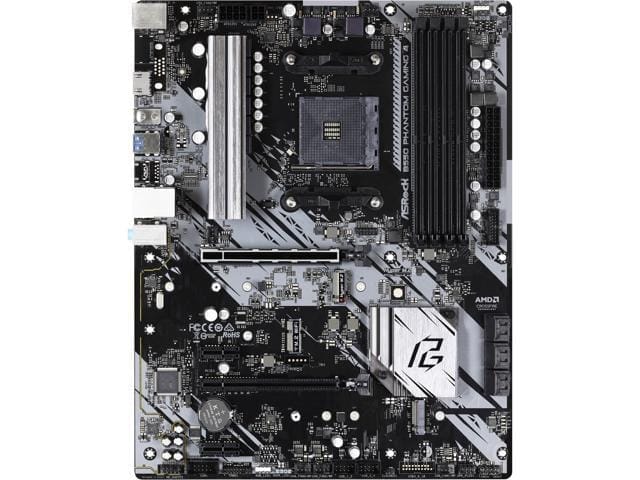

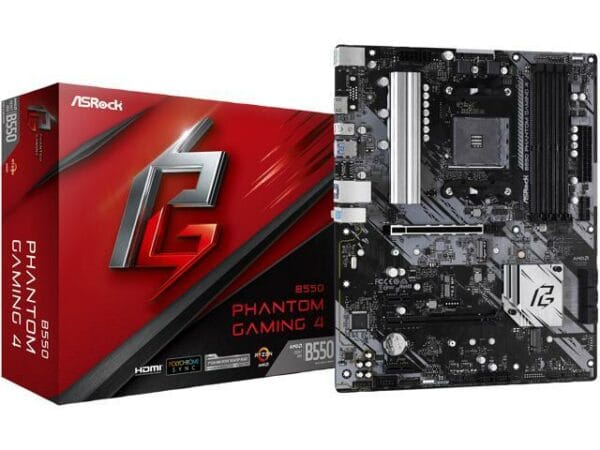

Photos: ASRock B550 Phantom Gaming

8 reviews for ASRock B550 Phantom Gaming

3.9 out of 5
5
0
1
1
1
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Jeff

    Pros: -Easy to access the BIOS/UEFI configurations -Most slots are easy to access with a couple of restrictions Cons: -Long BIOS post time, average is about 13 seconds before booting to windows -The A1 memory slot can be difficult to access with a stock Ryzen cooler in place, it almost bends the stick if it’s not done carefully which is why I used the adjacent slot -Using M2 for an SSD disables 3 SATA ports. Not a huge issue if you only have a few connectors but could have been designed to…

    Helpful(0) Unhelpful(0)You have already voted this
  2. M. Y.

    Pros: lots of ports for a budget Mobo PCI gen 4 looks good (neutral color theme ) recognized my rams XMP profile and ran it without problems Cons: budget VRMs and cooling (not that it maters if you are not an avid over clocker , I think it will handle my 5600x just fine no usb 3.2 gen 2 Overall Review: great budget mobo , solid build quality , lots of ports and sockets , one thing to note is that even though I got it with bios 1.1 (doesn’t support Ryzen 5000) it posted just fine with my…

    Helpful(0) Unhelpful(0)You have already voted this
  3. Brandon W.

    Overall Review: I have reached out to their support team multiple times and each time I have been ignored. Asrock shipped me a broken motherboard and hasnt done anything about it. I purchased this back in December 2020, and as of April 8, still havent heard anything. Very disappointed especially since I was ignored. This purchased has turned me off to asrock and makes them an unreliable brand. Will never buy an asrock product again.

    Helpful(0) Unhelpful(0)You have already voted this
  4. Anonymous

    Pros: -stable while it lasted – good compatibility Cons: M.2 slot stopped working after 5 month Overall Review: Swapped the NVME to an adapter and inserted into PCIE lot, no issue with NVME. Emailed support about the broken M.2 slot, no reply.

    Helpful(0) Unhelpful(0)You have already voted this
  5. Anonymous

    Overall Review: Definitely recommend for budget builds.

    Helpful(0) Unhelpful(0)You have already voted this
  6. Ur Mom

    Pros: This motherboard is great for budget builds it has all the necessary features to get you started and it has support for the new 5000s series from AMD and 30 series from Nvidia really great motherboard for the price. Overall Review: Overall i think if you want some taste of those nice expensive motherboards without breaking the bank this is the best motherboard for you!

    Helpful(0) Unhelpful(0)You have already voted this
  7. Anonymous

    Overall Review: I couldn’t figure out why my Win10 USB wasn’t booting until I saw the BIOS version and realized it didn’t support my Ryzen 5600X. Fortunately the BIOS screen came up without issue and it was a simple matter to update the bios off of a fat32 USB stick. Once the BIOS was updated it booted the windows installer without issue. Selecting XMP for the memory allowed it to run my 4x8GB Crucial Ballistix at full timings at 3600MHz without issue.

    Helpful(0) Unhelpful(0)You have already voted this
  8. Anonymous

    Pros: Lots of build space, reinforced PCI4 slot lots of drive connections. Cons: The onboard bios chip brings a sticker with the bios version. The same was blacked out in my device. The book makes no mention of bios version just the copyright year 2020. Overall Review: I lost sleep as this order was a gift. I had never owned AMD hardware and I was worried about booting up with the ryzen 5600g and for it to not post. Im \(^O^)/happy to report that the install was successful I had no need of a…

    Helpful(0) Unhelpful(0)You have already voted this
