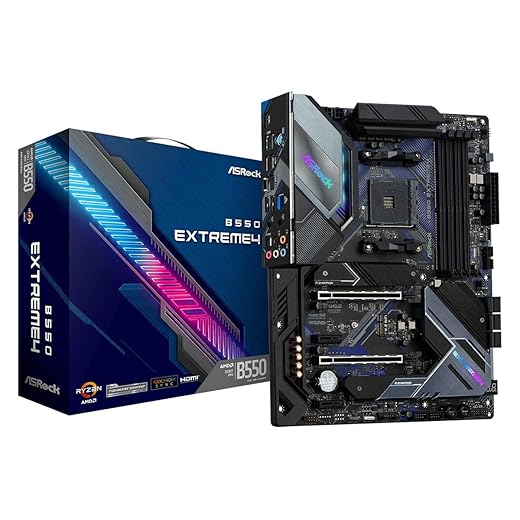

ASRock B550 EXTREME4

$171.44

(8 customer reviews)
Last updated on November 8, 2024 8:29 am
0
Add to compare

Highest Price
$171.07 Walmart.com
November 8, 2024
Lowest Price
$164.51 Walmart.com
May 22, 2024
Current Price
$171.44 Newegg.com
November 8, 2024
Since May 22, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: ASRock B550 EXTREME4 AM4 AMD B550 SATA 6Gb/s ATX AMD Motherboard - $171.44

Specification: ASRock B550 EXTREME4

Product
Brand

Model

B550 EXTREME4

Specification
Best Seller Ranking

#39 in AMD Motherboards

SATA RAID

0/1/10

Audio Chipset

Realtek ALC1220

Audio Channels

7.1 Channels

LAN Chipset

Dragon RTL8125BG

Max LAN Speed

10/100/1000/2500Mbps

Back IO Ports

2 x Antenna Ports (on I/O Panel Shield)1 x PS/2 Mouse/Keyboard Port1 x HDMI Port1 x Optical SPDIF Out Port1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)2 x USB 3.2 Gen1 Ports (Supports ESD Protection)4 x USB 2.0 Ports (Supports ESD Protection)*1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Rear Speaker, Central, Bass, Line in, Front Speaker, Microphone (Gold Audio Jacks)* Ultra USB Power is supported on USB_34 ports.* ACPI wake-up function is not supported on USB_34 ports.

Onboard USB

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

Onboard Video Chipset

Supported only by CPU with integrated graphic

Other Connectors

1 x SPI TPM Header1 x Power LED and Speaker Header2 x RGB LED Headers*2 x Addressable LED Headers**1 x CPU Fan Connector (4-pin)***1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****1 x Front Panel Audio Connector (15µ Gold Audio Connector)1 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED* Support in total up to 12V/3A, 36W LED Strip.** Support in total up to 5V/3A, 15W LED Strip.*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**** CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.***** CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.

LED Lighting

RGB

Dimensions W x L

12.0" x 9.6"

Power Pin

1 x 24-pin ATX Power Connector (Hi-Density Power Connector)1 x 8-pin 12V Power Connector (Hi-Density Power Connector)1 x 4-pin 12V Power Connector (Hi-Density Power Connector)

Windows 11

Supported

Features

Unique Feature:ASRock USB 3.2 Gen2- ASRock USB 3.2 Gen2 Type-A Port (10Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- 50A Dr.MOS- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCB- 2oz Copper PCB2.5G LANASRock Steel Slot Gen4ASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopBIOS:- 256MB AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustmentSoftware and UEFI:Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock Full HD UEFI- ASRock Instant Flash* These utilities can be downloaded from ASRock Live Update & APP Shop.Support CD:- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and ToolbarHardware Monitor:- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, CPU VDD 1.8VOS:- Microsoft Windows 10 64-bitCertifications:- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Package Contents

Accessories:- Quick Installation Guide, Support CD- 4 x SATA Data Cables- 3 x Screws for M.2 Sockets- 2 x Standoffs for M.2 Sockets

Form Factor

ATX

M.2

1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4 x4 (64Gb/s) (with Matisse) or Gen3 x4 (32Gb/s) (with Renoir)*1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x2 (16Gb/s)** Supports NVMe SSD as boot disks.* Supports ASRock U.2 Kit.

Channel Supported

Dual Channel

SATA 6Gbs

6 x SATA 6Gb/s** M2_2 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled.

CPU Socket Type

AM4

Chipset

AMD B550

Number of Memory Slots

4x288pin (DDR4)

Memory Standard

2133 (AMD Ryzen series APUs (Renoir)), 2133 (AMD Ryzen series CPUs (Matisse))DDR4 4733(OC)+, 2400, 2667, 2933, 3200, 3466(OC), 3600(OC), 3733(OC), 3800(OC), 3866(OC), 4000(OC), 4133(OC), 4200(OC), 4266(OC), 4333(OC), 4400(OC), 4466(OC), 4533(OC), 4600(OC), 4666(OC), DDR4 4733(OC)

ECC Supported

ECC is only supported with PRO CPUs., For Ryzen Series CPUs (Picasso)

Buffer Supported

Un-buffered

PCI Express 4.0 x16

1 x PCI Express 4.0 x16** Actual support may vary by CPU.

PCI Express 3.0 x16

1 x PCI Express 3.0 x16

PCI Express x1

2 x PCI Express 3.0 x1

Other Slots

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module15µ Gold Contact in VGA PCIe Slot (PCIE1)

Date First Available

June 12, 2020

CPU Type Support

Supports AMD Ryzen 3000

Max Memory Supported

128GB

Photos: ASRock B550 EXTREME4

8 reviews for ASRock B550 EXTREME4

4.9 out of 5
7
1
0
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Mark N.

    Pros: The real advantage of this motherboard is how ASRock laid out the the PCI-E lanes. You get an additional PCI-E x16 slot from the chipset where most other options at this price point won’t give you that. The VRM layout is nice too. Cons: The EFI isn’t the most intuitive or best I’ve seen. Would be nice if they added an option to disable RGB in the EFI or possibly set some basic RGB options in there. A more intuitive simple layout would also be good but I do have to admit that it does…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Enrique R.

    Overall Review: I chose this for my first computer because of its b550 future-proofing compatibility and its excellent design. It’s too early to say how well it holds up in the first category, but it outshines the competition (literally) in the second. This motherboard has so far performed excellently in every regard. It was easy to insert into the case, mainly because of the preinstalled IO shield (something I didn’t even consider when buying). This IO shield is also actually decorated in a…

    Helpful(0) Unhelpful(0)You have already voted this
  3. Benjamin H.

    Pros: Good aesthetics and decent RGB control software from my experience Plenty of io options with 7 rear USB type A, 1 type C, and a type C header on the board Built in post code display, power, and reset buttons allow for easy testing 4 total RGB headers (2 3 pin, 2 4 pin Plenty of fan headers Well laid out bios SATA ports and cables are in the optimal location to be hidden by a GPU Nice packaging Cons: Not much bad, only thing is I currently have an issue in Windows getting it to pick up…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Bob H.

    Pros: Booted off a 2600x RGB onboard errors codes Power and Reset buttons Cons: Can’t match the RGB color sceme in the product picture. Overall Review: As far as mother boards go, this is one of the best I’ve worked with. Setup was simple and I was able to boot off a 2600x to download the BIOS for my 5600x. I went with the B550 so I didn’t have to deal with the fan on the X570.

    Helpful(0) Unhelpful(0)You have already voted this
  5. Anonymous

    Pros: – Many features- Excellent price Cons: – Had to flash the bios to recognize my Ryzen 5600x (not necessarily a problem, just bringing it up so people can see it). Overall Review: – If you have issues installing windows (your installation hangs at the windows logo) then try to flash the bios to the latest version. That’s what fixed the issues for me.

    Helpful(0) Unhelpful(0)You have already voted this
  6. WILLIAM S.

    Pros: After owning this board for a year, it is one of the best Ryzen boards out there. Great RAM support, and sound setup. The board is stable, and visually stunning to look at, with plenty of various connectors. Can’t go wrong with this Motherboard. Cons: None. Overall Review: This board gets pretty frequent bios updates, which is nice.

    Helpful(0) Unhelpful(0)You have already voted this
  7. Mario S.

    Overall Review: This is my second PC my previous one was an old 4th gen i7 and doing the upgrade was kinda necessary for what I need. I absolutely love how my build looks , this ASRock b550 mobo comes well packed and by the price I got it I think it was a bang for the buck , updating the bios for a 5000 ryzen wasn’t a big problem though considering it doesn’t come with a built in USB to flash the bios like other motherboards on the market. Maybe the only negative thing is the rgb suite that…

    Helpful(0) Unhelpful(0)You have already voted this
  8. Carl K.

    Pros: 2 NVME slots with heatsinks. Easy to install. May be the most handsome of motherboards. Runs with an AM4 socket (I am using a Ryzen 3700X and 550 chipset Price is very affordable. Cons: Not a fan of the Asrock Polychrome to control RGB. Overall Review: I would highly recommend this motherboard

    Helpful(0) Unhelpful(0)You have already voted this
