ASUS Prime X570-P

$87.58

(8 customer reviews)
Last updated on November 8, 2024 8:35 pm
0
Add to compare

Highest Price
$87.58 Amazon.com
May 17, 2024
Lowest Price
$78.20 Amazon.com
May 12, 2024
Current Price
$87.58 Amazon.com
November 9, 2024
Since May 12, 2024

Didn't find the right price? Set price alert below

Set Alert for Product: ASUS Prime X570-P Ryzen 3 AM4 with PCIe Gen4, Dual M.2 HDMI, SATA 6GB/s USB 3.2 Gen 2 ATX Motherboard - $87.58

Specification: ASUS Prime X570-P

Product
Brand

Model

PRIME X570-P

Product Type
Type

AMD

Specification
Best Seller Ranking

#25 in AMD Motherboards

Audio Chipset

Realtek S1200A High Definition Audio CODEC

Package Contents

Accessories:User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x Extension cable for Addressable LED

Features

Multi-GPU Support:3rd and 2nd Gen AMD Ryzen, 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics ProcessorsSupports AMD 2-Way CrossFireX TechnologySpecial Features:ASUS 5X Protection III:- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM – Digital power design with Dr. MOS- ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention- ASUS ESD Guards – Enhanced ESD protectionASUS SafeSlot – Protect your graphics card InvestmentASUS OptiMem:- Improved DDR4 StabilityASUS EPU:- EPUAURA:- Aura RGB Strip Headers- Aura Control- Addressable Gen 2 HeaderASUS Exclusive Features:- AI Suite 3- Ai Charger- Armoury CrateASUS Quiet Thermal Solution:- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink- ASUS Fan Xpert 4ASUS EZ DIY:- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeASUS Q-Design:- ASUS Q-Slot- ASUS Q-DIMM BIOS:256MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory informationManageability:WOL by PME, PXEOperating System:Windows 10 64-bit

Windows 11

Supported

Power Pin

1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)

Dimensions W x L

12.0" x 9.6"

LED Lighting

RGB

Form Factor

ATX

Other Connectors

2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x SPI TPM header1 x COM port(s) connector(s)1 x CPU Fan connector(s) (1 x 4-pin)3 x Chassis Fan connector(s) (3 x 4-pin)1 x PCH_FAN (1 x 4-pin)1 x AIO_PUMP connector (1 x 4-pin)1 x S/PDIF out header(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Clear CMOS jumper(s)

Onboard USB

4 x USB 3.2 + 3 x USB 2.0

Back IO Ports

1 x PS/2 keyboard/mouse combo port(s)1 x HDMI1 x LAN (RJ45) port(s)2 x USB 2.03 x Audio jack(s)2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A*)* The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen Processors

Max LAN Speed

10/100/1000Mbps

LAN Chipset

Realtek RTL8111H

Audio Channels

8 Channels* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Onboard Video Chipset

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics ProcessorsVGA output support: HDMI port- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz

SATA RAID

0/1/10

M.2

3rd Gen AMD Ryzen Processors:1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support2nd Gen AMD Ryzen, 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors:1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices supportAMD X570 chipset:1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support

SATA 6Gbs

6 x SATA 6Gb/s

PCI Express x1

3 x PCIe 4.0 x1

PCI Express 4.0 x16

3rd Gen AMD Ryzen Processors1 x PCIe 4.0 x16 (x16 mode)2nd Gen AMD Ryzen Processors1 x PCIe 3.0 x16 (x16 mode)2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors1 x PCIe 3.0 x16 (x8 mode)AMD X570 chipset1 x PCIe 4.0 x16 (max at x4 mode)

Channel Supported

Dual Channel

Memory Standard

2133 MHz Memory* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* The maximum memory capacity supported vary depending on the CPU you installed., 2133 MHz Un-buffered Memory2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics ProcessorsDDR4 3200(O.C.), 2133 MHz Un-buffered Memory2nd Gen AMD Ryzen ProcessorsDDR4 3600(O.C.), 2400, 2666, 2800, 2933, 3000, 3000(O.C.), 3200, 3200(O.C.), 3400(O.C.), 3466(O.C.), 3600(O.C.), 3733(O.C.), 3866(O.C.), 3rd Gen AMD Ryzen Processors4400(O.C.), 4000(O.C.), 4133(O.C.), 4266(O.C.)

Number of Memory Slots

4x288pin (DDR4)

Chipset

AMD X570

CPU Socket Type

AM4

Date First Available

February 14, 2022

CPU Type Support

BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.

Max Memory Supported

128GB

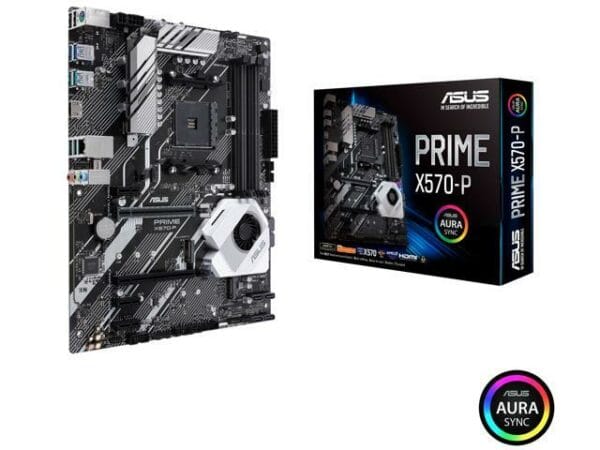

Photos: ASUS Prime X570-P

8 reviews for ASUS Prime X570-P

2.4 out of 5
1
1
1
2
3
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Dmitri A.

    Pros: -Quiet south bridge fan, which has a plug under the heat spreader, so if someone wants to, they could probably disconnect, though I haven’t bothered. -ECC RAM support, running in ECC mode via BIOS option -Looks better than in pictures (but still plain compared to other X570 boards) -Plenty of USB ports and expansion slots -4 USB 3.2, Gen 2 ports and 2 USB 3.2, Gen 1 ports, which is a lot of high-speed ports -No problems with setting up, manual is fairly clear too -Rock-stable (but, I…

    Helpful(0) Unhelpful(0)You have already voted this
  2. Alex S.

    Pros: It’s a good bored I got a bad unit. Cons: (for me) the rear audio io didn’t work. I updated everything from windows to drivers. I even reinstalled windows just to be sure (and yes I set it up to play through my headphones and I even tried a second pair). All I hear is static no actual audio. It’s a good board I’m giving it 3 eggs because of my experience. Overall Review: Overall it’s not a bad board. Some things seem cheap but it’s not a high end Mobo so I wouldn’t expect too much. Im…

    Helpful(0) Unhelpful(0)You have already voted this
  3. Blake

    Pros: Gen 4, Easy Set Up, 2 M.2 ports for price, overall price Cons: Overall design, Chipset Fan Placement!!!, PCIE locations, cramped mobo set up for ATX Overall Review: At first this motherboard was great, I personally found it easy to install and set up. The reason I decided to write this review is because the board died in 3 weeks after light use and I believe it has to do with the design of the Chipset Fan. It is located literally millimeters under a full sized graphics card and it can…

    Helpful(0) Unhelpful(0)You have already voted this
  4. Anonymous

    Pros: So far so good! Very easy setup, everything was laid out logically and worked great. I don’t build often, so I do actually use the owner’s manual, which was also fairly good for a welcome change: easy to read and decipher. Configuring my RAM took a tiny bit of work in the BIOS, but even that was simple, just enable DOCP in the AI Tweaks section, and it adjusts everything else for you. You can override settings if you want, but the settings it picked looked right on to me. I really…

    Helpful(0) Unhelpful(0)You have already voted this
  5. Anonymous

    Overall Review: I don’t know if I just got a faulty one or what, but my graphics card became stuck in the PCIE slot. Would not release no matter what I did. I ended up getting it out, but it destroyed the slot in the process. I know someone will ask, and yes the graphics card was installed correctly. The release for the card would not move, no matter what I did. I was bale to pull the card out but lost the clip and destroyed the slot. Luckily the graphics card wasn’t damaged in the process….

    Helpful(0) Unhelpful(0)You have already voted this
  6. Keith H.

    Pros: Very nice board if it worked Cons: Build quality Overall Review: My motherboard came in with half the USB ports not working. It has been sent in 2 times for repair and still didn’t work. The third time it was replace with a different repair and that came to me humming, with the m. 2 ports not working, plus scratched up. Customer service has been hell. If you can get a motherboard that works your golden. Do you like to play the lottery?? N

    Helpful(0) Unhelpful(0)You have already voted this
  7. Richard M.

    Pros: Good for the 3 months it lasted…. Cons: Useless warranty Overall Review: ASUS auto internet BIOS update killed the first one, Then they just sent me the same one back without fixing it. What a JOKE! I think the days of PC gaming are at an end! If you can’t get a good motherboard, There is no use building a PC at all. All reviews from all motherboard manufacturers are saying you will get a good one is 50/50. Good luck if you need a warrantee. They will rip you off, and leave you high…

    Helpful(0) Unhelpful(0)You have already voted this
  8. Anonymous

    Overall Review: Following Asus instructions – I entered a new memory clock speed for my RAM. This bricked me out of my boot screen. Calling customer service was a nightmare. Long wait time and a guy who answered was in a call center in India who was on a 5 second phone line delay. Their trouble shooting included asking me for a code ID on the product box which I did not keep (this was a 12 month old purchase). After repeating myself 4 times and explaining myself repeatedly – their 40 minute…

    Helpful(0) Unhelpful(0)You have already voted this
